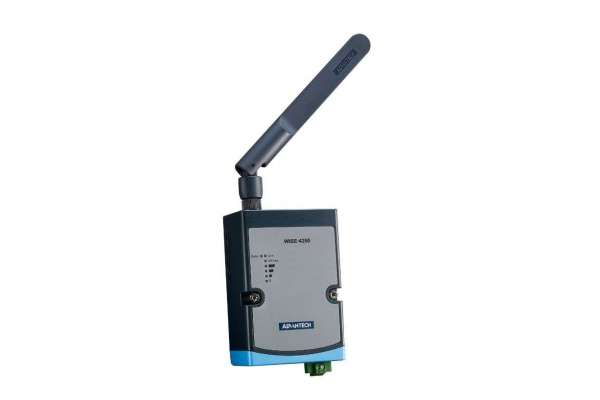

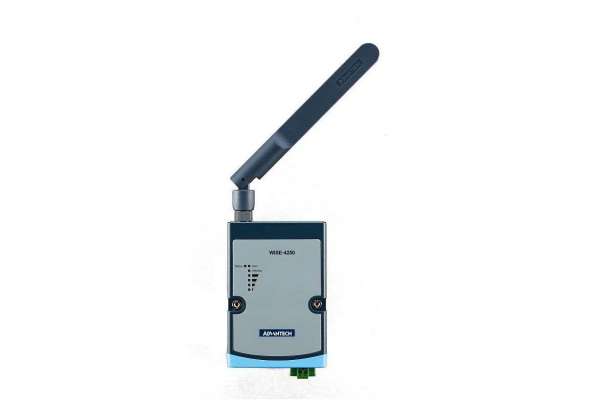

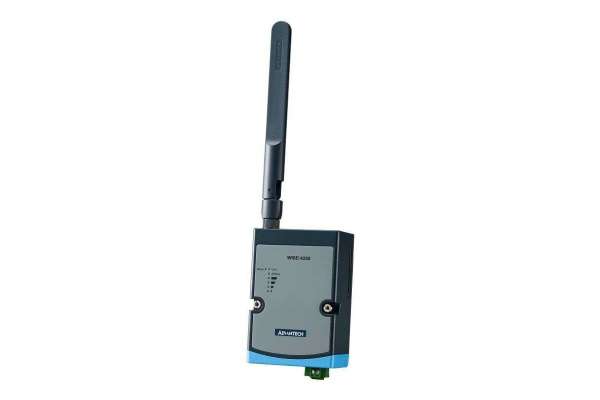

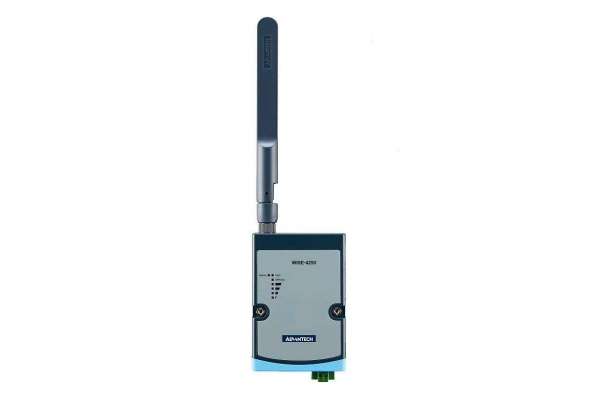

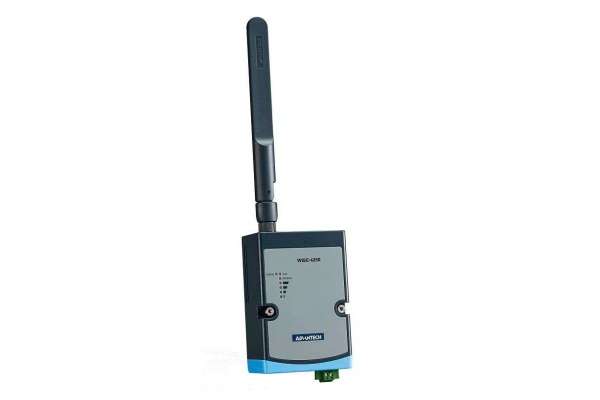

Wi-Fi 2.4/5 GHz 802.11 a/b/g/n/ac I/O and Sensor Module Advantech WISE-4250
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| WISE-4250-A | Wi-Fi 802.11a/b/g/n/ac 2.4/5G IO module | 9 713,6 |
The WISE-4250 series is an Ethernet-based wireless IoT device, compatible with various I/O and sensors and integrated with IoT data acquisition, processing, and publishing functions and can communicate with different WISE devices via P2P function. Wireless watchdog timer, smart roaming, timestamps data logger and data recovery functions can enhance connection quality and solve risks from data loss. Data and connections can also be protected via X.509 and WPA security, it can be accessed via PC and mobile devices and be published to diverse type of cloud.
- Wi-Fi Dual band 2.4/5 GHz up to 802.11 a/b/g/n/ac

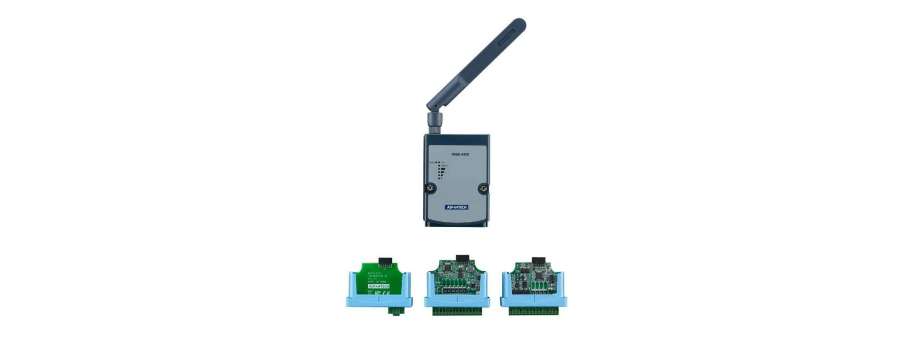

- Support interchangeable I/O and Sensor module
- Support smart roaming function
- MQTT, Modbus/TCP, SNMP, SNTP, TCP/IP, HTTP, HTTPS, UDP, and DHCP protocols supported
- Supports X.509 and up to WPA3 /TLS1.3
- UDP based AES-128 encrypted wireless P2P (Peer to Peer) function
- Easy configuration done with web UI with mobile devices and PC
- 10000+ data logger with SNTP/RTC time sync and WDT auto connection recovery
- Dropbox, WebAccess, Azure, AWS, EdgeSync 360, Aliyun cloud supported
- Supports RESTful API for IoT integration
Additional information
General |
|
| WLAN Standard | IEEE 802.11a/b/g/n/ac |
| Modulation | 802.11b : CCK(11, 5.5Mbps), DQPSK(2Mbps), BPSK(1Mbps) 802.11a/g/n/ac : OFDM |
| Transmit Power |
2.4 GHz 802.11b: 16.0 dBm ±2dBm 802.11g: 14.0 dBm ±2dBm 802.11n: 12.0 dBm ±2dBm 5 GHz 802.11a: 13.0 dBm ±2dBm 802.11n: 10.0 dBm ±2dBm 802.11ac: 8.0 dBm ±2dBm |
| Wireless Security | X.509(TLS1.2/1.3), WPA2/WPA3 Personal and Enterprise |
| Antenna | Connector: Reverse SMA Gain (Peak): 2.4G 3.64 dBi / 5G 5.65 dBi |
| Connectors | Plug-in-and-play I/O and sensor modules |
| Watchdog Timer | System (1.6 second) and Communication (programmable) |
| Certification | CE, FCC, IC, TELEC |
| Dimensions (W x H x D) | 70 x 102 x 38 mm |
| Enclosure | PC |
| Mounting | DIN 35 rail, wall, stack, and pole |
| Power Input | 10 ~ 50 VDC |
| Power Consumption | 1.6W @ 24 VDC |
| RTC Accuracy | ±2 second/day |
| MCU | ARM Cortex M33 160 MHz with 768KB RAM |
| Cloud | Dropbox, WebAccess, Azure, AWS, EdgeSync 360, Aliyun, etc. |
| Support wireless P2P (Peer to Peer) with AES-128 encryption and UDP protocol | |
| Support MQTT data recovery function | |
| Support smart roaming function and 802.11k/v/r | |
| Supports User Defined Modbus Address | |
| Power Reversal Protection | |
| Supports Data Log Function | 10000+ samples with SNTP/RTC sync time stamp |
| Supported Protocols | Modbus/TCP, TCP/IP, SNMP, SNTP, UDP, DHCP, HTTP, HTTPS, and MQTT |
| Supports RESTful Web API in JSON format | |
| Supports Web Server in HTML5 with JavaScript & CSS3 | |
| Supports System Configuration Backup and User Access Control | |
Environment |
|
| Operating Temperature | -25 ~ 70°C (-13~158°F) |
| Storage Temperature | -40 ~ 85°C (-40~185°F) |
| Operating Humidity | 10 ~ 85% RH (non-condensing) |
| Storage Humidity | 0 ~ 60% RH (non-condensing) |
