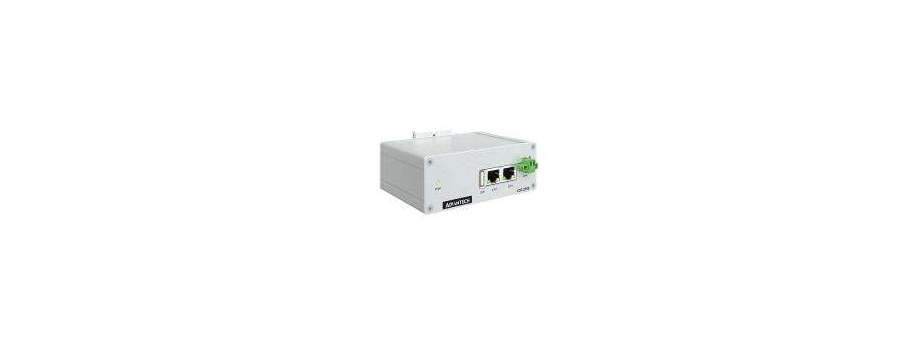

Industrial Wired Router & IoT Gateway with 2× Ethernet 10/100, EMEA, 2× ETH, USB, Metal, No ACC Advantech ICR-2701

Price and avalability

Partnumber Description Price VAT incl Avalability
ICR-2701 Industrial Router, Cat4  16 901,0
ICR-2701P Industrial Router, Cat4  14 593,1
ICR-2701A01 Industrial Router, Cat4, Accessories EU  18 089,7
ICR-2701PA01 Industrial Router, Cat4, Accessories EU  15 757,7
ICR-2701W Industrial Router, Cat4, WIFI  20 643,5
ICR-2701WP Industrial Router, Cat4, WIFI  18 335,6
ICR-2701WA01 Industrial Router, Cat4, WIFI, Accessories EU  22 248,3
ICR-2701WPA01 Industrial Router, Cat4, WIFI, Accessories EU  19 916,3

ICR-2701 is enhanced successor of the Advantech´s LAN router platform v2 that was originally introduced in 2010. Ruggedized for industrial use keeping the same dimensions, configuration possibilities and full operating system compatibility with Advantech cellular routers including support of software platforms WebAccess/VPN and WebAccess/DMP. ICR-2701 offers more powerful CPU and amply of data storage to ensure long lifecycle (software updates) with broad software customization possibilities for user. On projectbased agreement, we can optionally add a TPM 2.0 chip (Trusted Platform Module) onboard verifying router integrity to provide trusted solution as a response to increasing cybersecurity demands in many industrial and public sectors. LAN router ICR-2701 is equipped with 2× Ethernet 10/100 ports with two independent LANs/IP addresses and 1× USB 2.0 host port. Optional built-in WiFi 802.11 ac,a,b,g,n with AP, Client and Multirole modes are available. The router is powered by well-known Linux based Advantech´s operating system ICR-OS. A secure web interface allows users to configure and manage ICR-2701 from remote locations. ICR-2701 supports real-time data encryption and establishing of VPN tunnels using IPsec, WireGuard, OpenVPN, GRE, etc. It supports standard and advanced networking features like DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, and numerous other functions.

  • 1.3 GB eMMC storage to host customer SW applications
  • 2× Ethernet 10/100
  • Optional WiFi 802.11n
  • USB Host 2.0
  • Optional Metal or Plastic case
  • DIN Rail mounting
  • Wide operational temperature range
  • Backup real time clock
  • Sleep mode

Additional information

System

CPU ARM926EJ-S, 600 MHz
Memory

RAM - 128 MB

eMMC - 4096 MB

(838 MB for Router Apps, 512 MB for customer data)

Watchdog HW Watchdog
RTC Battery backup RTC
TPM* Trusted Platform Module (TPM) 2.0
Supercap* Last-gasp Supercapacitor

Interfaces

Ethernet 2× Ethernet, RJ45, 10/100 Mbps, Isolation 1.5 kV
USB 1× USB 2.0 Host Connector
Reset Button Reboot / Factory reset
LED Indicators System, ETH

Environmental

Power Supply 9 – 48 V DC (2-pin terminal block)
Consuption Idle 1.8 W / Average 1.9 W / Maximum 5.8 W
Sleep Mode Yes, 3 mW
Operating Temperature -40 to +75 °C
Storage Temperature -40 to +85 °C
Humidity 5 to 95 %
IP Cover IP30

Physical Characteristics

Dimensions (without DIN holder)
  • Metal Case: 42 × 80.3 × 113.2 mm
  • Plastic Case: 51.4 × 83.8 × 117 mm
Enclosure Metal Case with grounding screw or Plastic Case
Mounting DIN-Rail
Weight
  • Metal Case: 230 g
  • Plastic Case: 170 g

WiFi - ICR-2701Wxxxx

Antenna 1× R-SMA connector
Standards IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz
Security WPA, WPA2, WPA3, 802.1X
Modes Access Point (up to 8 clients), Station, Multirole STA & AP

Standards & Regulations

Radio EN 300 328, EN 301 893
EMC EN 301 489-1, EN 301 489-17, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, IEC 61000-6-2, IEC 61000-6-3, EN 55032
Safety EN 62368-1, IEEE 802.3
Transportation E8
National CE, UKCA
Mechanical EN 60529, EN 60068-2-27, EN 60068-2-64
Climatic EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-2-30
Environmental REACH, RoHS3, WEEE
