Capacity Touch
Extended T range
Input 12V DC
Intel Atom
IP65
Screen Size 10"
10.1" Industrial Tablet with Intel® Atom™ Processor for Windows 10 IoT and AIM Android 6.0 Advantech AIM-68
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIM-68CT-C2101000 | Промисловий захищений планшет 10I/4G/64G/WIN10/AC/G/IP65 | 118 379,0 | |
| AIM-68CT-C2104000 | Промисловий планшет Advantech AIM-68 10,1"/4G/64G/WIN10/AC/NA/GPS//HB//G/ | 145 111,0 | |
| AIM-68CT-C2106000 | Промисловий планшет 10I/4G/64G/WIN10/AC/EU/GPS//HB//G/ | 145 111,0 | |
| AIM-68CT-C2108000 | Промисловий планшет 10I/4G/64G/WIN10/AC/APAC/GPS/HB/G/ | 145 111,0 | |
| AIM-68CT-C21B1000 | Промисловий планшет 10I/4G/64G/WIN10/AC///BCR///G/ | 130 260,0 | |
| AIM-68CT-C3101000 | Промисловий планшет 10I/4G/64G/A6.0/AC/G/ | 113 924,0 | |
| AIM-68CT-C3101TBA | Промисловий планшет 10I/4G/64G/A6.0_U/AC/G/ | 16 152 200,0 | |
| AIM-68CT-C3104000 | Промисловий планшет Advantech AIM-68 10,1"/4G/64G/A6.0/AC/NA/GPS/HB/G/ | 140 656,0 |

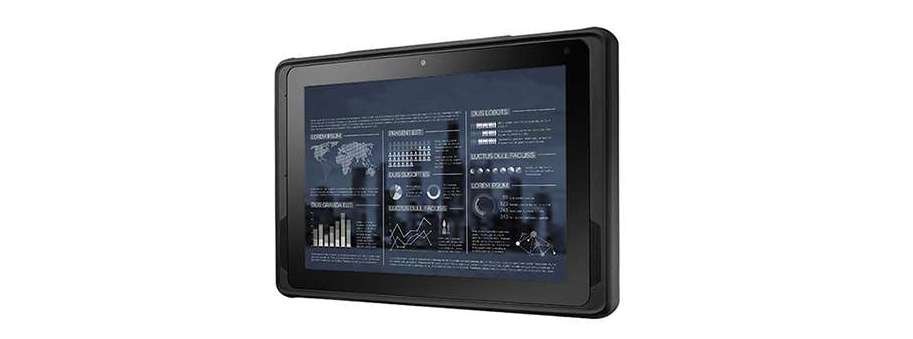

10.1" Industrial Tablet with Intel® Atom™ Processor
- Intel® Atom™ processor for Windows 10 IoT and AIM Android 6.0
- The hot-swappable battery with capacity meter that shows the remaining power and recharge status minimizes system interruptions for reliable long-duration operation
- Integrated barcode scanner supports data collection
- 10" WUXGA full HD display with scratch-resistant Corning® Gorilla® Glass 3 and multi-touch PCAP control
- WLAN, BT, NFC, 3G/4G LTE technology for seamless communications
- Optional extension include 1D/2D barcode scanner, LAN+COM module, UHF RFID module
Additional information
| Part Number | AIM-68CT-C2101000 | AIM-68CT-C2104000 | AIM-68CT-C2106000 | AIM-68CT-C2108000 | AIM-68CT-C21B1000 | AIM-68CT-C3101000 | AIM-68CT-C3101TBA | AIM-68CT-C3104000 |
Certification |
||||||||
| Safety | Non-SOTI Certified | Non-SOTI Certified | Non-SOTI Certified | Non-SOTI Certified | Non-SOTI Certified | Non-SOTI Certified | SOTI certified | Non-SOTI Certified |
| FCC ID/PTCRB/R&TTE/SRRC/TELEC/KCC | FCC ID/PTCRB/R&TTE/SRRC/TELEC/KCC | FCC ID/PTCRB/R&TTE/SRRC/TELEC/KCC | FCC ID/PTCRB/R&TTE/SRRC/TELEC/KCC | FCC ID/PTCRB/R&TTE/SRRC/TELEC/KCC | FCC ID/PTCRB/R&TTE/SRRC/TELEC/KCC | FCC ID/PTCRB/R&TTE/SRRC/TELEC/KCC | FCC ID/PTCRB/R&TTE/SRRC/TELEC/KCC | |
Core |
||||||||
| Processor | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) | Intel® Atom™ x7-Z8750 quad-core, 1.6 GHz (2M cache, up to 2.56 GHz) |
| Memory | 4 GB | 4 GB | 4 GB | 4 GB | 4 GB | 4 GB | 4 GB | 4 GB |
| Operating System | Windows 10 IoT Enterprise | Windows 10 IoT Enterprise | Windows 10 IoT Enterprise | Windows 10 IoT Enterprise | Windows 10 IoT Enterprise | Android 6.0 Marshmallow | Android 6.0 Marshmallow | Android 6.0 Marshmallow |
Wireless Communication |
||||||||
| LTE+GPS | X | V(NA) | V(EU) | V(APAC) | X | X | V | V(NA) |
| NFC | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica |
| WLAN/Bluetooth | IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1 | IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1 | IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1 | IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1 | IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1 | IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1 | IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1 | IEEE 802.11a/b/g/n/ac, Bluetooth® v4.1 |
Camera |
||||||||
| Front | 2MP Fixed Focus | 2MP Fixed Focus | 2MP Fixed Focus | 2MP Fixed Focus | 2MP Fixed Focus | 2MP Fixed Focus | 2MP Fixed Focus | 2MP Fixed Focus |
| Rear | 5MP Auto Focus with LED Flash | 5MP Auto Focus with LED Flash | 5MP Auto Focus with LED Flash | 5MP Auto Focus with LED Flash | 5MP Auto Focus with LED Flash | 5MP Auto Focus with LED Flash | 5MP Auto Focus with LED Flash | 5MP Auto Focus with LED Flash |
Display |
||||||||
| Brightness (cd/m2) | 380cd/m2 | 380cd/m2 | 380cd/m2 | 380cd/m2 | 380cd/m2 | 380cd/m2 | 380cd/m2 | 380cd/m2 |
| Resolution | WUXGA 1200x1920 | WUXGA 1200x1920 | WUXGA 1200x1920 | WUXGA 1200x1920 | WUXGA 1200x1920 | WUXGA 1200x1920 | WUXGA 1200x1920 | WUXGA 1200x1920 |
| Type | 10.1" FHD LCD | 10.1" FHD LCD | 10.1" FHD LCD | 10.1" FHD LCD | 10.1" FHD LCD | 10.1" FHD LCD | 10.1" FHD LCD | 10.1" FHD LCD |
Environment |
||||||||
| Certifications | FCC ID, TELEC, NCC, SRRC, RCM | FCC ID, TELEC, NCC, SRRC, RCM | FCC ID, TELEC, NCC, SRRC, RCM | FCC ID, TELEC, NCC, SRRC, RCM | FCC ID, TELEC, NCC, SRRC, RCM | FCC ID, TELEC, NCC, SRRC, RCM | FCC ID, TELEC, NCC, SRRC, RCM | FCC ID, TELEC, NCC, SRRC, RCM |
| IP Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating Temperature | -10 ~ 50° C (Charging 0 ~ 40° C for battery protection) | -10 ~ 50° C (Charging 0 ~ 40° C for battery protection) | -10 ~ 50° C (Charging 0 ~ 40° C for battery protection) | -10 ~ 50° C (Charging 0 ~ 40° C for battery protection) | -10 ~ 50° C (Charging 0 ~ 40° C for battery protection) | -10 ~ 50° C (Charging 0 ~ 40° C for battery protection) | -10 ~ 50° C (Charging 0 ~ 40° C for battery protection) | -10 ~ 50° C (Charging 0 ~ 40° C for battery protection) |
| Safety | UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI | UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI | UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI | UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI | UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI | UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI | UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI | UL, CB, LVD + Energy Star 6.1, CE, FCC, IC, VCCI, BSMI |
| Storage Temperature | -20 ~ 70 °C (-4 ~ 158 °F) | -20 ~ 70 °C (-4 ~ 158 °F) | -20 ~ 70 °C (-4 ~ 158 °F) | -20 ~ 70 °C (-4 ~ 158 °F) | -20 ~ 70 °C (-4 ~ 158 °F) | -20 ~ 70 °C (-4 ~ 158 °F) | -20 ~ 70 °C (-4 ~ 158 °F) | -20 ~ 70 °C (-4 ~ 158 °F) |
I/O Interface |
||||||||
| Extended I/O Port | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power |
| LED | Full: green (100%); Charging: blue; Low: red (≤10%) | Full: green (100%); Charging: blue; Low: red (≤10%) | Full: green (100%); Charging: blue; Low: red (≤10%) | Full: green (100%); Charging: blue; Low: red (≤10%) | Full: green (100%); Charging: blue; Low: red (≤10%) | Full: green (100%); Charging: blue; Low: red (≤10%) | Full: green (100%); Charging: blue; Low: red (≤10%) | Full: green (100%); Charging: blue; Low: red (≤10%) |
| Standard I/O Port | 1 x USB 3.0, 2 x USB 2.0, 1 x VGA (15-pin), 1 x RS-232 (9-pin), 2 x 10/100/1000 Ethernet (RJ-45), 1 x headphones/speaker (mini-jack), 1 x microphone (mini-jack), 1 x DC-in jack, 1 x docking port, 3 x RF pass through connectors for Ext. antenna of WWAN, GPS and WLAN | 1 x USB 3.0, 2 x USB 2.0, 1 x VGA (15-pin), 1 x RS-232 (9-pin), 2 x 10/100/1000 Ethernet (RJ-45), 1 x headphones/speaker (mini-jack), 1 x microphone (mini-jack), 1 x DC-in jack, 1 x docking port, 3 x RF pass through connectors for Ext. antenna of WWAN, GPS and WLAN | 1 x USB 3.0, 2 x USB 2.0, 1 x VGA (15-pin), 1 x RS-232 (9-pin), 2 x 10/100/1000 Ethernet (RJ-45), 1 x headphones/speaker (mini-jack), 1 x microphone (mini-jack), 1 x DC-in jack, 1 x docking port, 3 x RF pass through connectors for Ext. antenna of WWAN, GPS and WLAN | 1 x USB 3.0, 2 x USB 2.0, 1 x VGA (15-pin), 1 x RS-232 (9-pin), 2 x 10/100/1000 Ethernet (RJ-45), 1 x headphones/speaker (mini-jack), 1 x microphone (mini-jack), 1 x DC-in jack, 1 x docking port, 3 x RF pass through connectors for Ext. antenna of WWAN, GPS and WLAN | 1 x USB 3.0, 2 x USB 2.0, 1 x VGA (15-pin), 1 x RS-232 (9-pin), 2 x 10/100/1000 Ethernet (RJ-45), 1 x headphones/speaker (mini-jack), 1 x microphone (mini-jack), 1 x DC-in jack, 1 x docking port, 3 x RF pass through connectors for Ext. antenna of WWAN, GPS and WLAN | 1 x USB 3.0, 2 x USB 2.0, 1 x VGA (15-pin), 1 x RS-232 (9-pin), 2 x 10/100/1000 Ethernet (RJ-45), 1 x headphones/speaker (mini-jack), 1 x microphone (mini-jack), 1 x DC-in jack, 1 x docking port, 3 x RF pass through connectors for Ext. antenna of WWAN, GPS and WLAN | 1 x USB 3.0, 2 x USB 2.0, 1 x VGA (15-pin), 1 x RS-232 (9-pin), 2 x 10/100/1000 Ethernet (RJ-45), 1 x headphones/speaker (mini-jack), 1 x microphone (mini-jack), 1 x DC-in jack, 1 x docking port, 3 x RF pass through connectors for Ext. antenna of WWAN, GPS and WLAN | 1 x USB 3.0, 2 x USB 2.0, 1 x VGA (15-pin), 1 x RS-232 (9-pin), 2 x 10/100/1000 Ethernet (RJ-45), 1 x headphones/speaker (mini-jack), 1 x microphone (mini-jack), 1 x DC-in jack, 1 x docking port, 3 x RF pass through connectors for Ext. antenna of WWAN, GPS and WLAN |
Mechanical |
||||||||
| Dimensions (W x H x D) | 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) | 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) | 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) | 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) | 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) | 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) | 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) | 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) |
| Weight | 980g | 980g | 980g | 980g | 980g | 980g | 980g | 980g |
Multimedia |
||||||||
| Microphone | 2 x Internal Microphone for Noise Suppression | 2 x Internal Microphone for Noise Suppression | 2 x Internal Microphone for Noise Suppression | 2 x Internal Microphone for Noise Suppression | 2 x Internal Microphone for Noise Suppression | 2 x Internal Microphone for Noise Suppression | 2 x Internal Microphone for Noise Suppression | 2 x Internal Microphone for Noise Suppression |
Storage |
||||||||
| eMMC | 64GB | 64GB | 64GB | 64GB | 64GB | 64GB | 64GB | 64GB |
Option |
||||||||
| Barcode Scanner | Optional | Optional | Optional | Optional | Standard | Optional | Optional | Optional |
