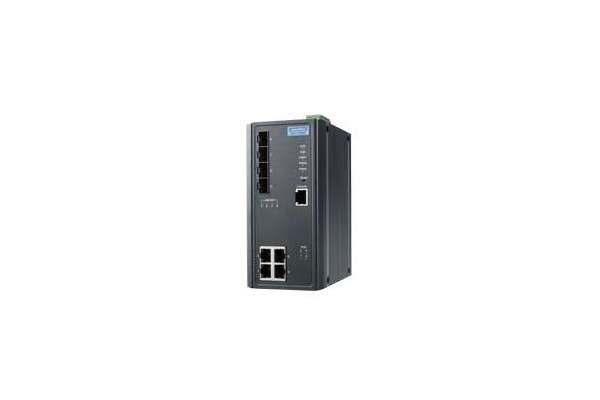

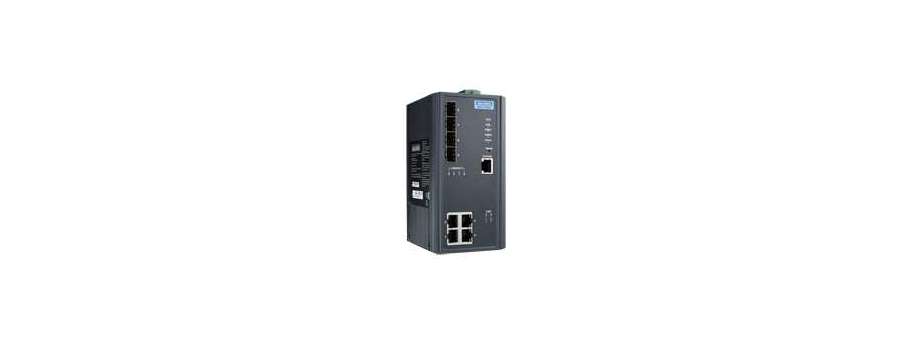

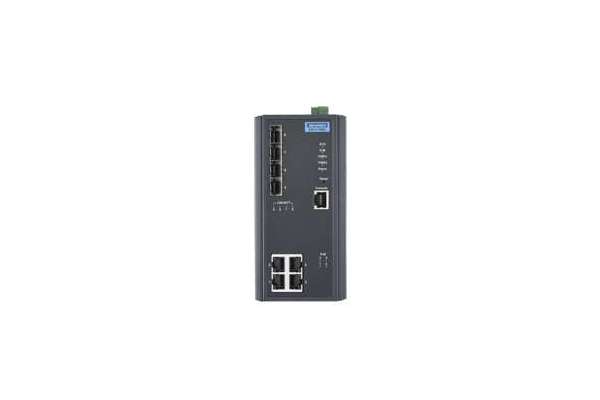

Managed Ethernet Industrial PoE Switch Advantech EKI-7708G-4FP
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EKI-7708G-4FP-AE | Промышленный управляемый коммутатор 4G+4SFP with POE -10 ~ 60? | 42 751,0 | |
| EKI-7708G-4FPI-AE | Промисловий керований комутатор Advantech EKI-7708G, 4GE+4SFP with POE, wide temp | 41 947,2 | |
| EKI-7708G-4F-AE | Керований промисловий комутатор Advantech 4GE + 4SFP Managed Ethernet Switch | 36 404,7 | |
| EKI-7708G-4FI-AE | Промисловий керований комутатор 4G + 4SFP Managed Ethernet Switch Wide Temp | 39 463,8 | |
| EKI-7708G-2FV-AE | Промышленный управляемый коммутатор 4G + 2SFP + 2VDSL Managed Ethernet Sw | 55 939,7 | |
| EKI-7708G-2FVI-A | 4G + 2SFP + 2VDSL Managed Ethernet Sw wide temp. | 58 591,5 | |
| EKI-7708G-2FVP-AE | Промышленный управляемый коммутатор 4G+2SFP+2VDSL Managed Sw with POE | 69 115,1 | |
| EKI-7708G-2MI-AE | Промисловий керований комутатор Advantech EKI-7706G 6G+2G MM Managed Ethernet Switch w/ Wide Temp | 43 556,5 | |
| EKI-7708G-2SI-AE | 6G+2G SM Managed Ethernet Switch w/ Wide Temp | 48 001,2 |
Actual replacement of the EKI-7758 model
EKI-7708G-4FP/4FPI supports 4 Gigabit IEEE 802.3 af/at PoE / PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device) requirements. They are embedded with Advantech’s IXM function, which can benefit users for fast deployment and can dramatically save engineers time and cost. The EKI-7708G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7708G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7708G-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications. EKI-7708G-4FP/4FPI has successfully passed the EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.
- 4 x IEEE 802.3 af/at PoE Gigabit ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- -40 ~ 75°C wide-range operating temperature (EKI-7708G-4FPI)
- Dual 48 VDC power input and 1 relay output
Additional information
Part Number |
EKI-7708G-4FP-AE |
| Product Category | |
| PoE Switch | yes |
| Interface (...) | |
| Ports Number | 8 |
| General (X) | |
| Ethernet Connectors | 4 x RJ-45 + 4 x SFP ports |
| Communication (XX) | |
| IEEE Standard | 802.1p, 802.3ad,802.1x,802.1D, 802.1s, 802.1w, 802.3af/at |
| I/O (X) | |
| Transmission Speed | 10/100/1000Base-T(X) |
| Power Supply (X) | |
| Power Input | 48VDC |
| Operating System (X) | |
| Temperature (Operating) | -10 ~ 60°C (14 ~ 140°F) |
| * Port Configuration | |
| Ethernet Transmission Distance (X) | 100 m |
| Ethernet Port Description | - |
| Fiber Port Interface (X) | SFP |
| Fiber Port Description | 4 x SFP(mini-GBIC)ports |
| Fiber Transmission Distance (X) | Up to 110km |
| Ethernet PoE Port Number | 4 x 10/100/1000Base-T |
| Switch Properties | |
| MAC Table Size | 8K |
| Packet Buffer Size | 4.1MB |
| Switch Fabric Speed | 16Gbps |
| Jumbo Frame | 9,216 bytes |
| Mechanism | |
| Dimensions (W x H x D) | 74 x 152 x 105 mm (2.91" x 5.98" x 4.13") |
| IP Rating | IP Rating |
| Enclosure | Metal shell |
| Weight | 1.1kg |
| Mounting (X) | DIN-rail, Wall |
| Environment | |
| Operating Temperature (X) | -10 ~ 60°C (14 ~ 140°F) |
| Storage Temperature (X) | -40 ~ 85°C (-40 ~ 185°F) |
| Relative Humidity (Non-condensing) | 10 ~ 95% |
| MTBF | |
| Method | Telcordia, GB |
| Time | TBD |
| Power Requirement (X) | |
| Operating Current | 0.25A @ 48Vdc (system) |
| Power Consumption | 12.1W (system) |
| Connectors | 6-pin removable screw terminal (power & relay) |
| Reverse Polarity | Present |
| Certification | |
| EMI | CE, FCC Class A |
| EMC | EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Warranty | |
| Warranty Period | 5 years |
