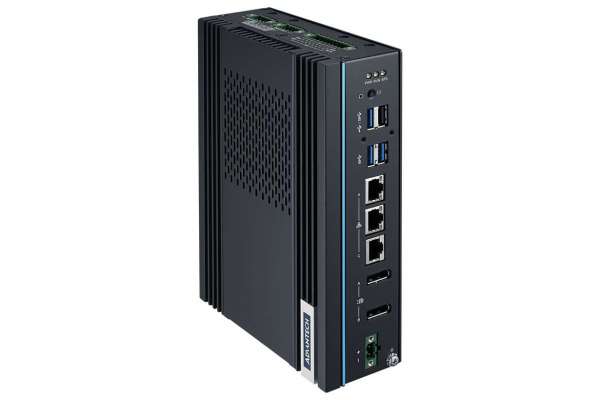

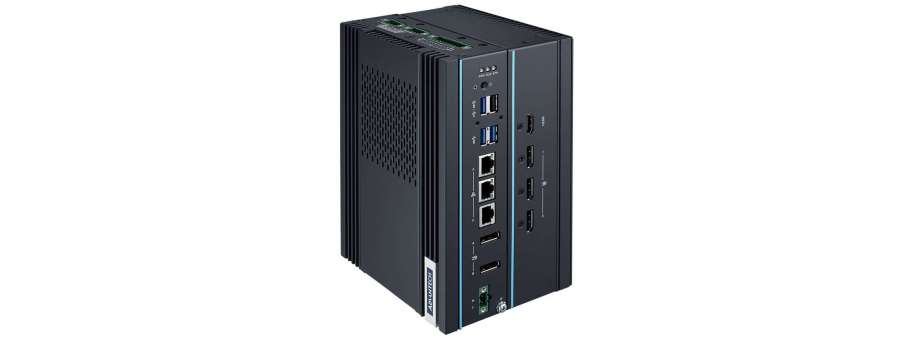

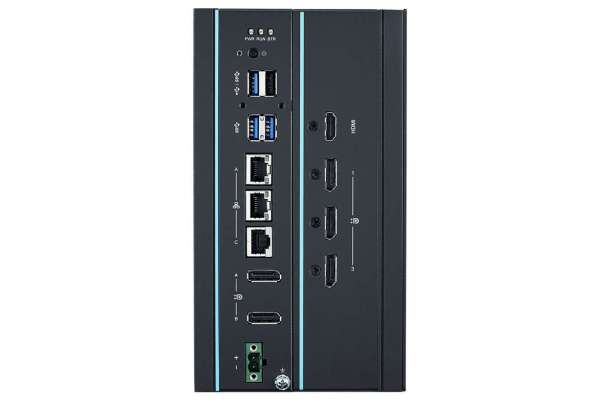

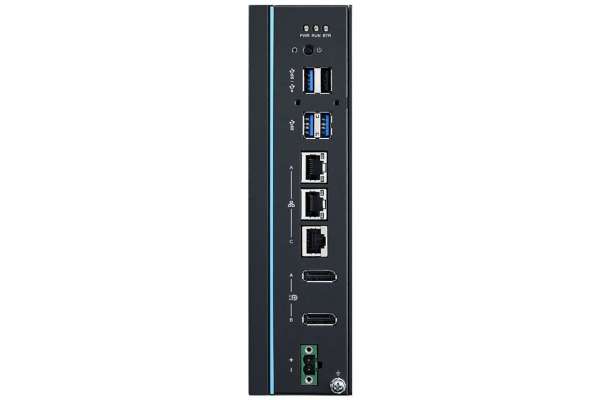

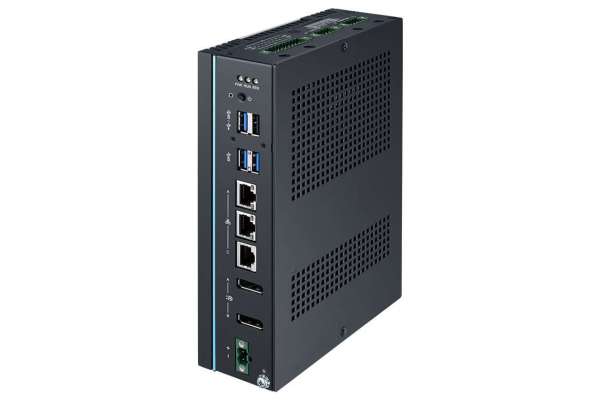

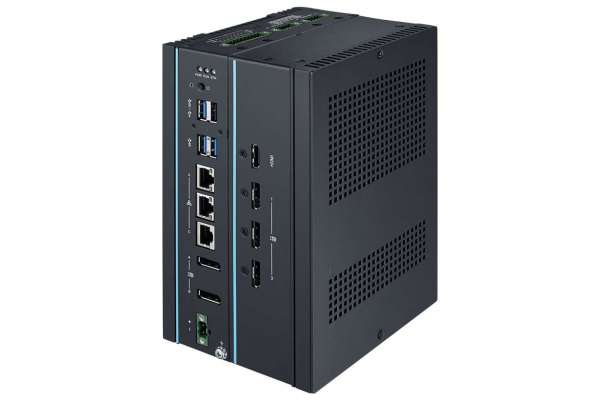

Fanless DIN-Rail Edge Controller feature with 13th Gen Intel® Core™ i CPU Advantech UNO-148 V2

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-148-D73BA I7-1365UE,1.7GHz, 8G DDR5,3LAN,4COM,8DIO  107 530,0
UNO-148-D53BA I5-1335UE,1.3GHz, 8G DDR5,3LAN,4COM,8DIO  85 937,7
UNO-148-D33BA I3-1315UE,1.2GHz, 8G DDR5,3LAN,4COM,8DIO  72 529,7

Advantech’s UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements. UNO-148 V2 is equipped with an 13th Generation Intel® Core™ i Processor with 8GB DDR5 RAM, and 3 x LAN, 4 x COM, 3 x USB 3.2, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.4. The controller also supports 1 x full-size mini PCIe, 2 x M.2 M Key, 1 x M.2 E key, and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-148 V2 can be equipped with an optional second-stack extension kit that supports Advantech’s iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.

  • Intel 13th Gen Core i7/i5/i3 Processor with 8GB DDR5 memory
  • Port isolation for 8 x DI, 8 x DO, 4 x COM
  • Supports 2*M.2 M key 2280 NVMe SSD storage (support RAID), and M.2 E Key 2230 wi-fi modules
  • Modular design for optional iDoor extension
  • Onboard TPM 2.0 provides hardware-based security
  • IEC 61010-2 standard compliant
  • Ruggedized DIN-Rail kit Modular design for optional iDoor extension

Additional information

General

Certification CE, FCC, UL61010-2-201, CCC, BSMI
Dimensions (W x D x H) 53 x 140 x 200 (1.4 x 5.5 x 7.8 in)
Form Factor Regular size
Enclosure Aluminum housing
Mount Option DIN Rail
Weight (Net) 1.8 kg / 3.96 lb
Power Requirement 10~36VDC
Power Consumption
41W (typical), 63W (max.)
- For UNO-148-IS2EA (iDoor + SATA): 72max.
- For UNO-148-P11EA (PCIE x4): 87max.
OS Support Windows 10 2021 LTSC, Windows 11, AdvLinux (Ubuntu 22.04)

System Hardware

BIOS AMI UEFI 256Mbit
Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec)
Security TPM2.0
Processor
  • I3-1315UE: 6 cores
  • I5-1335UE: 10 cores
  • I7-1365UE: 10 cores
Memory 8 GB DDR5 SODIMM-4800 (up to 64 GB with 2 x slots)
Graphics Engine CPU i3 &i5: Intel UHD/i7: Iris X
Ethernet
  • LAN A: Intel® i219-LM GbE, IEEE 802.3AZ/802.1AS
  • LAN B: Intel® i226-IT GbE, IEEE 802.3AZ/802.1AS
  • LAN C: Intel® i226-IT GbE, IEEE 802.3AZ/802.1AS
TSN Supported via i226 LAN port IEEE 802.1Qav/802.Qbv
LED Indicators 1 x Power, 1 x RTC battery, 1 x LAN (active, status), and 1 x programmable indicator
Expansion
  • 1 x Full-sized mPCIe (PCIe/USB 2.0 signals)
  • 1 x nano SIM card slot
  • 1 x M.2 (E key) for 2230 Wi-Fi modules (PCIe +USB signals)
  • 2 x M.2 (M key) for 2280 NVMe (PCIe x4 signals)

I/O

Isolated Serial Ports 4 x RS-232/422/485 (terminal block) 50 ~115.2 kbps (isolation protection: 2500 VDC)
LAN 1 x 10/100/1000BASE-T Fast Ethernet (RJ45) 2 x 10/100/1000/2500BASE-T Fast Ethernet (RJ45)
USB 2 x USB 3.2 (Gen2), 1 x USB 3.2 (Gen1), 1 x USB 2.0
Isolated DI/O
  • 8 x Digital input channels with 2500 VDC isolation protection - Wet contact: Logic 0: 10 ~ 30 VDC/ Logic 1: 0 ~ 3 VDC - Dry contact: Logic 0: Shorted to GND/ Logic 1: Open
  • 8 x Digital output channels - Output voltage: 5 ~ 30 VDC - Output capability sink: 500 mA max./channel
Displays 2 x DP 1.4, up to 3840 x 2160 (4K) @ 60 Hz
Power Connector 1 x 2-pin terminal block

Environmental

Operating Temperature For TDP @ 15W, -20 ~ 60 °C/-4 ~ 140 °F with 0.7 m/s airflow
Storage Temperature -40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity 95% RH @ 40 °C/104 °F, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11ms
Vibration Protection Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (SSD) Operating, IEC 60068-2-64, 0.3Grms, random, 5 ~ 500Hz, 1hr/axis (HDD)
Ingress Protection IP20
