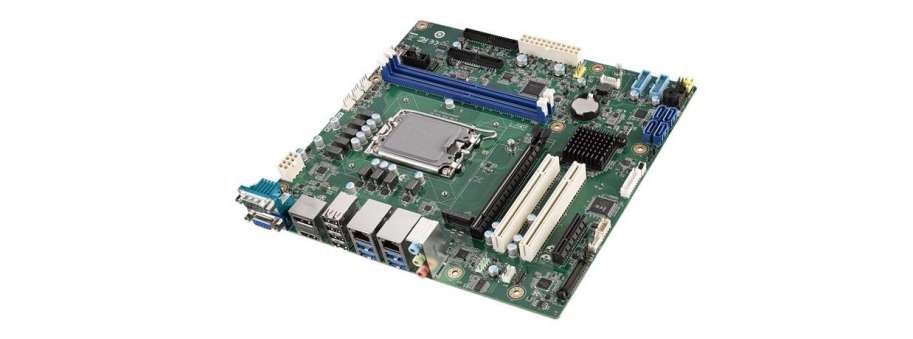

Intel® 12/13th Gen Core™ processors (Alder Lake-S/Raptor Lake-S) i9/i7/i5/i3 LGA1700, MicroATX with DP/HDMI/VGA/ eDP(LVDS) Advantech AIMB-508
Price and avalability
Partnumber | Description | Price VAT incl | Avalability |
---|---|---|---|
AIMB-508HF-EAA1 | Промислова материнська плата Advantech AIMB-508HF MicroATX with H610E/1eDP/4USB3.2/6COM/2.5G LAN | 20 034,0 | |
AIMB-508HL-0AA1 | Промислова материнська плата Advantech AIMB-508HL MicroATX with H610E/4USB3.2/5COM/1G LAN | 17 100,6 |
- Supports Intel® 12/13th Gen Core™ processors (Alder Lake-S/Raptor Lake-S) with H610E chipset
- Supports up to 32GB DDR4 3200 MT/S with two UDIMMs
- PCIe x16 slot Gen4, PCIe x4 slot Gen3, PCI slot
- Max up to 8x USB 3.2, 6x USB 2.0, 4x SATAIII, 1x GbE LAN, 1x 2.5GbE LAN, 1x M.2 M-Key
- WISE-DeviceOn and Embedded Software APIs
- Win10 / Win11 support
13th Generation Processors | |||||||||||
CPU |
i9-13900E/
i9-13900TE
|
i7-13700E/
i7-13700TE
|
i5-13500E/
i5-13500TE
|
i3-13100E/
i3-13100TE
|
i9-13900
|
i7-13700
|
i5-13500
|
i5-13400
|
i3-13100
|
||
Core Number (Performance and Efficient core) | 8P+16E | 8P+8E | 6P+8E | 4P+0E | 8P+16E | 8P+8E | 6P+8E | 6P+4E | 4P+0E | ||
Max. Speed |
5.20GHz/ 5.00GHz |
5.10 GHz/ 4.80 GHz |
4.60 GHz/ 4.50 GHz |
4.40 GHz/ 4.10 GHz |
5.60 GHz | 5.20 GHz | 4.80 GHz | 4.80 GHz | 4.50 GHz | ||
Intel Smart Cache | 36MB/ 36MB | 30MB/ 30MB | 24MB/ 24MB | 12MB/ 12MB | 36MB | 30MB | 24MB | 20MB | 12MB | ||
TDP (W) | 65W/35W | 65W/35W | 65W/35W | 60W/35W | 35W | 35W | 65W | 65W | 60W | ||
12th Generation Processors | |||||||||||
CPU |
i9-12900E/
i9-12900TE
|
i7-12700E/
i7-12700TE
|
i5-12500E/
i5-12500TE
|
i3-12100E/
i3-12100TE
|
G7400E/ G7400TE
|
G6900E/ G6900TE
|
i9-12900
|
i7-12700
|
i5-12500
|
i5-12400
|
i3-12100
|
Core Number (Performance and Efficient core) | 8P+8E | 8P+4E | 6P+0E | 4P+0E | 2P+0E | 2P+0E | 8P+8E | 8P+4E | 6P+0E | 6P+0E | 4P+0E |
Max. Speed | 5.0GHz/ 4.8GHz | 4.8GHz/ 4.7GHz | 4.5GHz/ 4.3GHz | 4.2GHz/ 4.0GHz | 3.6GHz/ 3.0GHz | 3.0GHz/ 2.4GHz | 5.10GHz | 4.9GHz | 4.6GHz | 4.4GHz | 4.3GHz |
Intel Smart Cache | 30MB/ 30MB | 25MB/ 25MB | 18MB/ 18MB | 12MB/ 12MB | 6MB/ 6MB | 4MB/ 4MB | 30MB | 25MB | 18MB | 18MB | 12MB |
TDP (W) | 65W/35W | 65W/35W | 65W/35W | 60W/35W | 46W/35W | 46W/35W | 65W | 65W | 65W | 65W | 60W |
Additional information
Processor System |
|
Supports Mode | AIMB-508HF-EAA1/ AIMB-508HL-0AA1 |
Chipset | H610E |
BIOS | AMI BIOS UEFI 256 Mbits SPI |
Expansion Slot |
|
PCIe x16 (Gen4) | 1 slot |
PCI | 2 slots |
PCIe x4 (Gen3) | 1 slot |
Memory |
|
Technology | Dual Channel DDR4 3200 MHz SDRAM |
Max. Capacity | 64GB (32 GB per DIMM) |
Frequency | 3200 MT/s |
Socket | 2 x 288-pin DDR4 DIMM Sockets (Non-ECC) |
Graphics |
|
Controller | Intel UHD Graphics 770 Supports DirectX12, OpenGL 4.5 |
HDMI | 1, up to resolution 4096*2160@ 30Hz |
eDP | 1, up to resolution 3840 x 2160 @ 60 Hz, co-design with LVDS, default eDP |
Display Port | 1, up to 4096 x 2304 @ 60Hz |
LVDS | 1, default eDP |
Triple Display | eDP+HDMI+DP, eDP+VGA+DP, HDMI+DP+VGA, HDMI+eDP+VGA |
Dual Display | DP +VGA, DP+eDP, DP +HDMI, HDMI + eDP, HDMI + VGA, eDP+VGA |
Ethernet |
|
Controller |
|
Connector | RJ45 x2 |
SATA |
|
Max Data Transfer Rate | 600 MB/s Max. (SATA 3.0) |
Q'ty | 4 |
Rear I/O |
|
Display Port | Display Port |
HDMI | Display Port |
Serial | 1 (RS232/422/485 auto flow control) |
VGA | 1 |
Ethernet | 2 (AIMB-508HF); 1 (AIMB-508HL) |
USB | 4 USB3.2 Gen1; 4 USB2.0 |
Audio | 3 (Line-out, Mic-In, Line-in) |
Internal Connector |
|
USB 3.2 | 4 (AIMB-508HF) |
USB 2.0 | 2 USB2.0 |
Serial | 9 (AIMB-508HF); 4 (AIMB-508HL) |
SATA 3.0 | 4 |
Extended Display Port (eDP) | 1 (AIMB-508HF) optional (AIMB-508HL) |
M.2 (M key) | 1 2280 NVMe |
GPIO | 8-bit GPIO |
Watchdog Timer |
|
Output | System reset |
Interval | Programmable 1 ~ 255 sec/min |
Power Requirements |
|
Power On |
|
Environment |
|
Temperature |
|
Physical Characteristics |
|
Dimensions | 244 mm x 244 mm (9.6" x 9.6") |
Power |
|
Input Mode | ATX input |
