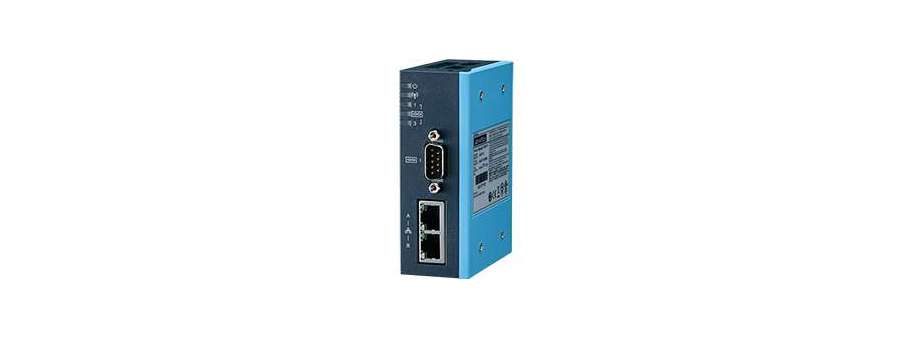

Industrial IoT Edge Gateway with 3 x RS-232/485 serial ports, 2 x 10/100/1000 Ethernet ports, and 4 x DI/DO Advantech WISE-710
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| WISE-710-N600A | Промисловий IIoT шлюз Advantech WISE-710, NXP Cortext A9, Linux Ubuntu 16.04, 2xLAN, 3xCOM, 4DI/DO, 8G eMMC | 22 602,8 | Доступно |
The WISE-710 industrial IoT gateway was an open platform with Cortex A9 processor, equipped with 3 x RS-232/485 serial ports, 2 x 10/100/1000 Ethernet ports, and 4 x DI/DO which is great solution to connect your legacy equipments to the new mesh networks. All collected data to the cloud will be secured by key encryption technology from embedded security chip. With its rich I/O, and wide operating temperature design, the gateway plays a role as PLC-side protocol converter, and also data logger for multiple industrial applications.
- Freescale i.MX 6 Dual Lite A9 1GHz
- 1x mPICe for WIFI/3G/4G/NB-IoT
- Support MQTT, LWM2M client for cloud communication
- Embedded with Microsoft Azure certified security chip
- Support Micro SD card & on-line firmware update
- Support DI wet contact & dry contact by switch
- Support Node ID by software
- Support data logger on Micro SD card
- Operation System: Yocto 2.1/ Ubuntu 16.04
- Operation Temperature: -20~55°C
Additional information
|
Part Number |
WISE-710-N600A |
| Communications | |
|
Ethernet Port |
2 x 10/100/1000 Base-T RJ-45 ports |
|
Serial Ports |
COM1 1x RS232/485, COM2 1x RS485/CAN Bus (by switch), COM3 1x RS485 |
|
USB Ports |
1 x Micro USB2.0 |
|
Wireless (Optional) |
Interface: 1x Mini-PCIe (Full-size) Type: WiFi/3G/4G/NB-IoT |
| Digital I/O | |
|
Channels |
4-ch digital input, 4-ch digital output |
| Environment | |
|
Humidity |
10 ~ 95% RH @ 40° C, non-condensing |
|
Operating Temperature |
-20 ~ 55°C (-4 ~ 131°F) |
|
Storage Temperature |
-30~75°C |
| General | |
|
Certifications |
CE,FCC |
|
Mounting |
Wall-Mount/ DIN-Rail/ Pole-Mount (Optional) |
|
Power Consumption |
5 W @ 24 VDC (typical) |
|
Power Requirement |
24 VDC |
| Software | |
|
Configuration |
Advantech EdgeLink |
|
OS Support |
Yocto 2.1/ Ubuntu 16.04 |
| System | |
|
CPU |
iMax 6 ARM Cortex-A9 (Up to 1GHz) |
|
SD Slot |
1 x Micro-SD slot |
|
Storage |
8GB eMMC |
