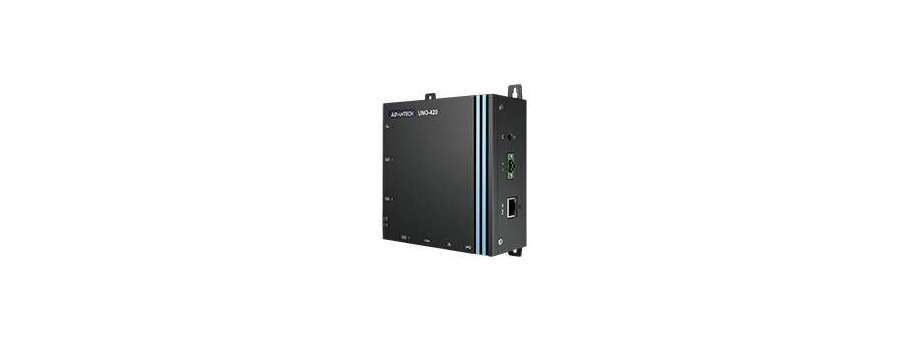

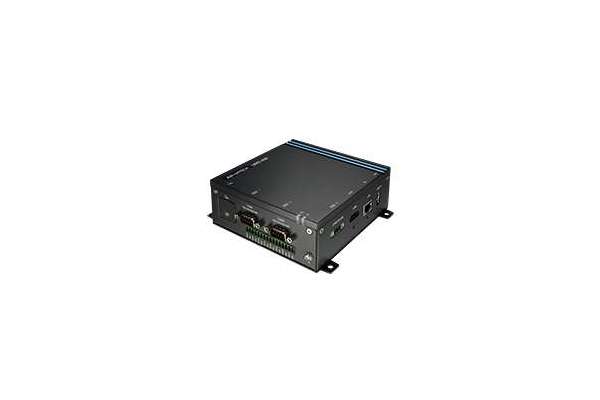

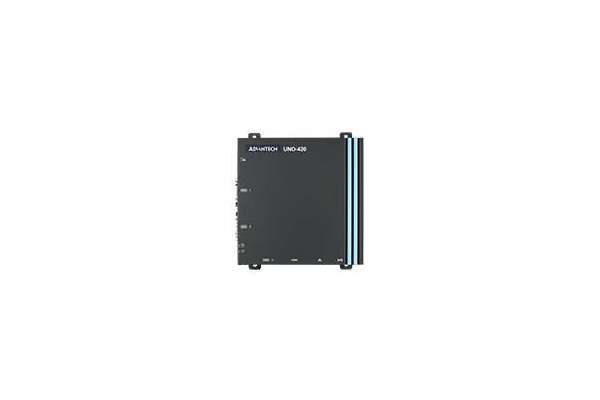

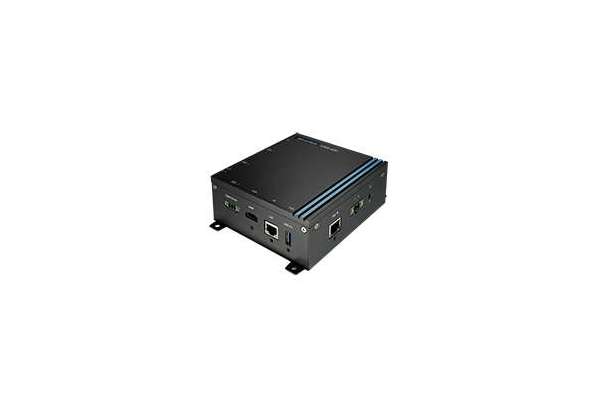

Intel® Atom™ PoE Powered Device Sensing Industrial Gateway Advantech UNO-420
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| UNO-420-E0A | Промисловий IIoT шлюз Atom E3815,2GB,2xLAN,3xCOM,8xGPIO,1xUSB,1xHDMI | 38 785,4 |
The new UNO-420 is ruggedized fanless design with Intel® Atom™ E3815 Processor, 3x COM port, 2x LAN port (one with Power Over Ethernet (PoE) technology), and 8 x Programmable GPIO. PoE allows you to add a device in awkward or remote locations where power cable may not equipment with. It supports one Ethernet cable for both data and power delivery. Ethernet cable, which appears in many existing infrastructures is considerably less expensive than fiber over the scope of an installation. UNO-420 features optimized I/O, PoE-IN, and wide operation temperature, which is suitable for machine data gateway in many industries.
- Intel Atom™ E3815 Processor with 2GB DDR3L onboard memory
- 2 x GbE (1 x PoE-IN), 1 x USB 3.0, 1 x HDMI, 1 x RS-485, 2 x RS-232/422/485, and 8 x Programmable GPIO
- 32GB eMMC storage onboard
- Ruggedized compact fanless design
- Support dual wireless communication for WiFi/3G/4G/GPS
- Support one Ethernet cable for both data & power delivery
- Support Trusted Platform Module (TPM) 2.0 for cyber security
- Advantech WISE-PaaS/EdgeLink support
- Edgelink support MQTT, LWM2M client for cloud communication
- EdgeLink supports more than 200 I/O Drivers
- EdgeLink supports user-defined acquisition period
Additional information
| General | |
| Certifications | CE, FCC, CB, UL |
| Dimension(W x D x H) | 125 x 125 x 50 mm |
| Enclosure | Aluminum Housing |
| Mounting | Wallmount, DIN-rail |
| Power Consumption | 12W (Typical), 20W (Max) |
| Power Requirement | 10 ~ 30 VDC |
| Weight (Net) | 1.5 kg |
| Environment | |
| Operating Temperature | - 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
| Relative Humidity | 10 ~ 95% RH @ 40°C, non-condensing |
| Storage Temperature | -40 ~ 80°C (-4 ~ 176°F) |
| Vibration Protection | Operating, IEC60068-2-6, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (M.2) |
| Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| System Hardware | |
| BIOS | AMI EFI64 Mbit |
| Ethernet | Realtek RTL8111E GbE, 802.10av |
| Graphics Engine | Intel® HD Graphics |
| LED Indicators | LEDs for Power, Storage (M.2) |
| Memory | 2GB DDR3L 1066 MHz |
| Processor | Intel Atom E3815 1.46GHz |
| Storage | Onboard 32GB eMMC, 1 x M.2 2242 (B key) |
| System Chip | Integrated Intel SoC Chipset |
| Watchdog Timer | Programmable 255 levels timer interval, from 1 to 255 sec |
| Expansion | 1 x Full-size mPCIe slot (USB/PCIe Signal), 1 x Half-size mPCIe slot (USB/PCIe Signal) |
| I/O Interface | |
| Serial Ports | 2 x RS-232/422/485, 0.15~115.2kbps, DB9 1 x RS-485, 0.15~115.2kbps, terminal block |
| LAN Ports | 2 x RJ45 (1x PoE-IN IEEE 802.3at & 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet) |
| USB Port | 1 x USB 3.0 |
| Displays | 1 x HDMI, supports 1920 x 1080 @ 60Hz |
| Power Connector | 1x 2 Pins, Terminal Block |
| Software | |
| OS Support | Advlinux/ WIN10 IoT Enterprise 2019 LTSC |
| Configuration | WISE-PaaS/EdgeLink Max Connection: 4 for uplink protocols (MQTT x 4, Modbus x 4...etc.) Max Tag: 3000 Tags |
