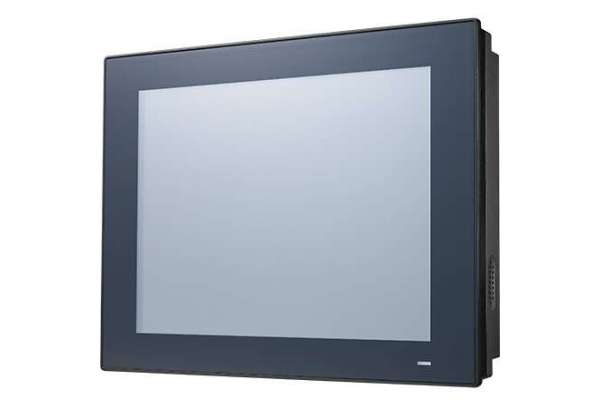

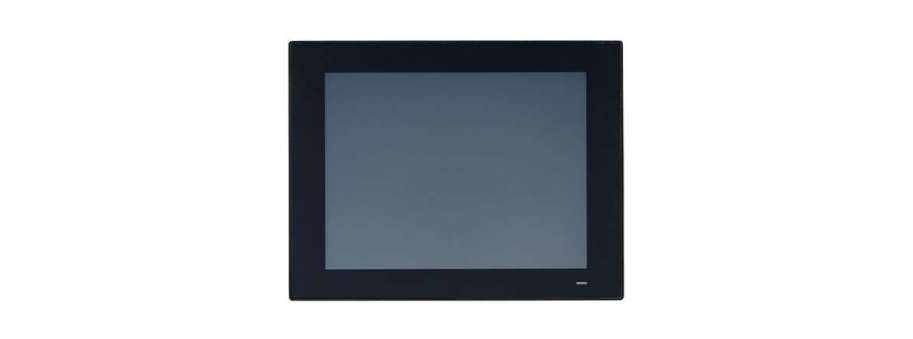

12.1" Fanless Panel PC with Intel® Core™ i5-7300U Processor with wide input power range 9 ~ 32 VDC Advantech PPC-412

Price and avalability

Partnumber Description Price VAT incl Avalability
PPC-412-R750A Панельний комп'ютер Advantech Intel Core i5-7300U Fanless with 12.1" R-touch  113 186,0

PPC-412 is a new generation industrial interactive panel PC with a 12.1" TFT LCD 1024 x 768 resolution, which features a flat, sleek design to greatly reduce maintenance effort. Pre-installed Intel® Core™ i processor and designed fanless architecture, PPC-412 provide high performance and reliable system for factory automation or variety of industrial applications. Furthermore, with the provision of multiple I/O, dual Intel® Gigabit ethernet, PPC-412 ensures easy integration and connectivity.

  • 12.1" XGA TFT LCD with resistive touchscreen
  • Intel® Core™ i5-7300U(default); i7-7600U/i3-7100U(optional) processor with fanless system design
  • 1 x isolated RS-422/485 with auto flow
  • Wide input power range (9 ~ 32 VDC)
  • Dual Gigabit Ethernet with IEEE1588 support
  • 3 x Independent displays
  • 1 x M.2 B key bay (2242) for storage and support SATA RAID 0/1
  • 1 x TPM 2.0 internal support (optional)
  • Supports VESA 75 mounting interface

Additional information

System

CPU Intel® Core™ i5-7300U dual core (default); i7-7600U/i3-7100U (optional)
Frequency 2.6 GHz, up to 3.5 GHz with turbo
L2 Cache 3 MB
Memory 1 x SODIMM DDR4 1866/2133 MHz, (max. 16 GB)
Storage
  • 1 x 2.5" SATA bay
  • 1 x M.2 2242 B Key slot for Storage(SATA or NVME interface),support SATA RAID 0/1
Network (LAN) 2 x 10/100/1000 Mbps Ethernet (Intel I219LM; Intel I210AT)

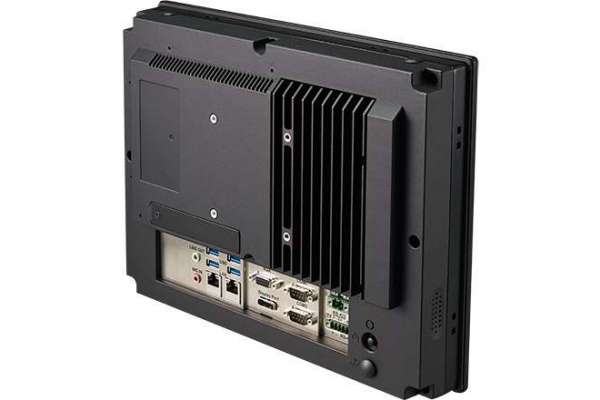

I/O
  • 3 x RS-232, 1 x RS-422/485 with 1K VDC isolation
  • 4 x USB 3.0
  • 1 x Line-out, 1 x Mic-in
  • 1 x DB15 VGA
  • 1 x Display Port (1.2)
  • 1 x TPM 2.0 internal(optional)
Expansion 1 x Mini PCIe
Watchdog Timer 255 timer levels, set up by software
Speaker 2 x 1W

Physical Characteristics

Dimensions 317 x 246 x 60.5 mm (12.4 x 9.7 x 2.4 in)
Weight 3.4 kg (7.5 lb)

OS Support

OS Support Microsoft® Windows 10 IOT LTSC(64-Bit), Linux

Power Consumption

Input Voltage 9 ~ 32 VDC
Power Consumption i5-7300U 60W (Burn-in test 8.0 in Windows 10 64bit)

LCD

Display Type 12.1" TFT LCD panel
Max. Resolution 1024 x 768
Viewing Angle 89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2 ) 600
Contrast Ratio 1000
Backlight Lifetime 50,000 hr (min.)

Touchscreen

Touch Type 5-wire resistive
Light Transmission 80±5% at 550nm wavelength
Controller USB interface

Environment

Operating Temperature 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity 95% @ 40 °C (Non-Condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, Follows IEC 60068-2-64
EMC CE, FCC Class B, EN 61000-6-2,BSMI, UKCA
Safety CB, UL, CCC, UKCA
Front Panel Protection IP66 compliant
