Industrial GPS module with stamp type interface Advantech AIW-211

AIW-211:

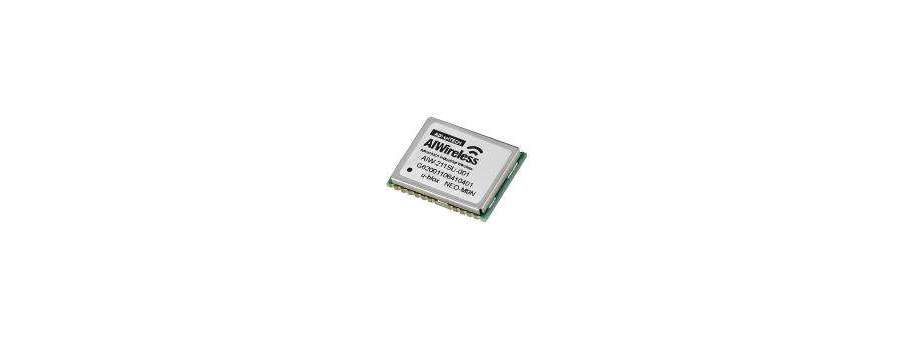

  • Solder-down stamp type form factor
  • 92-Channel u-blox NEO-M9N engine (GPS, QZSS, GLONASS, BeiDou, Galileo and SBAS)
  • Open sky cold start 24 second / Aided starts 2 second
  • USB 2.0 interface
  • Accuracy 1.5m CEP
  • Cold start 24 seconds under open sky / 2 seconds during aided & hot start
  • Operating temperature: -40°C ~ +85°C / -40°F ~ 185°F

AIW-212:

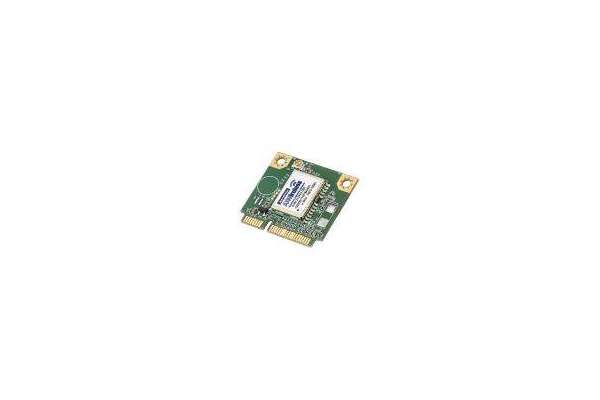

  • Half sized mini-PCIe form factor
  • 92-Channel u-blox NEO-M9N engine (GPS, QZSS, GLONASS, BeiDou, Galileo and SBAS)
  • Open sky cold start 24 second / Aided starts 2 second
  • USB 2.0 interface
  • Accuracy 1.5m CEP
  • Operating temperature: -40°C ~ +85°C / -40°F ~ 185°F

Additional information

Specifications

AIW-211 AIW-212
Main Chipset u-blox NEO-M9N u-blox NEO-M9N
Receiver Type
  • 92 Channels
  • GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F
  • BeiDou B1I, Galileo E1B/C
  • SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
  • 92 Channels
  • GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F
  • BeiDou B1I, Galileo E1B/C
  • SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Time-To-First-Fix (GPS + GLONASS)
  • Cold Start (Autonomous): 24 seconds
  • Hot Start (Autonomous): 2 seconds
  • Aided Start: 2 seconds
  • Cold Start (Autonomous): 24 seconds
  • Hot Start (Autonomous): 2 seconds
  • Aided Start: 2 seconds
Sensitivity (GPS + GLONASS)
  • Tracking & Navigation: -167 dBm
  • Reacquisition: -160 dBm
  • Cold Start (Autonomous): -148 dBm
  • Tracking & Navigation: -167 dBm
  • Reacquisition: -160 dBm
  • Cold Start (Autonomous): -148 dBm
Horizontal Position Accuracy SBAS: 2.0 m SBAS: 2.0 m
Time Pulse Signal Accuracy
  • RMS: 30 ns
  • 99%: 60 ns
  • Time Pulse Configurable: f=0.25…10M Hz
  • RMS: 30 ns
  • 99%: 60 ns
  • Time Pulse Configurable: f=0.25…10M Hz
Velocity Accuracy 0.05 m/s 0.05 m/s
Heading Accuracy 0.3 degress 0.3 degress
Dynamics ≤4g ≤4g
Operational Limits Altitude: 80000 m, Velocity: 500 m/s Altitude: 80000 m, Velocity: 500 m/s
Operating Temperature -40 to +85° C / -40°F ~ 185° -40°C ~ +85°C / -40°F ~ 185°F
