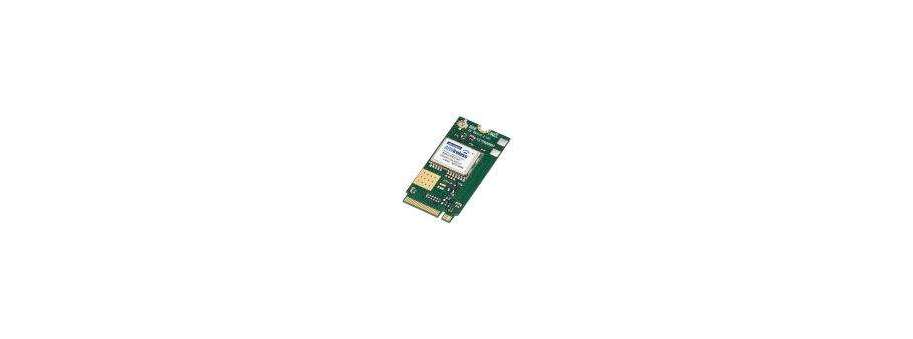

Industrial GPS Module Advantech AIW-210

Industrial GPS Module with M.2 2242 B Key Interface Advantech AIW-210

• M.2 2242 Key B form factor
• 92-Channel u-blox NEO-M9N engine (GPS, QZSS, GLONASS, BeiDou, Galileo and SBAS)
• Open sky cold start 24 second / Aided starts 2 second
• USB 2.0 interface
• Accuracy 1.5m CEP
• Cold start 24 seconds under open sky / 2 seconds during aided & hot start
• Operating temperature: -40°C ~ +85°C / -40°F ~ 185°F

Additional information

Specifications
Main Chipset	u-blox NEO-M9N
Receiver Type	92 Channels GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Time-To-First-Fix (GPS + GLONASS)	Cold Start (Autonomous): 24 seconds Hot Start (Autonomous): 2 seconds Aided Start: 2 seconds
Sensitivity (GPS + GLONASS)	Tracking & Navigation: -167 dBm Reacquisition: -160 dBm Cold Start (Autonomous): -148 dBm
Horizontal Position Accuracy	SBAS: 2.0 m
Time Pulse Signal Accuracy	RMS: 30 ns 99%: 60 ns Time Pulse Configurable: f=0.25…10M Hz
Velocity Accuracy	0.05 m/s
Heading Accuracy	0.3 degress
Dynamics	≤4g
Operational Limits	Altitude: 80000 m, Velocity: 500 m/s
Operating Temperature	-40°C ~ +85°C / -40°F ~ 185°F
