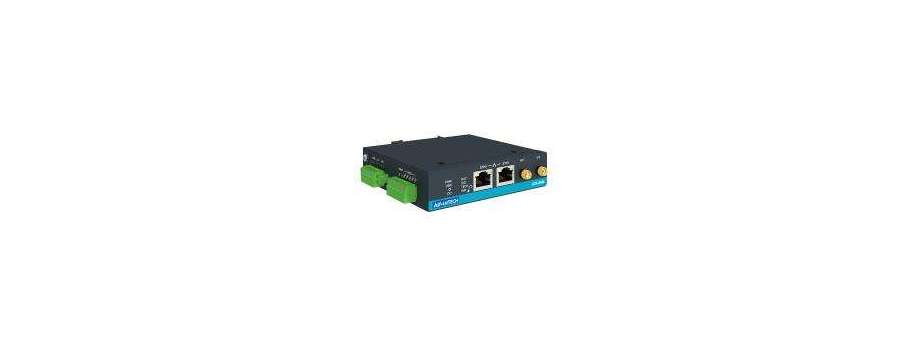

Industrial Router using LTE Cat.4, 450 MHz with 2× ETH, 1× RS232, 1× RS485, No ACC Advantech ICR-2437

Price and avalability

Partnumber Description Price VAT incl Avalability
ICR-2437 Cellular Router, Cat4, LTE450, 2x ETH  28 082,1

Industrial cellular router ICR-2437 is designed for wireless communication in LTE 450 MHz networks as well as in standard 4G public European LTE networks. LTE 450 MHz brings deeper LTE signal penetration than standard 4G public LTE frequencies and is ideal for Industrial IoT and critical infrastructure applications. The ICR-2437 offers a unique design supporting both LTE 450 MHz bands B31 and B72 in one single router unit. Router gateway construction provides state-of-the-art 450 MHz RF front-end design with excellent RF performance. In addition to LTE 450 MHz great performance, it allows users to communicate in standard high-speed public LTE networks (LTE Cat.4) with download speed up to 150 Mbps and upload speed up to 50 Mbps. The router is equipped with two independently configurable Ethernet ports (LAN or WAN), 1× serial port RS232, 1× RS485, and with digital I/O connectivity (1× DI, 1× DO). The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status. Router is based on ICR-OS operation system. Open Linux platform enable wide possibilities of programming customer SW applications in Python, C/C++. Router supports uploading of RouterApps (User modules) that would extend standard firmware functionalities. Existing app library ready for free download by customer contains already developed software apps to enhance specific router functionality including industrial protocol conversions, support of IoT platforms such as MS Azure, Cumulocity, ThingWorx and a lot more.

  • LTE Cat.4 with 450 MHz support (B31 & B72)
  • 2× SIM for redundancy
  • 2× Ethernet 10/100 Mbps
  • 1× RS232, 1× RS485
  • 1× DI, 1× DO
  • Wide operational temperature range
  • Wall and DIN mount options
  • Linux based OS & SW customization

Additional information

System

CPU ARM926EJ-S, 600 MHz
Memory RAM - 128 MB NOR Flash - 64 MB (12 MB for Router Apps, 2 MB for customer data)
Watchdog HW Watchdog
RTC Battery backup RTC

Interfaces

Ethernet 2× Ethernet (1+1), RJ45, 10/100 Mbps
Serial Lines
  • 1× RS232 (Tx, Rx, GND, RTS, CTS)
  • 1× RS485 (A(-), B(+), GND)
  • (7-pin terminal block)
I / O
  • 1× Digital Input (48 V / 0.5 mA)
  • 1× Digital Output (Open Drain, 48 V / 100 mA)
  • (6-pin terminal block together with PWR)
Reset Button Reboot / Factory reset
LED Indicators System, Signal strength, Data activity, SIM1/SIM2 status, Mobile technology, Input, Output, User, ETH

Environmental

Power Supply 9 – 48 V DC (6-pin terminal block together with I/O)
Consuption Idle 2.6 W / Average 3.3 W / Maximum 4.2 W
Operating Temperature -40 to +75 °C
Storage Temperature 40 to +85 °C
Humidity 5 to 95 %
IP Cover IP30

Physical Characteristics

Dimensions 103 mm × 95 mm × 25 mm
Enclosure Metal Case, Grounding Screw
Mounting Wall mount, * Optional DIN Rail mount
Weight 345 g

Cellular Interface

SIM Slots 2× SIM (Micro SIM – 3FF)
Antennas 2× SMA connector (1× ANT, 1× DIV)
LTE Parameters
  • Supported FDD frequencies: B3, B7, B20, B31, B72
  • Transfer rate: 150 Mbps (DL), 50 Mbps (UL)

Standards & Regulations

Radio EN 301 511, EN 301 908-1, EN 301 908-2, EN 301 908-13
EMC EN 301 489-1, EN 301 489-19 , EN 301 489-52, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Safety EN 62 368-1, IEEE 802.3
National CE, UKCA
Mechanical EN 60529
Climatic EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-2-30
Environmental REACH, RoHS3, WEEE

Software

Operating System ICR-OS (Linux based)
SW Customization Router App (User Modules)
Application Development Open Linux, *Python, BASH, C/C++
Industrial Protocols and IoT *Modbus RTU/TCP gateway, *IEC 60870-5-101 to 104 gateway, *DF1, *DNP3, *MQTT, *LWM2M
Networking Features and Protocols DHCP, NAT/PAT, SSH, VRRP, PPPoE, SNMP, SMTP, Dynamic DNS client, DNS proxy, VLAN, QoS, *DMVPN, NTP Client/Server, *Routing protocols RIP, BGP, OSPF, IS-IS, NHRP, Backup Routes, Port Forwarding, Host Port Routing, Ethernet Bridging, Load Balancing, IPv6 Dual Stack
Security HTTPS, SSH, SFTP, DMZ, Firewall (IP Filtering, MAC address filtering, Inbound and outbound Port filtering) VPN Tunneling – WireGuard, OpenVPN, *EasyVPN, IPsec with IKEv1 and IKEv2, GRE, L2TP, PPTP Authentication – RADIUS, TACACS+, 2FA, *SCEP Encryption – DES, 3DES, AES, RSA, MD5, SHA
Firmware Management Automatic firmware updates – server, locally via LAN or remotely via WAN
Diagnostic/Log
  • Status – Signal Strength, Data Usage
  • One CLICK report – Current Configuration, Factory Identification, Routing Table
  • Log – System Log, Reboot Log, Kernel Log
  • Remote Diagnostics (via SSH)
Event Engine StartUp script & Up/Down script (Own rules based on Digital Inputs, Network Parameters, Data Usage, Timer) Report Types: SMS, email, SNMP Trap
Configuration Web server, SSH, Four configuration switchable profiles, Automatic configuration update from server, Backup & Restore configuration
Advanced Software Tools
  • WebAccess/DMP – Remote Device Provisioning, Monitoring & Management Platform
  • WebAccess/VPN – Advanced Secure Networking Platform
*Functionality is available with installed Router App (User Module)
