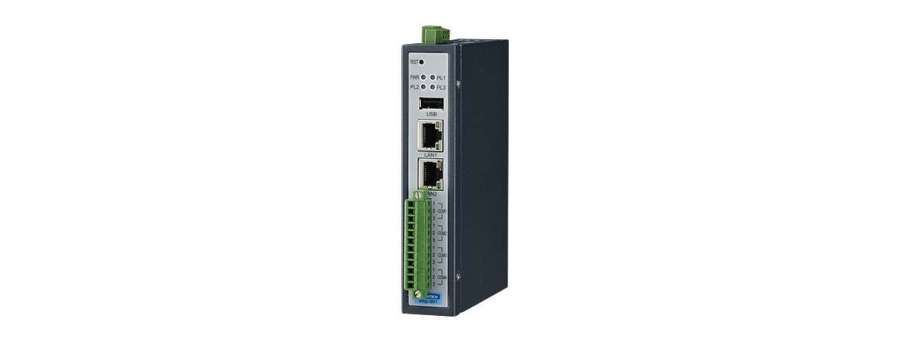

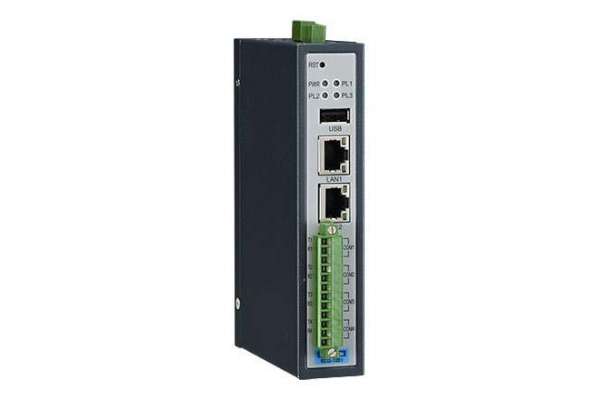

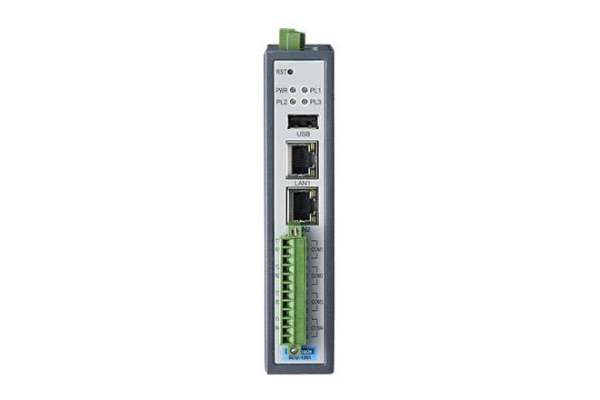

TI Cortex A8 Industrial Communication Gateway with 2 x LAN, 4 x COM Ports Advantech ECU-1251
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ECU-1251-R10AAE | Пристрій для звязку з об'єктом ECU-1251, TI Cortex A8 Industrial Communication Gateway with 2 x LAN, 4 x COM Ports | 21 255,6 | |
| ECU-1251TL-R10AAE | Пристрій для звязку з об'єктом Advantech ECU-1251, TI Cortex A8 Industrial Communication Gateway with 2 x LAN, 4 x COM Ports w/ TagLink | 23 973,4 | Доступно |
For solar power, electricity and factory related applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1251 RISC-based industrial communication gateway. ECU-1251 has an open platform design with Cortex A8 processor, up to four RS-232/485 isolated serial ports, two 10/100 Ethernet ports and operating temperature range of -40~70°C.WithLinux operating system and open TagLink SDK, which enable to system integrators to develop applications which precisely fit their need.
- TI Cortex A8, 800MHz
- DDR3L 256MB RAM
- 1 x Micro-SD Slot
- 4 x RS-232/485 isolated serial ports
- 2 x 10/100 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/3G/GPRS/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-101/104 protocol
- Support Data logger on SD card
- Operation System: RT-Linux
- Operation Temperature -40~70°C
Additional information
Part Number |
ECU-1251-R10AAE |
ECU-1251TL-R10AAE |
System Hardware |
||
| Memory | DDR3L 256MB | DDR3L 256MB |
| Watchdog Timer | Yes | Yes |
| Real-time Clock | Yes | Yes |
| Storage | 1GB Micro-SD card for system storage | 1GB Micro-SD card for system storage |
| CPU | TI Cortex A8, 800MHz | TI Cortex A8, 800MHz |
| Indicators | LEDs for Power, LAN(LINK, ACT),Serial (Tx, Rx), Programmable | LEDs for Power, LAN(LINK, ACT),Serial (Tx, Rx), Programmable |
General |
||
| Power consumption (typical) | 2.4W @ 24VDC | 2.4W @ 24VDC |
| Certification | CE, FCC | CE, FCC |
| Mounting | Wallmount, DIN-rail | Wallmount, DIN-rail |
| Power Requirement | 10 ~ 30 VDC | 10 ~ 30 VDC |
Communications |
||
| Ethernet Port | 2 x 10/100 Base-T RJ-45 ports | 2 x 10/100 Base-T RJ-45 ports |
| Serial Port Speed | RS-232/RS-485: 50 ~ 115.2 kbps | RS-232/RS-485: 50 ~ 115.2 kbps |
| USB Ports | 1 x USB 2.0 | 1 x USB 2.0 |
| Wireless (Optional) | Interface: 1x Mini-PCIe (Full-size);Type:WIFI/3G/GPRS/4G; Signal: USB | Interface: 1x Mini-PCIe (Full-size);Type:WIFI/3G/GPRS/4G; Signal: USB |
| Isolation Protection | 3,000 VDC | 3,000 VDC |
| Serial Ports | 4 x RS-232/485 | 4 x RS-232/485 |
Environment |
||
| Humidity | 5 ~ 95%, non-condensing | 5 ~ 95%, non-condensing |
| Operating Temperature | -40 ~ 70°C (-40~158°F) | -40 ~ 70°C (-40~158°F) |
| Storage Temperature | -40 ~ 85°C ( -40 ~ 185°F) | -40 ~ 85°C ( -40 ~ 185°F) |
Software |
||
| Configuration | N/A | Advantech TagLink Studio |
| OS Support | RT-Linux 3.12 | RT-Linux 3.12 |
| Programming | Linux C | Linux C |
| Protocols | N/A | Modbus, IEC-60870-101(master)/ 104(slave) |
System |
||
| Node ID | 8-bit | 8-bit |
| SD Slot | 1 x Micro-SD slot | 1 x Micro-SD slot |
