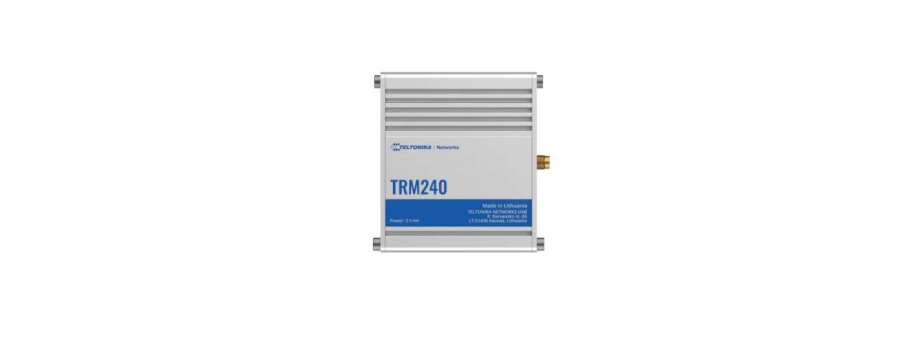

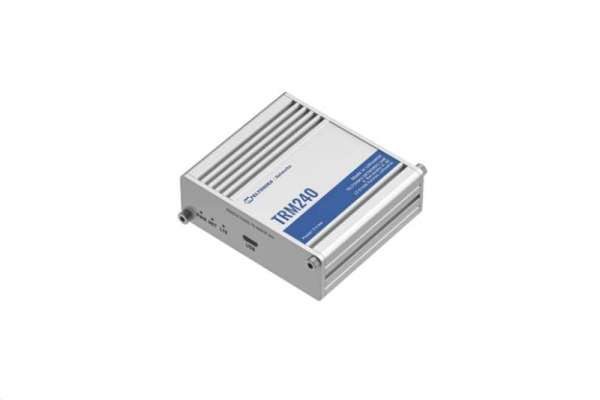

Industrial-grade USB 4G/LTE (Cat 1), 3G, 2G 1 modem Teltonika TRM240
TRM240 is an industrial-grade USB LTE Cat 1 modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for upgrading existing industrial equipment with cost-efficient LTE connectivity.
Additional information
Hardware |
|
| Mobile | LTE (Cat1) / 3G / 2G |
| SIM slot | Mini SIM (2FF) |
| Antenna connector | 1 x SMA for LTE |
| Operating Voltage | 5V - powered via microUSB |
| Power consumption | 3.2 W Max |
| Configuration interface | microUSB |

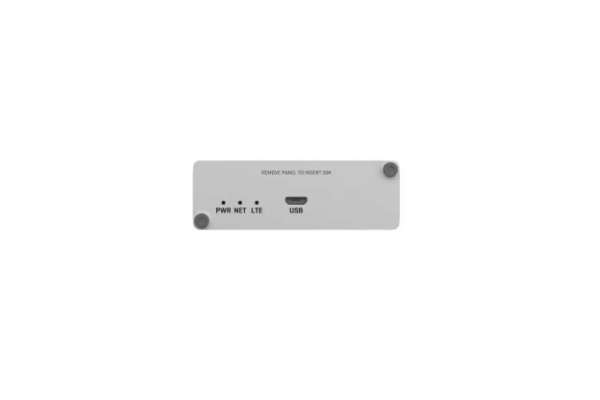

| LED indicators | Power, Network and LTE status LEDs |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Casing material | Aluminium housing |
| Ingress Protection Rating | IP30 |
| Dimensions (W x H x D) | 74.5 x 25 x 64.5 mm |
| Weight | 131 g |
Software |
|
| Management software | Windows Connection Manager (NDIS driver) |
| USB Serial Driver |
|
| RIL Driver | Android 4.x/5.x/6.x/7.x/8.x |
| NDIS Driver | Windows 7/8/8.1/10 |
| Gobinet Driver | Linux 2.6/3.x/4.1~4.14 |
| Linux qmi wwan Driver | 3.x (3.4 and later)/4.1~4.14 |
| Protocols | TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL |
Interfaces |
|
| Management interface |
|
