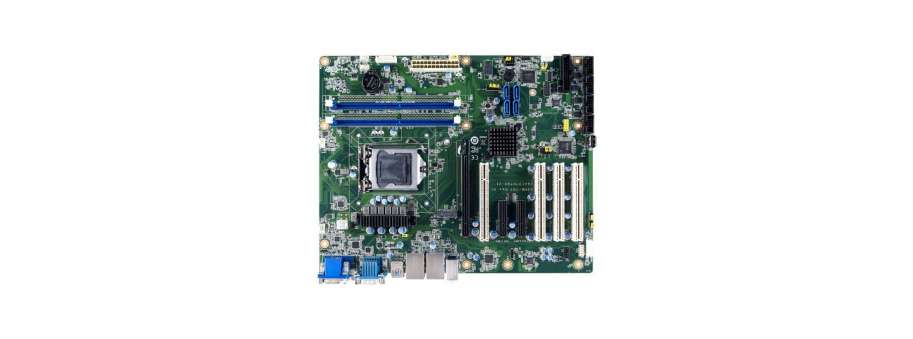

LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3 & Pentium®/Celeron® ATX Advantech AIMB-707
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIMB-707G2-00A2 | Промислова материнська плата Advantech AIMB-707G2 LGA1200 ATX H420E/2LAN/DVI/VGA w/o LPT | 25 438,3 | |
| AIMB-707VG-00A2 | Промислова материнська плата Advantech LGA1200 ATX H420E/LAN/VGA w/o LPT | 22 650,2 |
- Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H420E chipset
- Dual channel (Non-ECC) DDR4 2400/2666/2933 up to 64 GB
- Support VGA and DVI display
- M.2, SATA 3.0, USB 3.2, dual GbEs
- 5 RS-232 and 1 RS-232/422/485 serial ports
- 1 PCIe x16 (Gen 3) and 2 PCIe x4 (x1 Gen 3 link), and 4 PCI expansion slots
Note: Legacy platform is not supported.
Additional information
Processor System |
|
| Socket | LGA1200 |
| Chipset | Intel H420E |
| BIOS | AMI 128Mbit SPI Flash |
Expansion Slot |
|
| PCI | 4 (32-bit/33 MHz) |
| PCIe x4 (Gen 3) | 2 (link x1) |
| PCIe x16 (Gen 3) | 1 |
Memory |
|
| Technology | Dual Channel(Non-ECC) DDR4 2400/2666/2933 |
| Max Capacity | 64 GB |
| Sockets | 2 x 288-pin DIMM |
Graphics |
|
| Controller | Chipset integrated Intel HD Graphics |
| VRAM | Shared system memory is subject to OS |
Ethernet |
|
| Interface | 10/100/1000 Mbps |
| Controller | GbE LAN1: Intel I219-V, GbE LAN2: Intel I211-AT |
| Connector | 2 x RJ-45 |
SATA |
|
| Max Data Transfer Rate | 600 MB/s |
| Channel | 4 |
Rear I/O |
|
| VGA | 1 (Resolution up to 1920 x 1200 @ 60 Hz) |
| DVI | 1 for G2 version (Resolution up to 1920 x 1200 @ 60 Hz) |
| Ethernet | 2 for G2 version; 1 for VG version |
| USB | 6 (USB 3.2 Gen 1 for G2 version; 4 for VG version) |
| Audio | 2 (Line-out, Mic-in) |
| Serial | 2 (RS-232) |
Internal Connectors |
|
| USB | 4 (2 x USB 2.0 via header, 2 x USB 2.0 Type-A) for G2 version; 3 (2 x USB 2.0 via header, 1 x USB 2.0 Type-A) for VG version |
| Serial | 4 for G2 version (3 x RS-232, box-header; 1 x RS-232/422/485 with auto-flow control, box-header) |
| SATA | 4 |
| M.2 | 1 for G2 version (PCIe x2 M-key 2280 type) |
| GPIO | 8-bit |
Watchdog Timer |
|
| Output | System reset |
| Interva | Programmable 1 - 255 sec |
Power Requirement |
|
| Test Environment | Intel Core i9-10900E; DDR4 32 GB x 2 |
| Voltage | 3.3V, 5V, 12V, 5Vsb, -12V |
| Current | 0.72A, 1.29A, 6.5A, 0.11A, 0.04A |
Environment |
|
| Temperature/Humidity |
Operating: 0 ~ 60 °C (32 ~ 140 °F), depends on CPU speed and system thermal solution/ 40 °C @ 95% RH Non-condensing Non-Operating: -40 ~ 85 °C (-40 ~ 185 °F)/ 60 °C @ 95% RH Non-condensing |
Physical Characteristics |
|
| Dimensions (L x H) | 304.8 x 244 mm (12" x 9.6") |
