Industrial 4G LTE Router & Gateway Advantech ICR-3231
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ICR-3231W | Мережевий роутер з портами вводу-виводу Advantech ICR-3200 EMEA cat4,2xETH,1xRS232,1xRS485,GPS,WIFI,NOACC | 31 106,3 | Доступно |
| ICR-3231 | Мережевий роутер з портами вводу-виводу Advantech ICR-3200 EMEA cat4,2xETH,1xRS232,1xRS485,NOACC | 24 797,1 |
ICR-3231 is an industrial cellular router intended for the market in Europe, Middle East and Africa (EMEA) area. This router is an ideal device for wireless communication in mobile networks that make use of LTE, HSPA+, UMTS, EDGE or GPRS technology. Due to the high speed of data transfer up to 150 Mbps (download) and up to 50 Mbps (upload) is this router an ideal solution for specialized M2M devices and IoT as well as for wireless connection of traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATM) and other self-service terminals.
The standard configuration includes two Ethernet 10/100 ports, serial line RS232, RS485, one binary input and one output. The device also has two readers for 3 V and 1.8 V SIM cards, which are located on the left panel of the router. The router can be equipped with a WiFi module, but this must be part of the initial configuration – it cannot be added to the router at some point in the future. The router can be provided only in a metal casing.
- LTE Cat.4 with 3G/2G fallback
- Powerful CPU with 1.3 GB storage to host customer SW applications
- 2× SIM with cover
- 2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
- Robust metal cover with DIN and Wall mount options
- Operational temperature range from -40 °C to +75 °C
- Backup real time clock
- Sleep mode & Power ignition
- Optional Wi-Fi 802.11ac, 2×2 MIMO
- Optional Bluetooth v5.1 (class 1)
- Optional GNSS receiver
- E-Mark and EN 50155 Railway compliance
Additional information

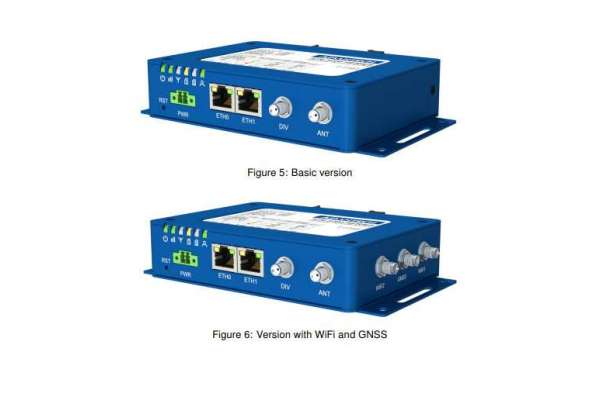

| Router versions | SIM | BIN | BOUT | ETH | WiFi | GNSS | 232 | 485 |
| Basic version | 2 | 1 | 1 | 2 | 1 | 1 | ||
| Version with WiFi and GNSS | 2 | 1 | 1 | 2 | 1 | 1 | 1 | 1 |
System |
|
| CPU | Cortex-A8, 1000 MHz |
| Memory | RAM – 512 MB eMMC – 4096 MB (838 MB for Router Apps, 512 MB for customer data) |
| Watchdog | HW Watchdog |
| RTC | Battery backup RTC |
Interfaces |
|
| Ethernet | 2× Ethernet, RJ45, 10/100 Mbps, Isolation 1.5 kV |
| Serial Lines |
|
| I / O |
|
| Reset Button | Reboot / Factory reset |
| LED Indicators | System, 3-level signal strength, Data activity, SIM1/SIM2 status, 2G/3G/4G technology, User, ETH |
Environmental |
|
| Power Supply | 9 – 36 V DC (2-pin terminal block) |
| Consumption |
|
| Operating Temperature | -40 to +75 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 5 to 95 % |
| IP Cover | IP30 |
Physical Characteristics |
|
| Dimensions | 31.2 × 94 × 129 mm |
| Enclosure | Metal Case, Grounding Screw |
| Mounting | Wall Mount kit, DIN Rail |
| Weight |
|
