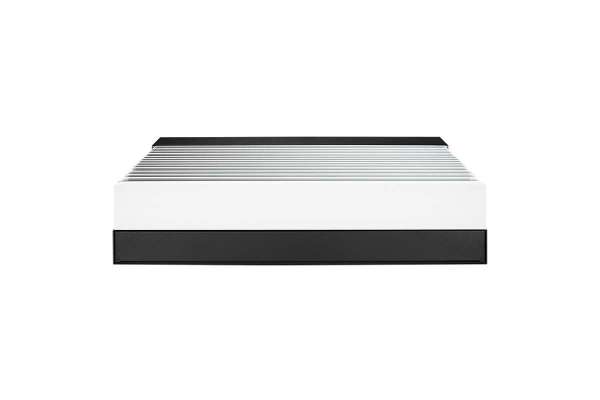

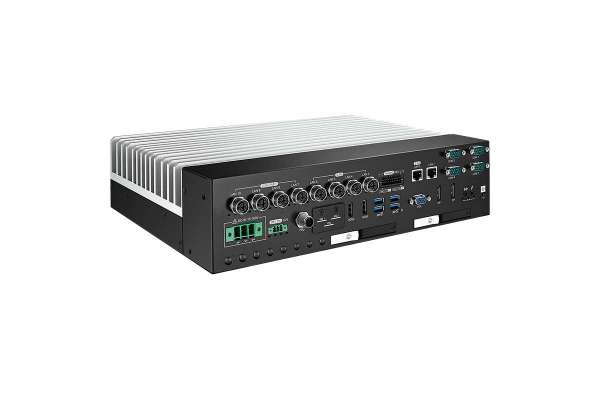

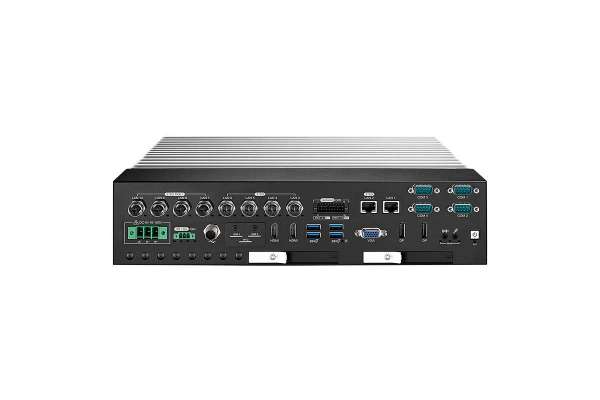

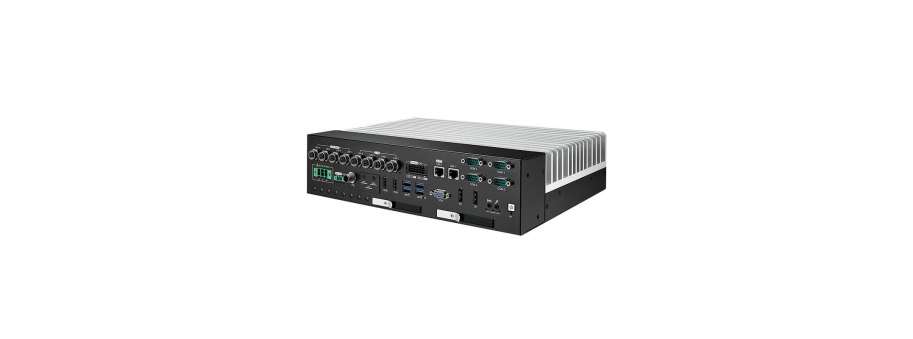

13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake/Alder Lake) In-Vehicle Computing Vecow IVX-1000
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| IVX-1000 | Промисловий компактний комп'ютер Vecow IVX-1000, 1 GigE LAN, 1 2.5G LAN, 8 M12 2.5G LAN w/4 PoE+, 4 Isolated COM RS-232/422/485, 16 Isolated DIO, 2 SSD Tray, 16-160VDC-IN | 160 065,0 |
Vecow IVX-1000 In-Vehicle Computing Workstation is powered 13th/12th Gen Intel® Core™ i9/i7/i5/i3 processor featuring performance hybrid architecture and advanced AI capabilities for smarter and faster applications. The IVX-1000 optional supports MXM Graphics powered by NVIDIA Quadro® platforms ideal for harsh environments with needed for excellent computing power, which helps accelerate the traffic vision deployment in rail applications. With a wide range of 16V to 160V power input, 500 surge protection and EN50155 certification, the IVX-1000 offers flexibility, optimal power integration and trusted reliability for In-vehicle computing in ADAS, Mobile Communication, Public Security and any Edge AI applications.
- Workstation-grade Platform : 13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor ( Raptor Lake-S/Alder Lake-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Optional supports outstanding AI computing productivity by advanced and compact NVIDIA® Quadro® MXM graphics
- 16V to 160V DC Power Input with 4kV DC Isolation, up to 500V Surge Protection, Software Ignition Power Control, optional UPS supported
- Fanless design for railway in-vehicle applications, fully compliant with EN50155 : 2017
- 8 Independent 2.5GigE LAN M12 X-coded
- Up to 6 front-access 7mm to 15mm height SSD/HDD Tray
- Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
Additional information
System |
|
| Processor |
|
| Chipset | Intel® R680E Chipset |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR5 4800MHz SO-DIMM, up to 64GB |
| OS | Windows 10, Linux |
I/O Interface |
|
| Serial | 4 Isolated COM RS-232/422/485 |
| USB |
|
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 2 External SIM Card Sockets |
| RTC Battery | Front-access RTC Battery |
Expansion |
|
| Mini PCIe | 1 Mini PCIe sockets for PCIe/USB/SIM Card/Optional mSATA |
| M.2 |
|
| SUMIT | 2 SUMIT Slot (Optional) |
Graphics |
|
| Graphics Processor |
|
| Interface |
|
Storage |
|
| SATA | 2 SATA III (6Gbps) support software RAID 0, 1 |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| M.2 | 1 M.2 Key M Socket (2280, PCIe x4) |
| Storage Device | 2 Front-access 2.5"SSD/HDD Tray |
Audio |
|
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
Ethernet |
|
| LAN 1 | Intel® I219LM GigE LAN supports iAMT |
| LAN 2 | Intel® I226 2.5GigE LAN supports TSN |
| LAN 3 to LAN 6 | Intel® I226 2.5GigE LAN, X-Coded M12 Connector |
| LAN 7 to LAN 10 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, X-Coded M12 Connector |
Power |
|
| Power Input | DC 16V to 160V, Max. support 200W |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Isolation | 4kV DC |
| Surge Protection | 0.5kV DC 8/20us Surge |
Others |
|
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats |
Environment |
|
| Operating Temperature |
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @55°C |
| Shock/Vibration |
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
Mechanical |
|
| Dimensions | 360mm x 228mm x 88mm (14.2" x 8.9" x 3.5") |
| Weight | 7.1 kg (15.65 lb) |
| Mounting |
|
