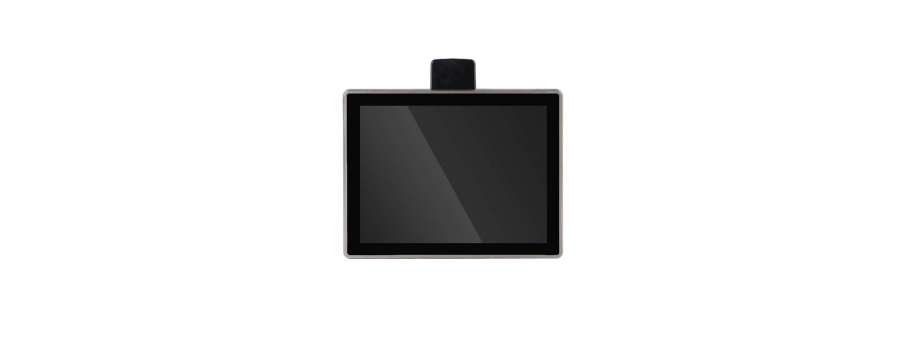

15" IP69K Stainless Steel Panel PC based on Intel® Celeron J1900 / Intel® Core™ i5-7200U / Intel® Celeron J6412 / Intel® Core™ i3-8145U NODKA WP1501T-C
- Support Intel® Celeron J1900 / Intel® Core™ i5-7200U / Intel® Celeron J6412 / Intel® Core™ i3-8145U;
- Rugged IP69K stainless steel case;

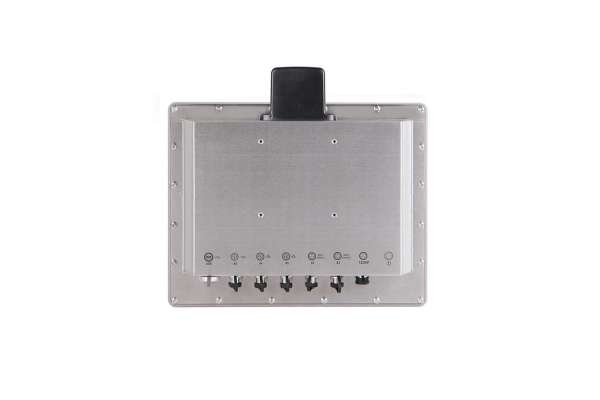

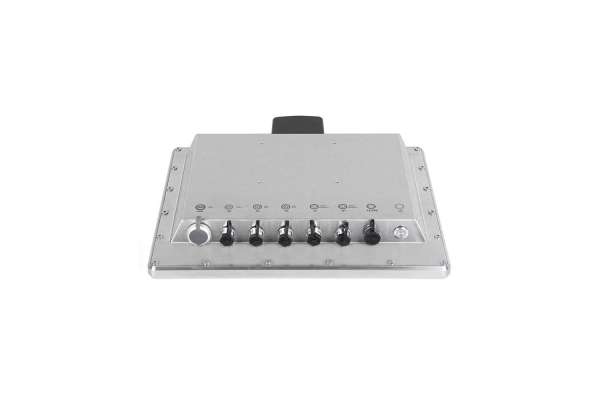

- M12 type plug. All interfaces use waterproof aviation plugs;
- 15" XGA TFT, Optimum resolution 1024*768, Project Capacitive touch screen;
- Wide voltage DC12~24V input, reverse polarity protection, overvoltage protection, overcurrent protection.
Additional information
Processor |
|
| CPU | Support Intel® Celeron J1900 / Intel® Core™ i5-7200U / Intel® Celeron J6412 / Intel® Core™ i3-8145U |
| Chipset | Integrated PCH-LP |
| Memory | J1900,7200U:DDR3L- 1333/1600/1866 MHz up to 8GB / J6412,8145U:DDR4-2133/ 2400MHz support up to 16GB |
| Storage Medium | 1 x mSATA |
| L2 Cache | 2MB / 3MB / 1.5MB / 4MB |
| BIOS | Quad Core2.0GHz / Dual Core2.5GHz / Quad Core2.0GHz / Dual Core2.1GHz |
I/O Interface |
|
| LAN | 2×Intel 1000Mbps |
| USB | 2 x USB2.0 |
| COM | 2 x RS232 (option RS485 before ordering) |
Physical |
|
| Dimensions | 360mm x 284mm x 54mm |
| Weight | 5.3kg |
Mounting |
|
| Mount | Wall-mounted, Desktop, VESA |
Operating System |
|
| OS | Windows7, Windows8, Windows10, Linux |
Power |
|
| Power Dissipation | 38.6Watt |
| Power input | 12-24VDC ±10% , Support reverse connection protection, over current protection |
LCD |
|
| LCD Size | 15" XGA TFT |
| Resolution | 1024 x 768 |
| Colors | 16.2MB |
| Active Area | 304.13mm x 228.10mm (11.97" x 8.98") |
| Backlight | WLED |
| MTBF | 50000hrs |
| Pixel Pitch | 0.297 x 0.297 |
| Luminance | 350cd/m2 |
| Contrast Ratio | 700 : 1 |
| Viewing Angle | (L) 80 / (R) 80 / (T) 80 / (B) 80 |
Touch Screen |
|
| Touchscreen Type | Capacitive Multi-touch screen |
| Transmittance | ≥ 87% |
| Controller interface | USB |
| Driver Support | Windows 7, Windows 8, Windows 10, Linux |
| Surface hardness | Mohs’7H |
| Multi-touch | 10 points under Windows OS |
Environment |
|
| Work temperature | -20 ~ 60°C (-4~140°F)(Wide temperature SSD) / 0 ~ 45°C (32~113°F)(General temperature HDD/SSD) |
| Storage Temperature | -30 ~ 80°C (-22~176°F) |
| Relative Humidity | 5 ~ 95% RH@40°C (Non-condensation) |
| Vibration | Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64 |
| Shock | Operating 20G peak acceleration (11ms duration), follow IEC 60068-2-27 |
| EMC | CE/FCC Class B |
| Water-proof | The whole machine IP69K |
Expansion Slot |
|
| MiniPCIe | Mini-PCIe slot，Option either Wifi or 4G/3G module (Default: wifi) |
