High Speed Wired Router & Powerfull Edge Computing Gateway Advantech ICR-4401
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ICR-4401 | Industrial Router, 5x ETH | 54 633,4 | |
| ICR-4401S | Industrial Router, 5x ETH, POE | 61 391,3 | |
| ICR-4401W | Industrial Router, 5x ETH, WIFI | 58 272,5 | |
| ICR-4401WS | Industrial Router, 5x ETH, WIFI, POE | 65 029,5 | |
| ICR-4401W1 | Industrial Router, 5x ETH, WIFI, low temp | 57 752,2 | |
| ICR-4401W1S | Industrial Router, 5x ETH, WIFI, POE, low temp | 64 510,0 |

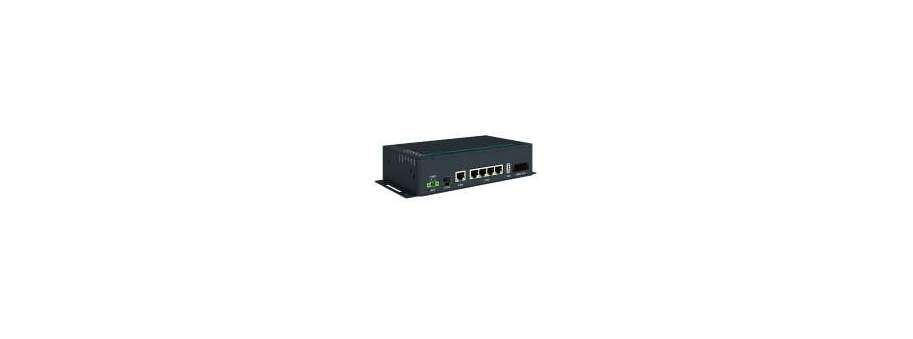

The ICR-4401 is a High-Speed Wired Router & Powerful Edge Computing Gateway. This router is an ideal solution for critical industrial systems and IIoT. It serves well also for connection of traffic and security camera systems, individual computers, LAN networks and various self-service terminals. The new router platform “v4” provides intelligence at the network edge with an extremely powerful Cortex A72 CPU at 1200 MHz, 4 GB eMMC memory, 4 MB flash memory, and 1024 MB RAM. The focus on high security underlines using TPM 2.0, and Tamper Button that ensure safe use in critical infrastructure systems.The ICR-4401 is powered by the ICR-OS Linux operating system that provides a wide range of enhanced networking features. A secure Web interface allows users to configure and manage routers from remote locations.
- Quad-core CPU with 1 GB RAM
- 5× Gigabit Ethernet (Optional 4× POE+ PSE)
- SFP Connector for SFP modules up to 10 Gbps
- TPM 2.0
- RS232, RS485, CAN BUS, 2× DI, 2× DO, USB Host
- Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range
- Optional Dual-Band Wi-Fi
Additional information
System |
|
| CPU | Quad-Core ARM Cortex-A72, 1200 MHz |
| Memory |
RAM - 1024 MB eMMC - 4096 MB (838 MB for Router Apps, 512 MB for customer data) |
| Watchdog | HW Watchdog |
| RTC | Battery backup RTC |
| TPM | Trusted Platform Module (TPM) 2.0 |
Interfaces |
|
| Ethernet | 5× Ethernet (4+1), RJ45, 10/100/1000 Mbps *Optional 4× PoE PSE, IEEE 802.3at, 25.5W (PoE use is limited – see the ICR-4401 user manual) |
| SFP Cage | 1× SFP cage (up to 10 Gbps) |
| Serial Lines |
|
| I / O |
|
| USB | 1× USB 2.0 Host Connector |
| MicroSD Card | 1× Micro SD Card Slot |
| Reset Button | Reboot / Factory reset |
| LED Indicators | System, User, 2× Input, 2× Output, ETH |
Environmental |
|
| Power Supply | 9 – 48 V DC (2-pin terminal block) |
| Consumption |
|
| Sleep Mode | Yes, 24 mW, 310 mW for PoE PSE |
| Operating Temperature |
|
| Storage Temperature | -40 to +85 °C |
| Humidity | 0 to 95 % |
| IP Cover | IP30 |
Physical Characteristics |
|
| Dimensions | 47 × 109 × 195 mm |
| Enclosure | Robust Metal Case, Grounding Screw |
| Mounting | Wall Mounting, DIN Rail (optional) |
| Weight | 1350 g |
WiFi - optional (ICR-4401W, ICR-4401WS, ICR-4401W1, ICR-4401W1S |
|
| Antenna | 3× R-SMA connectors, 3×3 MIMO |
| Standards | IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz |
| Data Rate |
|
| Security | WEP, WPA, WPA2, WPA3, 802.1X |
| Modes | Access Point (unlimited clients), Station, Multirole STA & AP |
WiFi - optional (ICR-4401W3, ICR-4401W3S) *planned* |
|
| Antenna | 2× R-SMA connectors, 2×2 MIMO |
| Standards | IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz |
| Data Rate |
|
| Security | WEP, WPA, WPA2, WPA3, 802.1X |
| Modes | Access Point (unlimited clients), Station, Multirole STA & AP |
Standards & Regulations |
|
| Radio | EN 301 893, EN 300 328 |
| EMC | EN 301 489-1, EN 301 489-17, EN 610000-6-2, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 |
| Safety | EN 62368-1, IEEE 802.3 |
| Transportation | E-mark |
| National | CE, UKCA |
| Mechanica | EN 60068-2-27, EN 60068-2-64, EN 60529 |
| Climatic | EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-30 |
| Environmental | RoHS3, Reach, WEEE |
