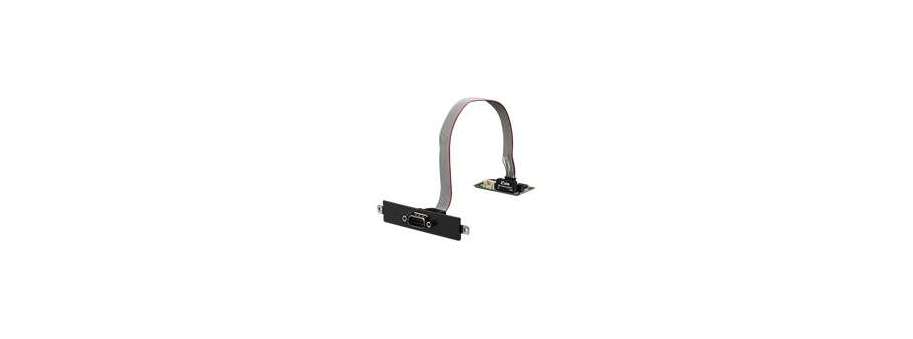

Serial COM module, 1-Ch, USB I/F (-40 to +85° C) with cable and iDoor bracket Advantech MOS-2220-Z1101E

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-2220-Z1101E Мережевий пристрій/Перетворювач інтерфейсів High Speed Serial COM module, 1-Ch, USB I/F,  4 755,7
  • USB to 1x High Speed Serial COM port module
  • Full size Mini PCIe & Module type combo
  • Support High Speed RS232/ RS422/ RS485 port

Additional information

Specifications

Technology High Speed Serial COM type
Host site Interface Combo USB (Internal/ External) Interface
Serial COM Connector 2.0 mm, 2x5-pins, male pin header
Support Voltage and Current + 5.0 V, 100 mA
LED Status
  • Power On/Off: Red LED
  • UART Tx Active: Green LED
O.S Support Windows 2000/ XP/ Vista/ 7/ 8 (32 and 64-bits), WinCE (5.0, 6.0), Linux (2.6.32 or later)
Temperature Ranges
  • Operation: -40 to +85° C
  • Storage: -40 to +85° C
Dimensions (L x W x H) 50.59 x 30 x 13 mm
