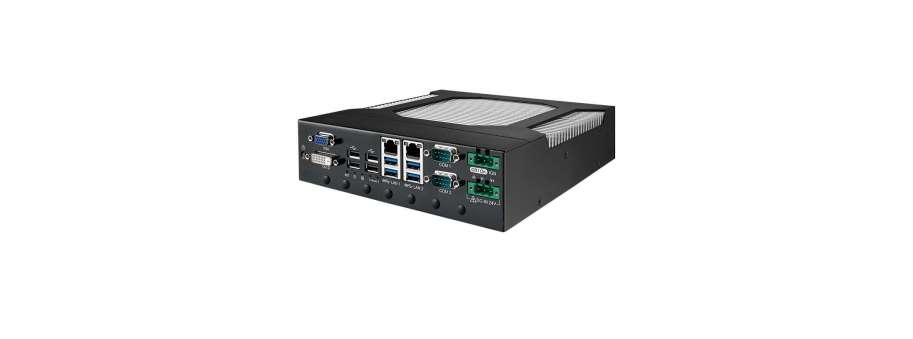

Compact computer system with rich I/O interfaces on 24-core Intel® Core™ i9/i7/i5/i3 Processor 14th gen Vecow VCM-1000
Vecow VCM-1000 Series is powered by 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) with advanced performance hybrid architecture and support for PCIe 5.0 and DDR5 memory up to 96GB, delivering exceptional performance and scalability. The VCM-1000 features rich I/O interfaces with 6 independent GigE LAN with 4 PoE+, up to 12 USB, 2 COM, and 36 Isolated DIO. Aimed at industrial IoT applications, VCM-1000 is compact, with a 2U half-rack design, supports software ignition control, TPM 2.0 and allows for -25°C to 75°C wide range operating temperature, making it ideal for demanding workloads such as digital factory, public security, mobile robots, and any Edge AI applications.
- 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, codename : RPL-S Refresh/RPL-S/ADL-S) running with Intel® H610E PCH
- 2 DDR5 5200MHz SO-DIMM, up to 96GB Memory
- 2 Independent GigE LAN
- 8 USB, 2 COM RS-232/422/485
- WiFi/4G/3G/LTE/GPRS/UMTS, M.2 Key E, M.2 Key B
- Software Ignition Control, TPM 2.0, Intel® TCC, Wake on LAN, PXE
- Compact 2U half-rack design, -25°C to 60°C wide range operating temperature
- Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI application
Additional information
System |
|
| Processor |
- 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh) －24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) －16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S) |
| Chipset | Intel® H610E |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR5 5200MHz SO-DIMM, up to 96GB (Non-ECC) |
| OS | Windows 10, Window 11, Linux |
I/O Interface |
|
| Serial | 2 COM RS-232/422/485 |
| USB | 4 USB 3.2 (External), 4 USB 2.0 (External), 2 USB 2.0 (Internal) |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 1 SIM Card Socket (Internal) |
Expansion |
|
| M.2 |
- 1 M.2 Key B Socket (2280/3052/3042, PCIe, SATA, USB 2) - 1 M.2 Key E Socket (2230, PCIe) |
Graphics |
|
| Graphics Processor | Intel® UHD Graphics 770 driven by Intel® Xe Architecture |
| Interface |
- 1 VGA : Up to 1920 x 1200 @60Hz - 1 DVI-D : Up to 1920 x 1200 @60Hz |
Storage |
|
| SATA | 1 SATA III (6Gbps) |
| M.2 | 1 M.2 Key M Socket (2280/22110, PCIe x2, SATA) |
| Storage Device | 1 2.5" SSD/HDD Bracket (Internal) |
Ethernet |
|
| LAN 1 | Intel® I219LM GigE LAN |
| LAN 2 | Intel® I210 GigE LAN |
Power |
|
| Power Input | 24V DC Power Input |
| Power Interface | 3-pin Terminal Block : V+, V-, GND |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
Others |
|
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechanical |
|
| Dimension | 200 x 200 x 55 (mm) |
| Weight | 2.5kg (5.51 lb) |
| Mounting |
- Wallmount by mounting bracket - VESA Mount (Optional) - DIN Rail Mounting (Optional) |
Environment |
|
| Operating Temperature |
35W CPU : -25°C to 60°C (-13°F to 140°F), with air flow 65W CPU : -25°C to 45°C (-13°F to 113°F), with air flow |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @60°C |
| Shock |
- IEC 60068-2-27 - SSD : 50G @wallmount, Half-sine, 11ms |
| Vibration |
- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE, FCC |
