9/8th Generation Intel® Core™ Series Processors, Expandable and Modular Rugged pc, Supports up to 2x PCI/PCIe Cincoze DS-1200
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| DS-1200-R10 | Компактний комп'ютер Cincoze DS-1200-R10, 9/8th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer | 64 892,2 | |
| DS-1201-R10 | Компактний комп'ютер Cincoze DS-1201-R10, 9/8th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot | 66 460,8 | |
| DS-1202-R10 | Компактний комп'ютер Cincoze DS-1202-R10, 9/8th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slots | 67 121,3 |

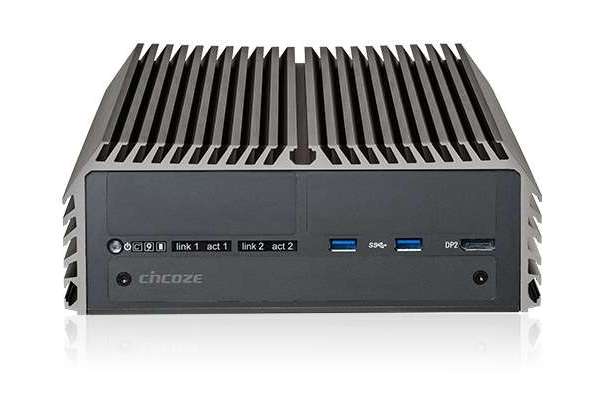

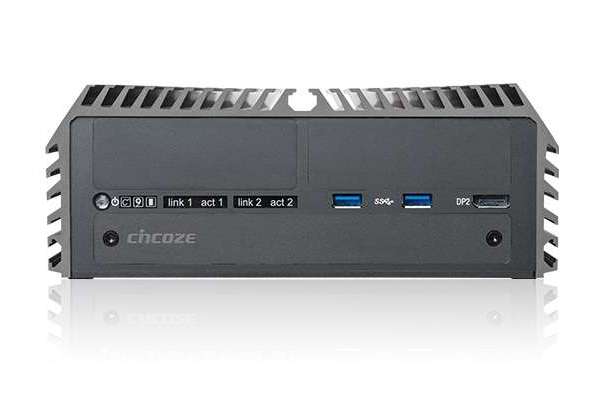

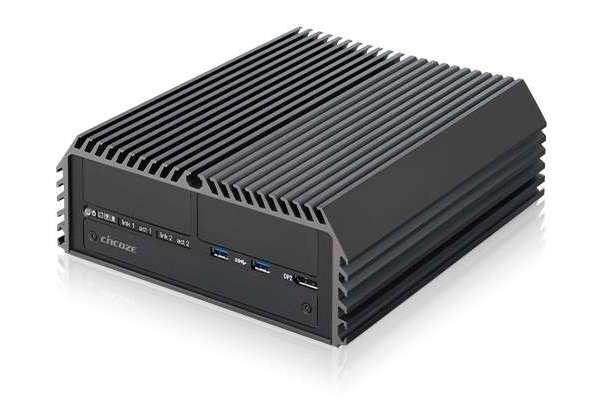

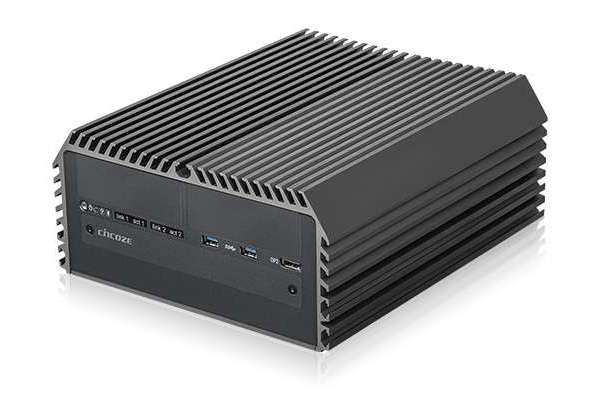

DS-1200 Series is a high performance fanless embedded computer, powered by 9/8th Generation Intel® Core™ processor (Coffee Lake) with up to 8 cores and 64GB DDR4 memory capacity for unprecedented performance to fulfill all kinds of high-end computing requirements. The system also incorporates rich I/O, such as 2x Intel® GbE ports, 2x USB 3.1 (Gen2), 4x USB 3.0, 1x DVI-I, 2x DisplayPort, and 1x M.2 Key M 2280 socket for ultra-fast data transfer speed. Based on Cincoze’ innovative CMI & CFM Technology, it allows users to expand I/O and functionalities through ready-to-use modules, such as GbE/PoE ports, serial ports, optical isolated digital I/O and power ignition function. Furthermore, DS-1200 Series is available with two PCI(e) expansion slots to accommodate versatile add-on cards. Designed to operate under harsh conditions, DS-1202 has passed rigorous testing like EN50121-3-2 and EN60950-1 to fulfill industrial applications such as rolling stock. Besides, DS-1202 features with wide operating temperature (-40°C to 70°C), wide range DC power input (from 9V to 48V), high tolerance of shock/vibration (5G/50G), and industrial-grade protections (OVP, OCP, ESD Surge, ...etc).
- Supports 9/8th Generation Intel® Core™ / Pentium® / Celeron® Octa Cores 35W/65W LGA 1151 Processors
- 2x DDR4 SO-DIMM Socket, Supports Up to 2666MHz, 64GB
- Triple Independent Displays: 1x DVI-I and 2x DP (4K Resolution)
- 1x M.2 2280 M Key Socket, Auto-detection for PCIex4 NVMe SSD or SATA Gen3 SSD
- 2x Front Accessible SIM Card Slots for Signal Redundancy
- Up to 2x PCI/PCIe expansion slots
- 4x CMI Slots for Modular I/O Expansions
- 1x CFM Slot for Power Ignition Sensing Function
- Wide Operating Temperature (-40°C to 70°C )
- EN50121-3-2 Certified / LVD EN62368-1
Additional information
System |
|
| Processor |
• 9th Generation Intel® Coffee Lake-R S Series CPU: - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel® Coffee Lake S Series CPU: - Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W - Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W - Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W - Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W |
| Chipset | Intel® Q370 |
| BIOS | AMI 32MB SPI BIOS |
| Memory |
|
Graphics |
|
| Graphics Engine |
|
Audio |
|
| Audio Codec |
|

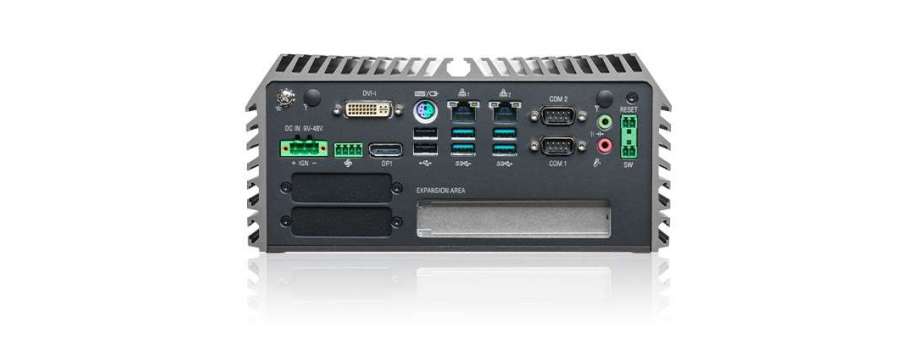

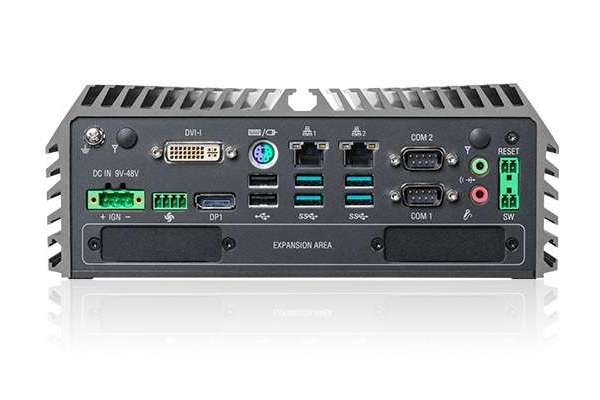

I/O |
|
| Connector | 1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz) |
| DisplayPort | 2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160. |
| LAN |
2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I219-LM |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| USB |
|
| mini-DIN | 1x PS/2, 6-pin mini-DIN Female Connector |
| Mic-in | 1x Line-out & 1x Mic-in, Phone Jack 3.5mm |
| Power On/Off Switch Button | 1x ATX Power On/Off Switch |
| Mode Switch | 1x AT/ATX Mode Switch |
| CMOS Switch | 1x Clear CMOS Switch |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-Pin Terminal Block |
| Terminal Block |
|
Storage |
|
| SSD / HDD | 2x 2.5" SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable Supports RAID 0/1 |
| mSATA | 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable |
| M.2 | 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3) |
Expansion |
|
| Mini PCIe | 3x Full-size Mini-PCIe Socket |
| SIM Socket | 2x SIM Socket |
| CFM (Control Function Module) Interface | 1x CFM (Control Function Module) Interface |
| CMI (Combined Multiple I/O) Interface |
|
| Antenna | 2x Antenna Hole |
| PCI/PCIe Expansion |
DS-1200: - DS-1201: 1x PCI/PCIe Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm DS-1202: 2x PCI/PCIe Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm |
Other Function |
|
| Instant Reboot | Support Instant Reboot Technology (0.2 sec) |
| CMOS | SuperCap Integrated for CMOS Battery Maintenance-free Operation |
| WatchDog Timer | Software Programmable Supports 256 Levels System Reset |
Power Requirement |
|
| Power Type | AT / ATX |
| Power Supply Voltage | 9~48VDC |
| Terminal | 1x 3-Pin Terminal Block |
| Power Adapter | Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional) |
Physical |
|
| Dimension ( W x D x H ) |
DS-1200: 227 x 261 x 88 mm DS-1201: 227 x 261 x 108 mm DS-1202: 227 x 261 x 128 mm |
| Weight |
DS-1200: 4.3 kg DS-1201: 4.92 kg DS-1202: 5.14 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | Wall Mounting |
| Physical Design |
|
Protection |
|
| Reverse Power Input Protection | Yes |
| Over Voltage Protection |
|
| Over Current Protection | 15A |
Operating System |
|
| Windows | Windows® 10 |
| Linux | Supports by project |
Supports by project |
|
| Operating Temperature |
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) |
| Shock |
Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 |
| Vibration |
Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 |
| MTBF | 396,565 Hours |
| EMC |
|
| EMI |
|
| EMS |
|
| Safety | LVD IEC/EN 62368-1 |
