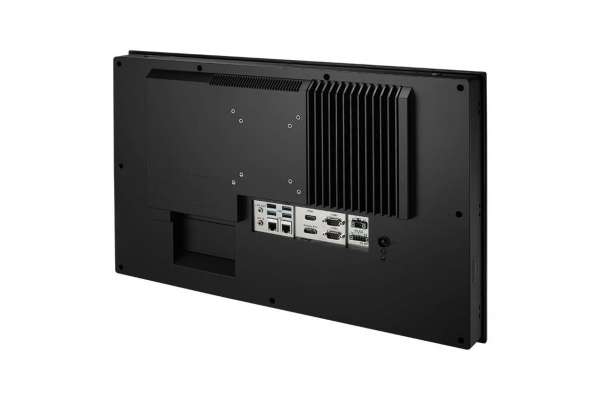

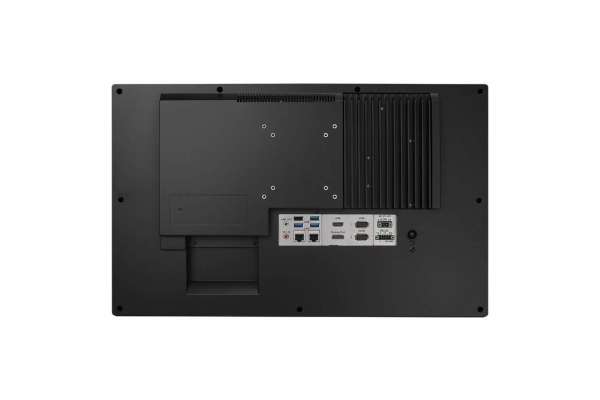

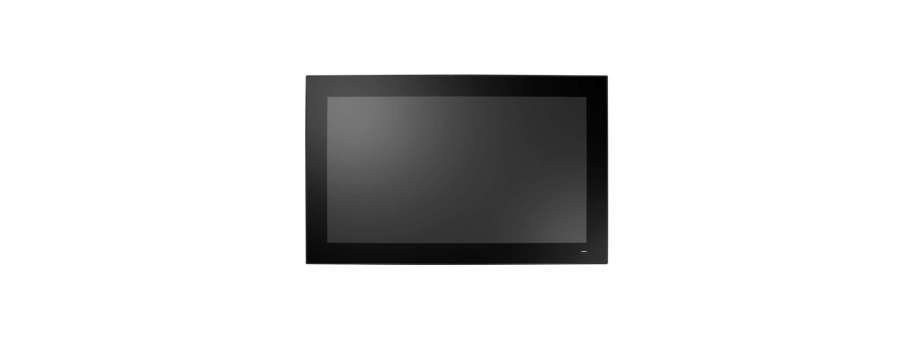

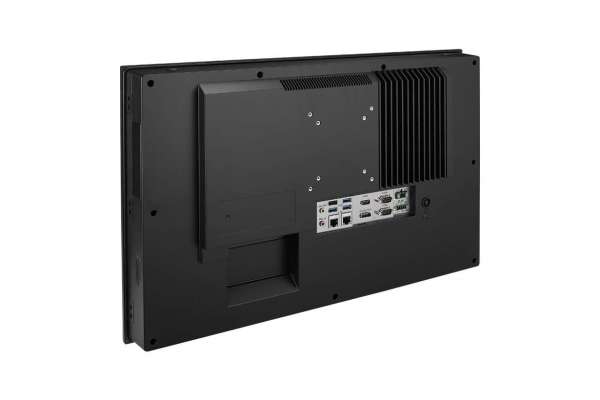

21.5" Fanless Widescreen Panel PC with Intel® 13th Gen Core™ i7/i5/i3 Processor Advantech PPC-421W
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PPC-421W-PD3A | Панельний комп'ютер Advantech, 21.5" PPC w/Intel i3-1315URE, P-CAP | 123 670,0 | |
| PPC-421W-PD5A | Панельний комп'ютер Advantech, 21.5" PPC w/Intel i5-1345URE, P-CAP | 137 311,0 | |
| PPC-421W-PD7A | Панельний комп'ютер Advantech, 21.5" PPC w/Intel i7-1365URE, P-CAP | 153 051,0 |
Designed for high-performance computing 13th gen applications, PPC-421W with a 21.5" FHD provides a superior human-machine interface and reliability, with multi-touch screen, rich I/O and aluminum alloy front bezel. The inclusion of PCIe/PCI slot for fieldbus or proprietary card expansion increases the system’s compatibility for diverse applications. In addition, Time Sensitive Network(TSN)configuration integrated allows more possibilities for optimized industrial applications.
- 21.5" true-flat Full HD LCD panel with projected capacitive touchscreen, anti-glare coating
- Intel® Core™ i7-1365URE/i5-1345URE/i3-1315URE processor with fanless system design
- Supports PCIe x4 or PCI expansion
- 1 x isolated RS-422/485 with auto flow
- Wide input power range (9 ~ 32 VDC)
- Dual 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
- 3 x Independent displays
- 1 x M.2 bay (2242/2280) for storage only
- Support TPM2.0 hardware security
- Supports VESA 75/100 mounting interface
Additional information
System |
|||
| CPU | i7-1365URE | i5-1345URE | i3-1315URE |
| Core | 10 | 10 | 6 |
| Frequency | 1.70 GHz upto 4.9 GHz with Turbo | 1.40 GHz upto 4.6 GHz with Turbo | 1.20 GHz upto 4.5 GHz with Turbo |
| Cache | 12 MB Intel® Smart Cache | 12 MB Intel® Smart Cache | 10 MB Intel® Smart Cache |
| Memory | 2 x SODIMM, DDR5 4800, max. 32GB x 2 | 2 x SODIMM, DDR5 4800, max. 32GB x 2 | 2 x SODIMM, DDR5 4800, max. 32GB x 2 |
| Storage | 2 x 2.5" SATA bay (Max. 7mm) 1 x M.2 2242/2280 M Key slot for Storage (SATA or NVME PCIe x 4 , support SATA RAID) | 2 x 2.5" SATA bay (Max. 7mm) 1 x M.2 2242/2280 M Key slot for Storage (SATA or NVME PCIe x 4 , support SATA RAID) | 2 x 2.5" SATA bay (Max. 7mm) 1 x M.2 2242/2280 M Key slot for Storage (SATA or NVME PCIe x 4 , support SATA RAID) |
| Network (LAN) | 2 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2.5G | 2 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2.5G | 2 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2.5G |
| I/O |
|
|
|
| Expansion |
|
|
|
| Watchdog Timer | 255 timer levels, set up by software | 255 timer levels, set up by software | 255 timer levels, set up by software |
| Security | 1 x TPM2.0 | 1 x TPM2.0 | 1 x TPM2.0 |
| Speaker | 2 x 1W | 2 x 1W | 2 x 1W |
Physical Characteristics |
|||
| Dimensions | 558.4 x 349.8 x 63.8 (22.0 x 13.7 x 2.5 in) | 558.4 x 349.8 x 63.8 (22.0 x 13.7 x 2.5 in) | 558.4 x 349.8 x 63.8 (22.0 x 13.7 x 2.5 in) |
| Enclosure | Front bezel: Die cast aluminum alloy Rear: PC+ABS | Front bezel: Die cast aluminum alloy Rear: PC+ABS | Front bezel: Die cast aluminum alloy Rear: PC+ABS |
| Mounting | Panel / VESA (75/100) | Panel / VESA (75/100) | Panel / VESA (75/100) |
| Weight | 7.7 kg (17.1 lb) | 7.7 kg (17.1 lb) | 7.7 kg (17.1 lb) |
OS Support |
|||
| OS Support | Microsoft® Windows 11 (64-bit), Win 10 IOT LTSC, Linux | Microsoft® Windows 11 (64-bit), Win 10 IOT LTSC, Linux | Microsoft® Windows 11 (64-bit), Win 10 IOT LTSC, Linux |
Power Consumption |
|||
| Input Voltage | 9 ~ 32 VDC | 9 ~ 32 VDC | 9 ~ 32 VDC |
| Power Consumption | i5-1345URE Typ.75W Max.110W (Burn-in test 8.1 in Windows 10 64bit) | i5-1345URE Typ.75W Max.110W (Burn-in test 8.1 in Windows 10 64bit) | i5-1345URE Typ.75W Max.110W (Burn-in test 8.1 in Windows 10 64bit) |
LCD |
|||
| Display Type | 21.5" TFT LCD (LED backlight) | 21.5" TFT LCD (LED backlight) | 21.5" TFT LCD (LED backlight) |
| Max. Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Viewing Angle | 89 (Left), 89 (Right), 89 (Up), 89 (Down) | 89 (Left), 89 (Right), 89 (Up), 89 (Down) | 89 (Left), 89 (Right), 89 (Up), 89 (Down) |
| Luminance (cd/m2) | 350 | 350 | 350 |
| Contrast Ratio | 1000 | 1000 | 1000 |
| Backlight Lifetime | 30,000 hr (min.) | 30,000 hr (min.) | 30,000 hr (min.) |
Touchscreen |
|||
| Touch Type | Multi-touch projected capacitive | Multi-touch projected capacitive | Multi-touch projected capacitive |
| Light Transmission | 88 % ± 2 % | 88 % ± 2 % | 88 % ± 2 % |
| Controller | USB interface | USB interface | USB interface |
Environment |
|||
| Operating Temperature | -20 ~ 60 °C (-4 ~ 140 °F) | -20 ~ 60 °C (-4 ~ 140 °F) | -20 ~ 60 °C (-4 ~ 140 °F) |
| Storage Temperature | -30 ~ 60 °C (-22~140 °F) | -30 ~ 60 °C (-22~140 °F) | -30 ~ 60 °C (-22~140 °F) |
| Relative Humidity | 95% @ 40 °C (Non-Condensing) | 95% @ 40 °C (Non-Condensing) | 95% @ 40 °C (Non-Condensing) |
| Shock | Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 | Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 | Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 |
| Vibration | Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, Follows IEC 60068-2-64 | Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, Follows IEC 60068-2-64 | Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, Follows IEC 60068-2-64 |
| EMC | CE, FCC Class B, EN 61000-6-2, BSMI, UKCA | CE, FCC Class B, EN 61000-6-2, BSMI, UKCA | CE, FCC Class B, EN 61000-6-2, BSMI, UKCA |
| Safety | CB, UL, CCC, UKCA | CB, UL, CCC, UKCA | CB, UL, CCC, UKCA |
| Front Panel Protection | IP66 compliant | IP66 compliant | IP66 compliant |
