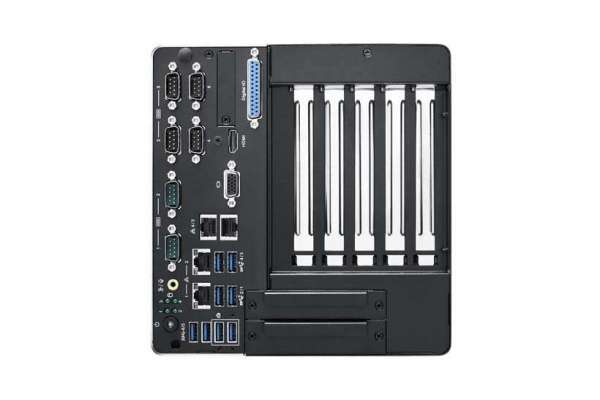

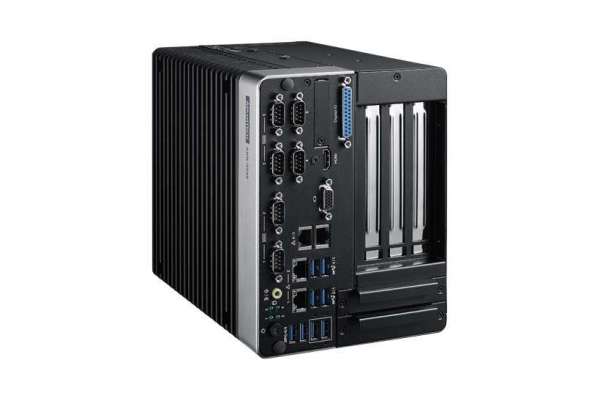

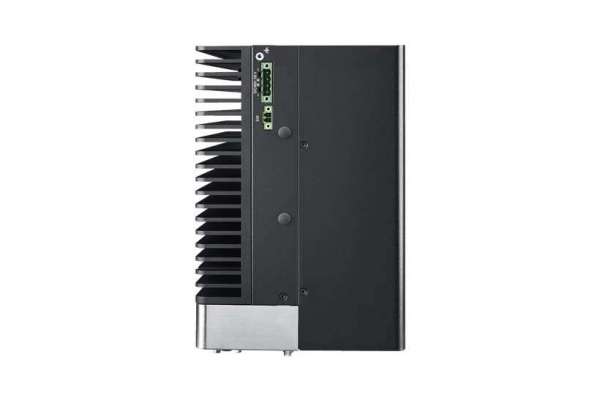

Intel® 10th Gen Xeon® W / Core™ i LGA1200 Expansion Fanless Box PC Advantech ARK-3532B/ ARK-3532C
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-3532B-00A1 | Компактний промисловий комп'ютер Advantech ARK-3532 Intel CML W480E PCIex4+PCIex16, 9-36V | 70 244,1 | |
| ARK-3532B-00A2 | Компактний промисловий комп'ютер Advantech ARK-3532 Intel CML W480E PCIex4+PCIex16, 9-36V no Audio | 65 364,8 | |
| ARK-3532C-00A1 | Компактний промисловий комп'ютер Advantech ARK-3532 Intel CML W480E PCIex4+2*PCI, 9-36V | 70 244,1 | |
| ARK-3532C-00A2 | Компактний промисловий комп'ютер Advantech ARK-3532 Intel CML W480E PCIex4+2*PCI, 9-36V no Audio | 66 622,8 | |
| ARK-3532D-00A1 | Компактний промисловий комп'ютер Advantech ARK-3532 Intel CML W480E PCIex4+PCIex16+2*PCI, 9-36V | 73 082,2 |
- Support Intel® 10th Gen. Xeon® W and Core™ i3/i5/i7/i9 processor
- Triple independent display: VGA + HDMI + Optional Display
- DDR4 SO-DIMM ECC/non-ECC memory support up to 64 GB
- 9-36VDC wide range power input
- Up to 4sets 2.5" hard drive bays, support Intel® SW RAID
- Support 4GbE, 8USB, 6COM, 16bit DIO, TPM2.0
- SUSI API, WISE-DeviceOn, McAfee and Acronis bundled
- 2 x Independent USB 3.0 with lockable design
Additional information
|
Processor System |
|
| Chipset | W480E |
| BIOS | AMI EFI 256Mbit |
|
Memory |
|
| Technology | DDR4 2933 MHz |
| Max. Capacity | 64 GB |
| Socket | 2 x 260-pin SO-DIMM |
|
Graphics |
|
| Chipset | Intel® UHD Graphics 630 |
| Graphic Engine |
|
| VGA | 1920x1200@ 60Hz |
| HDMI | 1 HDMI port, HDMI 1.4 for HD video playback, 4096x2160@30Hz |
| Optional 3rd Display module | DVI-D / DP / HDMI Display Port |
| Triple Display | VGA+HDMI + 3rd display module |
|
Ethernet |
|
| LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
| LAN2, 3, 4 | 10/100/1000 Mbps Intel I210 GbE, support Wake On Lan |
|
Audio |
|
| Interface | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) |
|
Others |
|
| Watch dog Timer | 255-level timer interval, setup by software |
| TPM | TPM 2.0 (by optional AMO-I029) |
|
I/O Interface |
|
| Serial Port | 4 x RS-232/422/485 port with auto flow control, 2 x RS-232; COM3 support 5V/12V power supply (by jumper) |
| USB | 4 x USB 3.2 (10Gbs),2 x USB 3.0, 2 x Independent USB 3.0 |
| GPIO | 16bit GPIO |
|
Expansions |
|
| Mini PCIe | 1 x Full-size Mini PCIe (1 x support mSATA, 1 x support SIM holder) #1 |
| M.2 | 1 x E key for WiFi #1 |
| Add-on Card Slot |
1 Slot PCIex4 + 1 Slot PCIex16 Suggest maximum power consumption 10W for each slot Support add-on card power consumption up to 120W for PCIe*16 slot If add-on card power consumption over 30W , an external adapter (must need be 12V with LOCKABLE DC JACK , and more than 120W) and AMO-3508 is required to use in ARK-3532B for power and thermal solutions (for ARK-3532B) 1 Slot PCIex4 + 2 Slot PCI Suggest maximum power consumption 10W for each slot (for / ARK-3532C) |
| Maximum card size | 110mm (H) x 180mm (L) |
| Storage | |
| HDD | 2 x 2.5" SATAIII 15mm height HDD bay support Intel SW RAID (Up to 4 x 2.5" SATAIII HDD bays by optional AMK-A0035) |
| mSATA | 1 x mSATA socket (Share with Mini PCIe) |
|
Software Support |
|
| Microsoft Windows | Windows 10 |
| Linux | By Project Support |
|
Power Requirements |
|
| Power Type | AT/ATX |
| Power Input Voltage | 9-36V |
| Power Adapter | AC to DC, 230W (Optional) |
|
Power Consumption (CPU/Memory Only) |
|
| Typical | 30W |
| Max. | 64.8W |
|
Mechanical |
|
| Construction | Aluminum housing |
| Mounting | Desk mounting |
| Dimensions (W x H x D) | 156 x 204 x 230 mm |
| Weight | 5.705Kg |
|
Environment |
|
| Operating Temperature | Up to 65W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow with HDD: 0 ~ 40° C with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85° C |
| Relative Humidity | 95% @ 40° C (non-condensing) |
| Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| EMC | CE/FCC Class B, CCC, BSMI |
| Safety | CB, UL, CCC, BSMI |
#1 SIM holder and M.2 slot are hardware interfaces for wireless communication integration only. System level RF certification is not available
