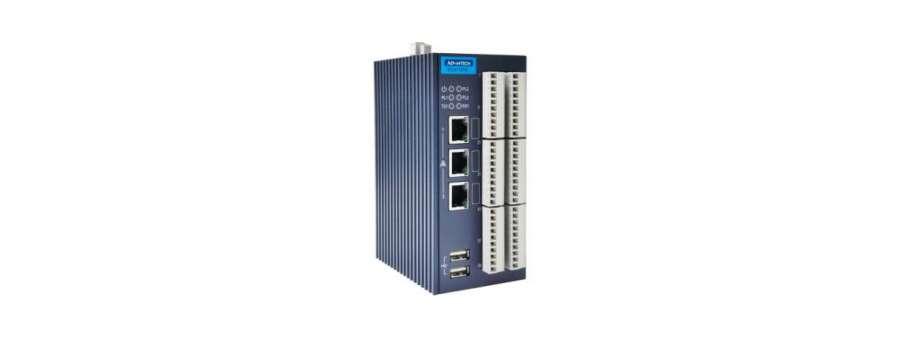

NXP i.MX8M Quad Core Cortex A53 High-Performance IoT Gateway with 3 x 10/100/1000 Ethernet ports Advantech ECU-1370
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ECU-1370-531A | High IO Integrated Computing Gateway | 39 748,0 |
The ECU-1370 is a high-performance IoT gateway based on the i.MX8M platform. It features an open platform design with a Quad Core processor, three 100/1000 Ethernet ports, multiple communication and DIO ports, and can operate within a temperature range of -40 to 80°C. Running on the Ubuntu 22.04 operating system, the ECU-1370 empowers system integrators to develop applications tailored for solar power, electricity, and factory environments that demand extensive data collection and cloud-based functionality. As a result, it offers a best-in-class solution for energy storage systems.
- NXP i.MX8M Quad Core Cortex A53 1.3G CPU
- DDR4 4GB RAM, 32GB eMMC for system storage
- 1 x RS-232/485 isolated serial ports, 1 x CAN
- 3 x 10/100/1000 Ethernet ports
- 24 DI and 6 DO (Relay)
- Operating temperature -40~80°C
Additional information
General |
|
| Certification | UL, CB, CE, FCC, UKCA |
| Power Input | 24VDC (10~30VDC), 2-pin screw terminal |
| Typical Power Consumption |
|
| Operating Temperature | -40°C to 80°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity rating | 95% non-condensing |
| Protection Class | IP30 |
| Dimensions (D x W x H) | 93 x 65.3 x 140 mm |
| Mounting | DIN Rail |
System |
|
| CPU | NXP i.MX8M Quad Core Cortex A53 1.3G |
| Memory | 4GB LPDDR4 |
| Storage | 32GB eMMC (64GB Optional) |
| SD Slot | 1 x Micro-SD slot |
| USB | 2 x USB2.0 |
LED Indicators |
Power, LAN (LINK, ACT), Serial (Tx, Rx), 3 x Programmable LED |
| Watch Dog Timer | YES |
| RTC | YES |
| Console Port | 1 x USB Type C, 115200bps |
Digital Input |
|
| Channel | 24 |
| Connectors Type | Terminal blocks |
| Input Filter | Programmable, default 3ms |
| Isolation | YES, 2000 VDC |
| Pulse Input Frequency | 150Hz |
| Wet Contact |
|
Relay Output |
|
| Channel | 6 |
| Connectors Type | Terminal blocks |
| Relay Type |
|
| Contact Rating | 30 VDC @ 3A |
| Mechanical Endurance | 1 x 107 operations |
| Isolation Between Open Contacts | 750 VAC for 1 minute |
| Isolation Between Coil & Contacts | 4000 VAC for 1 minute |
| Flyback Diode | YES |
| Relay On Time | 10 ms |
| Relay Off Time | 5 ms |
| Insulation Resistance | 100MΩ min. at 500 VDC |
Ethernet |
|
| Connectors | 3 x RJ45 |
| Speed | 10/100/1000 Base-T Ethernet |
| LED State | Green (Link)/Yellow OR Green (Speed) |
