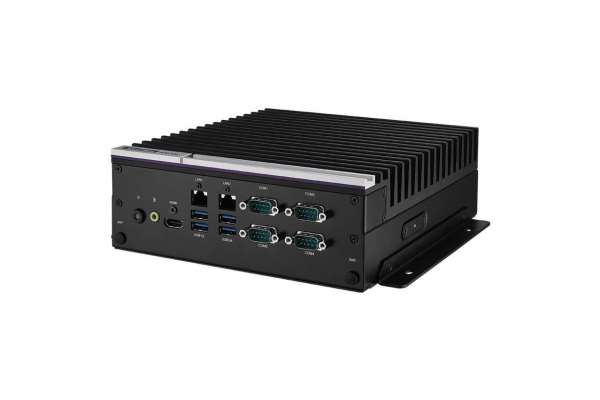

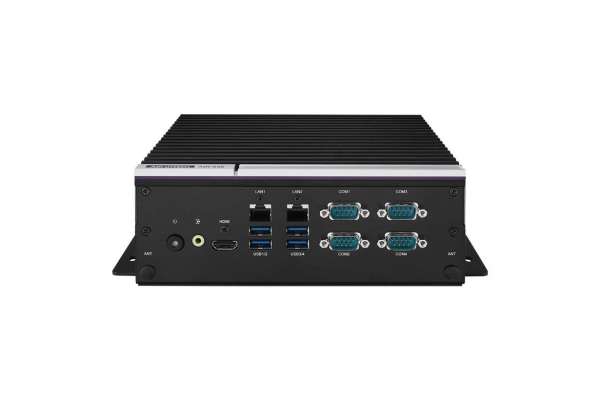

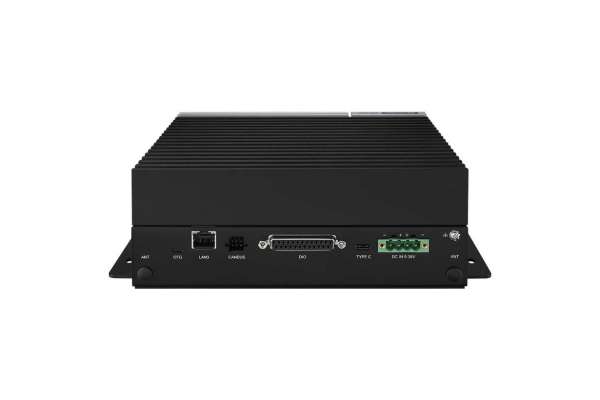

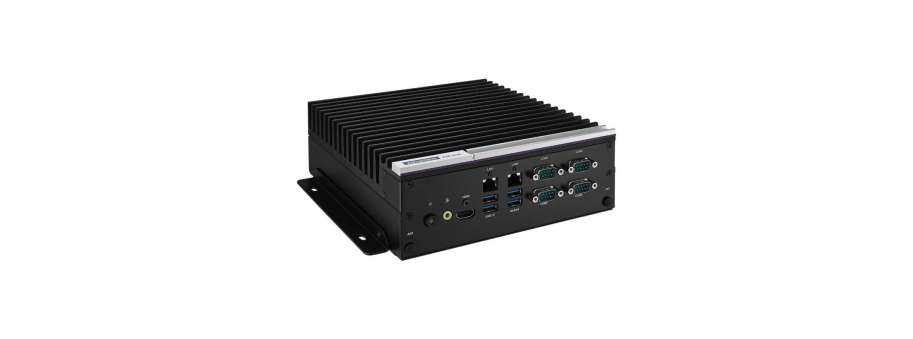

Compact AI Inference System Based on NVIDIA® Jetson AGX Orin™ Advantech AIR-030

Price and avalability

Partnumber Description Price VAT incl Avalability
AIR-030-B90A1 Edge AI NVIDIA AGX Orin 32G inference system  203 024,0
AIR-030-S30A1 Edge AI NVIDIA AGX Orin 64G inference system  298 413,0
  • Compact and high performance AI box up to 275 TOPS AI computing
  • NVIDIA® Jetson AGX Orin™ 32G/64G built-in
  • 9~36V wide power and -10~60 °C wide temp. supported
  • Multiple IO ports: 3 x LAN, DIO, 4x COM, 4x USB 3.2 and USB type C
  • Support various expansions 1 x M.2 2280(NVME), 1 x M.2 2230 and 1 x PCIe x 16 (optional)
  • Pre-load Ubuntu 20.04 image, JetPack 5.0 SDK
  • IEC 61000-6-4 Heavy Industry Certificate
  • AWS Greengrass Certified

Additional information

AIR-030-B90A1 AIR-030-S30A1

Processor System

NVIDIA Jetson Series AGX Orin 32GB AGX Orin 64GB
CPU 8-core NVIDIA Arm® Cortex A78AE v8.2 12-core NVIDIA Arm® Cortex A78AE v8.2
GPU 1792-core NVIDIA Ampere GPU with 56 Tensor Cores, Maximum Operating Frequency: 939 MHz 2048-core NVIDIA Ampere GPU with 64 Tensor Cores| Maximum Operating Frequency: 1.3GHz
AI Performance Reference Up to 200 Sparse TOPs (INT8) Up to 275 Sparse TOPS (INT8)
TDP 15~30W 15~50W
Memory 32GB 256-bit LPDDR5 DRAM 64GB 256-bit LPDDR5 DRAM
Flash 64GB eMMC 5.1 64GB eMMC 5.1

Ethernet

Interface RJ-45 RJ-45
Controller Intel® i225 Intel® i225
Speed 3 x 2.5 Gigabit Ethernet (10/100/1000/2500 Mbps, LAN1&2 optional PoE support) 3 x 2.5 Gigabit Ethernet (10/100/1000/2500 Mbps, LAN1&2 optional PoE support)

Display

HDMI 1 x HDMI 2.0 (Max. resolution 3840 x 2160 @ 60Hz) 1 x HDMI 2.0 (Max. resolution 3840 x 2160 @ 60Hz)

IO Ports

USB
  • 4 x USB 3.2 Type A
  • 1 x USB 3.2 Type C
  • 2 x internal USB 2.0 for dongle only
  • 4 x USB 3.2 Type A
  • 1 x USB 3.2 Type C
  • 2 x internal USB 2.0 for dongle only
OTG USB 1 x Micro USB (for system recovery only) 1 x Micro USB (for system recovery only)
CANBus 2 2
DI/DO 16 bit 16 bit
COM 4 x RS-232/RS-422/RS-485 4 x RS-232/RS-422/RS-485
Audio 1 x Line-out 1 x Line-out

Expansion

M.2 1 x M.2 2230 (E Key) 1 x M.2 2230 (E Key)
PCIe 1 x PCIex16 (Optional, signal: PCIe x 8) 1 x PCIex16 (Optional, signal: PCIe x 8)
MIPI 2 x internal 2-LANE MIPI-CSI connector 2 x internal 2-LANE MIPI-CSI connector

Others

TPM TPM2.0 TPM2.0

Storage

M.2 2280 1 x M.2 2280/3052 (B Key, signal: PCIe x2, USB3.0) 1 x M.2 2280/3052 (B Key, signal: PCIe x2, USB3.0)
SD 1 x SD 3.0 slot 1 x SD 3.0 slot

Power

Power Supply voltage 9~36V 9~36V
Power Type ATX/AT mode, ATX default ATX/AT mode, ATX default

Environment

Operational Temperature With AGX Orin 32GB : -10 ~ 60°C with 0.7 m/s air flow With AGX Orin 64GB: -10~55°C with 0.7 m/s air flow (TDP MODE_50W) With AGX Orin 32GB : -10 ~ 60°C with 0.7 m/s air flow With AGX Orin 64GB: -10~55°C with 0.7 m/s air flow (TDP MODE_50W)
Operating Humidity 95% @ 40 °C (non-condensing) 95% @ 40 °C (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis

Mechanical

Dimensions (W x D x H) 200 x 220 x 74 mm 200 x 220 x 74 mm
Weight 3.63 kg 3.63 kg
Mounting Support Wall mounting Wall mounting

Operating System

Linux Ubuntu 20.04 LTS with JetPack 5.1.2 Ubuntu 20.04 LTS with JetPack 5.1.2

Software Support

Software API Edge AI SDK compatible Edge AI SDK compatible

Certifications

EMC/Safety CE/FCC Class B, CB, UL, CCC and BSMI (No RED Certificate) CE/FCC Class B, CB, UL, CCC and BSMI (No RED Certificate)
