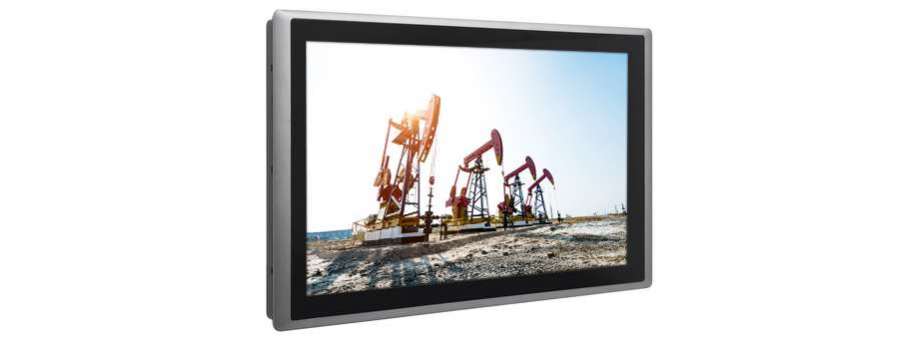

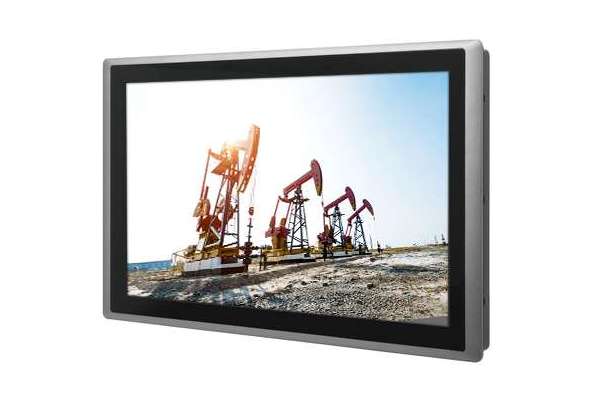

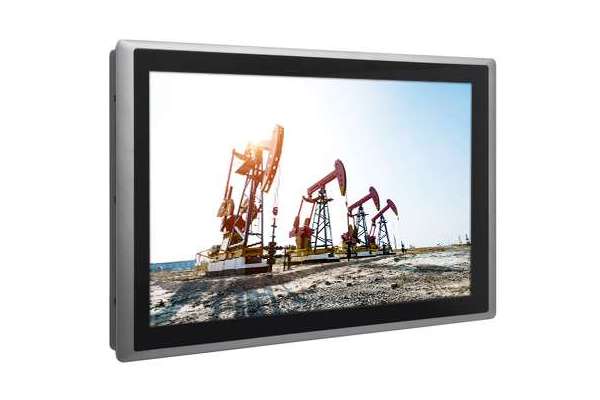

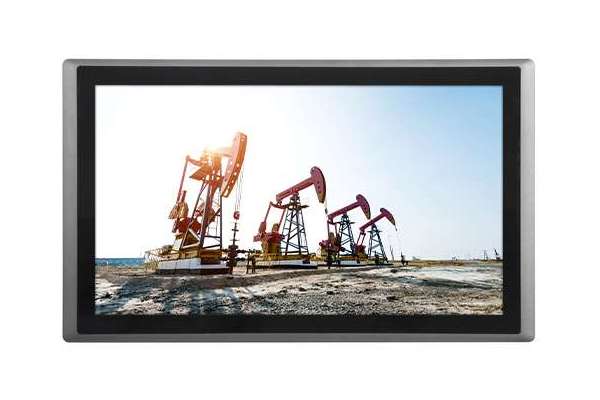

24" TFT-LCD Sunlight Readable Modular Panel PC with 12th Gen. Intel® Core™ Processor Cincoze CS-W124/P2202

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

The CS-100/P2202 series is a sunlight-readable high-performance panel PC that provides ultra-high brightness of up to 1,800 nits. It is equipped with an Intel® Core™ U-series (Alder Lake-P) processor that provides a complete selection of screen sizes, ratios, and brightnesses. Rich I/O, flexible expansion, rugged, easy on-site maintenance, and other features make the CS-100/P2202 series the best choice for outdoor kiosk or HMI applications.

  • 24" TFT-LCD with Projected Capacitive Touch
  • Onboard Intel® Alder Lake-P U-Series Core™ Processor
  • 2x DDR5 SO-DIMM Socket, Supports up to 4800MHz 64GB Memory
  • Ultra High Brightness up to 1,500 nits
  • Quad Independent Display (CDS / HDMI / DP / VGA)
  • 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
  • Designed with Aluminum Die-cast Front Bezel
  • Front Panel IP65 Compliant

Additional information

Display
LCD Size 24” (16:9)
Max. Resolution 1920 x 1080 (Full HD)
Brightness (cd/m2) 1500
Contrast Ratio 5000 : 1
LCD Color 16.7M
Pixel Pitch (mm) 0.27675 (H) x 0.27675 (V)
Viewing Angle (H-V) 178 / 178
Backlight MTBF 50,000 hrs (LED Backlight)

Touch Screen
Touch Type Projected Capacitive

Physical
Dimension ( W x D x H ) 605 x 373 x 63.2 mm
Weight Information 6.64 kg
Mechanical Construction Flat Rugged Aluminum Die-casting Bezel

Environment
Front Panel Protection IP 65 Compliant
Operating Temperature -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature -30°C to 80°C
Relative Humidity 80% RH @ 40°C (Non-condensing)
EMC CE, UKCA, FCC, ICES-003 Class A
EMI
  • CISPR 32 Conducted & Radiated: Class A
  • EN/BS EN 55032 Conducted & Radiated: Class A
  • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
  • EN/BS EN61000-3-3 Voltage fluctuations & flicker
  • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS
  • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
  • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
  • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
  • EN/IEC 61000-4-6 CS: 3V
  • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
  • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Safety UL, cUL, CB, IEC, EN 62368-1

System
Processor

Onboard 12th Generation Intel® Alder Lake-P U-Series CPU:

- Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W

- Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
Memory 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buered and non-ECC Type, Up to 64GB
BIOS AMI BIOS

Graphics
Graphics Engine
  • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE
  • Integrated Intel® UHD Graphics: Core™ i3-1215UE
Maximum Display Output Supports Quad Independent Display
CDS 1x CDS Connector (1920 x 1080 @60Hz)
DP 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
HDMI 1x HDMI Connector (3840 x 2160 @30Hz)
VGA 1x VGA Connector (1920 x 1200 @60Hz)

Audio
Audio Codec Realtek® ALC888, High Definition Audio
Line-out 1x Line-out, Phone Jack 3.5mm
Mic-in 1x Mic-in, Phone Jack 3.5mm

I/O
LAN

2x 1GbE LAN, RJ45

- GbE1: Intel® I219

- GbE2: Intel® I210
COM 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB
  • 3 x USB 3.2 Gen2x1 (10Gbps), Type A
  • 1 x USB 2.0 (480Mbps), Type A
DIO 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block

Storage
SSD/HDD 2x 2.5” SATA HDD/SSD Bay (SATA3.0)
RAID Support RAID 0/1

Expansion
Mini PCI Express 2x Full-size Mini-PCIe Socket
PCI Express • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm (for P2202E)
SIM Socket 1x SIM Socket
M.2 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CFM (Control Function Module) Interface
  • 1x CFM Interface for optional IGN Module Expansion
  • 1x CFM Interface for optional PoE Module Expansion
CDS (Convertible Display System) Interface 1x CDS Interface for Convertible Display Module

Power
Power Button 1x ATX Power On/Off Button
Power Mode Switch 1x AT/ATX Mode Switch
Power Input 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off 1x Remote Power On/Off, 2-pin Terminal Block

Operating System
Windows Windows®11, Windows®10
Linux Ubuntu 22.04

Physical
Dimension( W x D x H )

254.5 x 190 x 41.5 mm (for P2202)

254.5 x 190 x 61 mm (for P2202E)
Weight Information

2.22 kg (for P2202)

2.74 kg (for P2202E)
Mechanical Construction Extruded Aluminum with Heavy Duty Metal

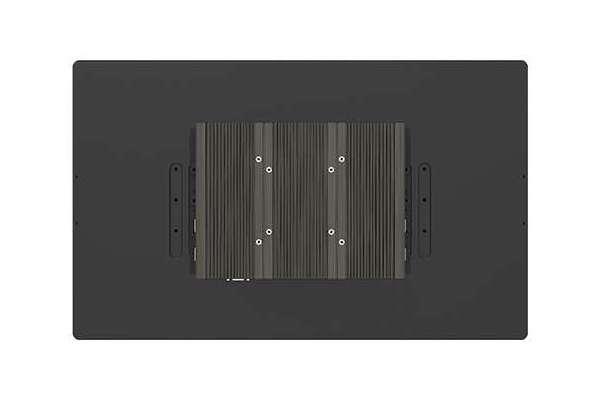

Mounting Wall / VESA / CDS / DIN Rail
Physical Design
  • Fanless Design
  • Jumper-less Design

Environment
Operating Temperature

-40°C to 70°C

* With extended temperature peripherals; Ambient with air flow

* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 70°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration
  • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
  • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
