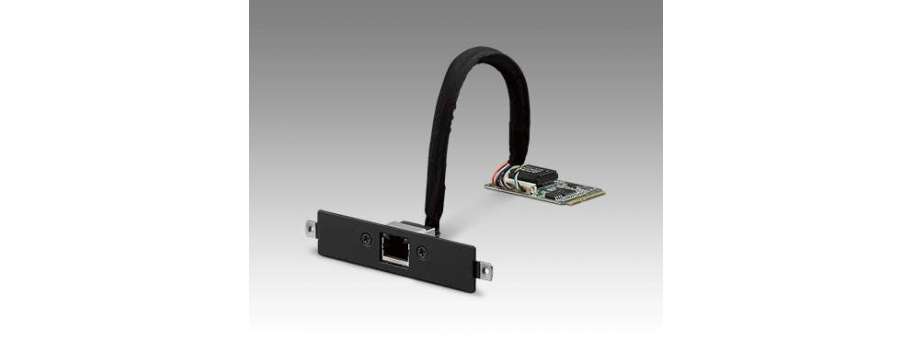

PCIe to GigaLAN Ethernet, 1-Ch, PCIe I/F (-40 to +85° C) with cable and iDoor bracket Advantech MOS-2120-Z1101E

Price and avalability

Partnumber Description Price VAT incl Avalability
MOS-2120-Z1101E Мережевий пристрій/Перетворювач інтерфейсів Giga LAN Ethernet module, 1-Ch, PCIe I/F,  3 181,1
  • PCIe to 1x Ch PCIe to GigaLAN ethernet module
  • Support full duplex operation at 10/100/1000 Mb/s
  • Full size MiniPCIe type. Compliant with PCI Express TM 2.1
  • Compliant with 1Gb/s IEEE 802.3, 802.3u, 802.3ab
  • Wide temperature from -40 to +85 degree

Additional information

Specifications

Technology GigaLAN Ethernet port
Host site Interface MiniPCIe thru PCIe Interface
GigaLAN Connector DF13-14P-1.25H, Wafer Box
Support Voltage and Current + 5.0 V, 100 mA
O.S Support Windows 2000/ XP/ Vista/ 7/ 8 (32 and 64-bits), Linux (2.6.32 or later)
Temperature Ranges
  • Operation: -40 to +85° C
  • Storage: -40 to +85° C
Dimensions (L x W x H) 50.59 x 30 x 15 mm
