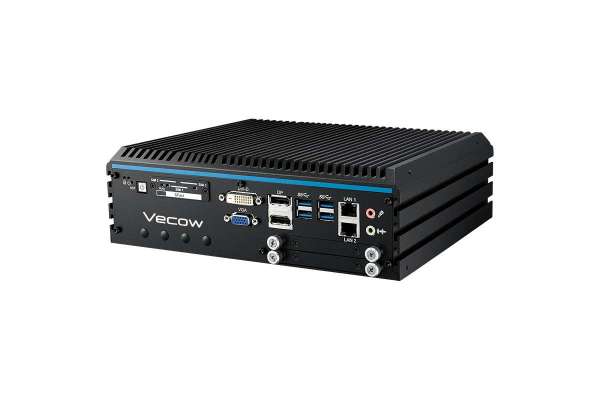

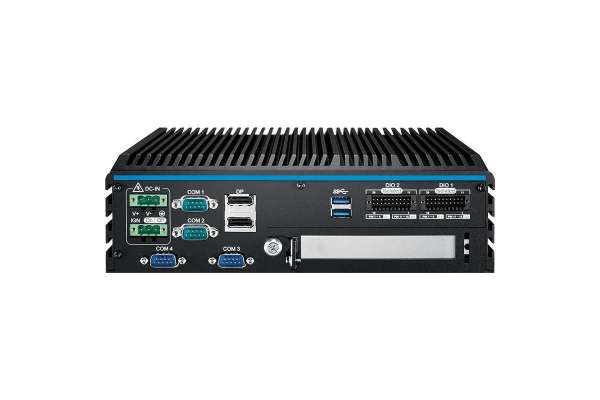

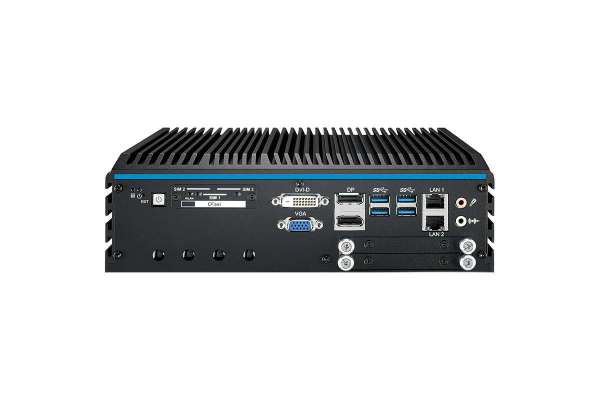

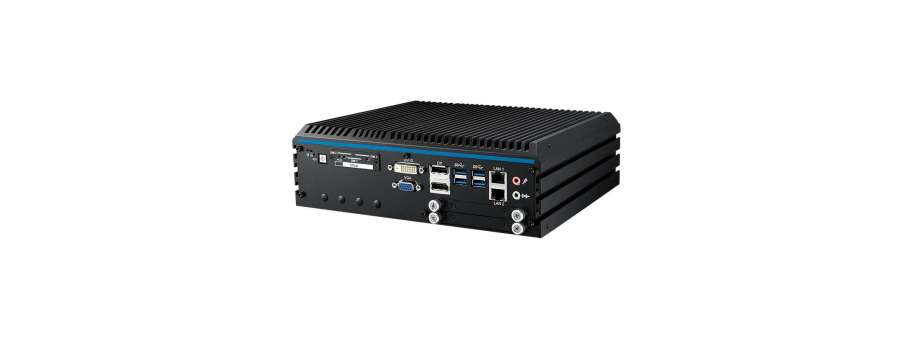

Fanless Workstation on Intel® Xeon®/Core™ i7/i5/i3 7th gen and PCI/PCIe slot, USB 3.0 Vecow EVS-1000
Workstation-grade 7th generation Intel® Xeon®/Core™ i7/i5/i3, compact NVIDIA® GeForce® GTX 1050 Ti/GTX 1050/GT 1030 MXM graphics engine, supports NVIDIA® Pascal™ GPU architecture, up to 8K resolution, Fanless, all-in-one integrated features, multiple I/O connection, 3 SIM sockets for remarkable mobile availability, PCI/PCIe slot, USB 3.0, Isolated DIO, smart manageability, 10V to 36V power input with 80V surge protection, ignition control. Vecow EVS-1000 Series Fanless GPU Computing System makes versatile function possible for Deep Learning, Robot Control, Autonomous Vehicle, Telemedicine, Machine Vision, Intelligent Surveillance and any AI oriented embedded applications.
- Fanless -25°C to 60°C operating temperature
- LGA 1151 socket supports workstation-grade 7th generation Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake/Skylake) with C236 chipset
- Compact NVIDIA® GeForce® GTX 1050 Ti/GTX 1050/GT 1030 MXM graphics engine supports NVIDIA® Pascal™ GPU architecture with 8K resolution
- Display: 1 VGA, 1 DVI, 6 DisplayPort and 7 independent HD display
- 2 Front-access 2.5" SSD trays, 1 CFast socket, 2 SATA III, 6 USB 3.0, 4 COM
- 3 SIM sockets for WiFi/4G/3G/LTE/GPRS/UMTS
- Expansion: 1 PCI/PCIe slot, 3 Mini PCIe, 2 optional SUMIT A, B slots
- 32 Isolated DIO, 10V to 36V DC Power Input with 80V Surge Protection
- Configurable Ignition Control
Additional information
| System | |
| Processor | Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S) |
| Chipset | Intel® C236 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2400/2133 MHz SO-DIMM, up to 64GB (ECC/Non-ECC) |
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8KV) |
| USB |
- 6 USB 3.0 (External) - 1 USB 2.0 (Internal) |
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | Power, HDD |
| SIM Card | 3 External SIM Card Socket |
| Expansion | |
| Mini PCIe |
3 Mini PCIe Socket : 3 Full-size for PCIe/USB/External SIM Card/mSATA |
| PCI/PCIe | 1 PCI/PCIe x4 Slot |
| SUMIT A, B | 2 SUMIT Slot (Optional) |
| Graphics | |
| Processor |
- Intel® HD Graphics 630/P530/530 - NVIDIA® GeForce® GTX 1050 Ti/GTX 1050/GT 1030 (MXM Module) |
| Interface |
Up to 8 Display interfaces: - 1 VGA : Up to 1920 x 1200 @ 60Hz - 1 DVI : Up to 1920 x 1200 @ 60Hz - 2 DisplayPort : Up to 4096 x 2304 @ 60Hz - 4 DisplayPort : Up to 7680 x 3840 @ 60Hz |
| Storage | |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 3 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device |
- 1 CFast Socket, Push-in/Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 11.0 |
| LAN 2 | Intel® I210 GigE LAN |
| Power | |
| Power Input | 10V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension (W x L x H) | 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1") |
| Weight | 4.6 kg (10.14 lb) |
| Mounting |
- Wallmount by mounting bracket - DIN Rail Mount - 2U Rackmount (Optional) |
| Environment | |
| Operating Temperature | -25°C to 60°C (-13°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 60°C |
| Shock | IEC 60068-2-27, SSD: 50G @ wallmount, Half-sine, 11ms |
| Vibration | IEC 60068-2-64, SSD: 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
