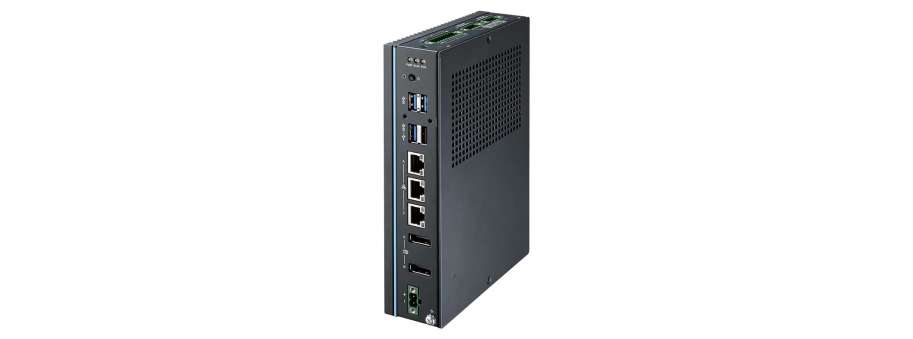

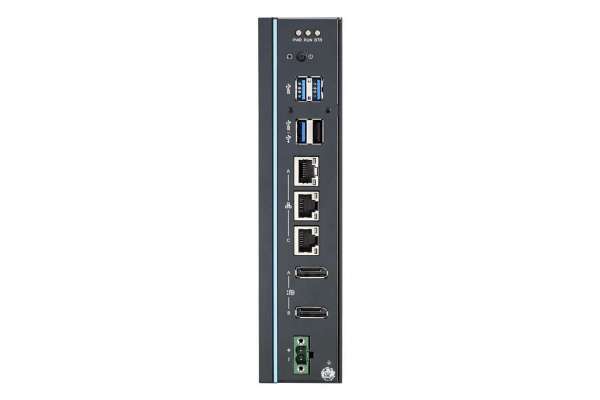

Fanless DIN-Rail IPC with 11th Gen Intel® Core™ i CPU with 3 x LAN, 4 x COM, 3 x USB 3.0, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.4. Advantech UNO-148
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| UNO-148-B73BA | Компактний промисловий комп'ютер Advantech UNO-148, i7-1185G7E,1.8GHz,8G DDR4,3LAN,4COM,8DIO | 110 054,0 | |
| UNO-148-B53BA | Компактний промисловий комп'ютер Advantech UNO-148, i5-1145G7E,1.5GHz, 8G DDR4,3LAN,4COM,8DIO | 90 066,5 | |
| UNO-148-B33BA | Компактний промисловий комп'ютер Advantech UNO-148, i3-1115G4E,2.2GHz, 8G DDR4,3LAN,4COM,8DIO | 64 408,4 |

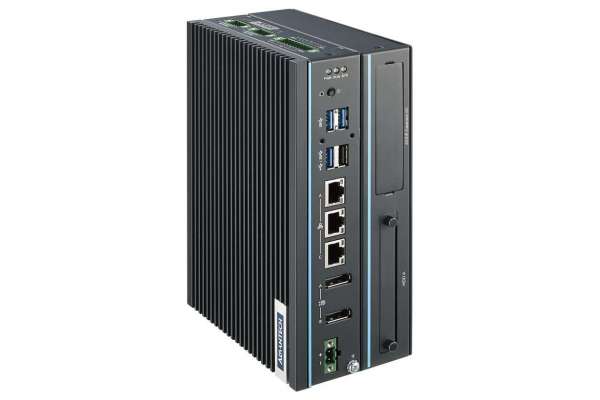

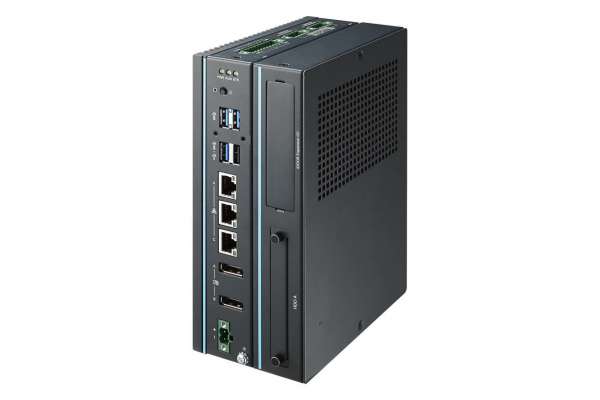

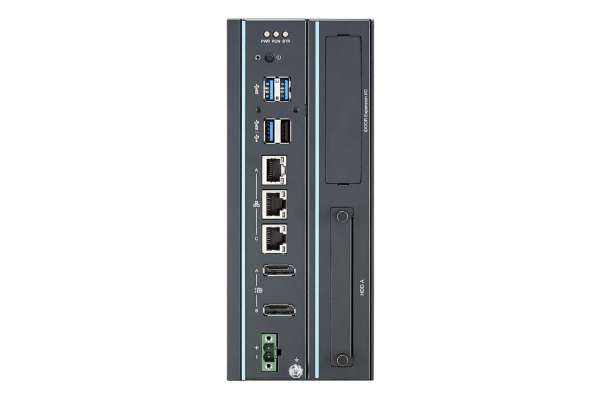

Advantech’s UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements. UNO-148 is equipped with an 11th Generation Intel® Core™ i Processor with 8GB DDR4 RAM, and 3 x LAN, 4 x COM, 3 x USB 3.0, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.4. The controller also supports 1 x full-size mini PCIe, 1 x M.2 B key,1 x M.2 M Key, 1 x M.2 E key, and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-148 can be equipped with an optional second-stack extension kit that supports Advantech’s iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.
- Port isolation for 8 x DI, 8 x DO, 4 x COM
- Supports M.2 M key 2280 NVMe SSD storage, M.2 B key 2242 storage, 3042/3052 cellular modules, and M.2 E Key 2230 wi-fi modules
- Supports Time-Sensitive Network (TSN) technology
- Remote out-of-band (OOB) power management with Advantech iBMC technology
- Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
Additional information
General |
|
| Certification | CE, FCC, UL61010-2-201, CCC, BSMI, RHEL 8.4+ |
| Dimensions (W x D x H) | 45 x 140 x 200 (1.4 x 5.5 x 7.8 in) |
| Form Factor | Regular size |
| Enclosure | Aluminum housing |
| Mount Option | DIN Rail |
| Weight (Net) | 1.3 kg / 2.86 lb |
| Power Requirement | 10 ~ 36 VDC |
| Power Consumption |
31W (typical), 55W (max.)
|
| OS Support | Windows 10 2019 LTSC, Windows 11, AdvLinux (Ubuntu 20.04) |
System Hardware |
|
| BIOS | AMI UEFI 256Mbit |
| Watchdog Timer | Programmable timer with 255 intervals (1 ~ 255 sec) |
| Security | TPM2.0 |
| Processor |
|
| Memory | 8 GB DDR4 SODIMM-3200 (up to 64 GB with 2 x slots) |
| Graphics Engine | Intel® Iris® X |
| Ethernet |
|
| TSN | Supported via i225 LAN port IEEE 802.1Qav/802.Qbv |
| LED Indicators |
1 x Power, 1 x RTC battery, 1 x LAN (active, status), and 1 x programmable indicator |
|
Expansion
|
|
I/O |
|
| Isolated Serial Ports | 4 x RS-232/422/485 (terminal block) 50 ~115.2 kbps (isolation protection: 2500 VDC) |
| LAN | 2 x 10/100/1000BASE-T Fast Ethernet (RJ45) 1 x 10/100/1000/2500BASE-T Fast Ethernet (RJ45) |
| USB | 3 x USB 3.2 (Gen 2), 1 x USB 2.0 (Type A) |
| Isolated DI/O |
8 x Digital input channels with 2500 VDC isolation protection - Wet contact: Logic 0: 10 ~ 30 VDC/ Logic 1: 0 ~ 3 VDC - Dry contact: Logic 0: Shorted to GND/ Logic 1: Open 8 x Digital output channels - Output voltage: 5 ~ 30 VDC - Output capability sink: 500 mA max./channel |
Displays |
2 x DP 1.4, up to 7680 x 3840 (8K) @ 60 Hz |
| Power Connector | 1 x 2-pin terminal block |
Environmental |
|
| Operating Temperature |
|
| Storage Temperature | -40 ~ 85 °C/-40 ~ 185 °F |
| Relative Humidity | 95% RH @ 40 °C/104 °F, non-condensing |
| Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Vibration Protection |
|
| Ingress Protection | IP20 |
