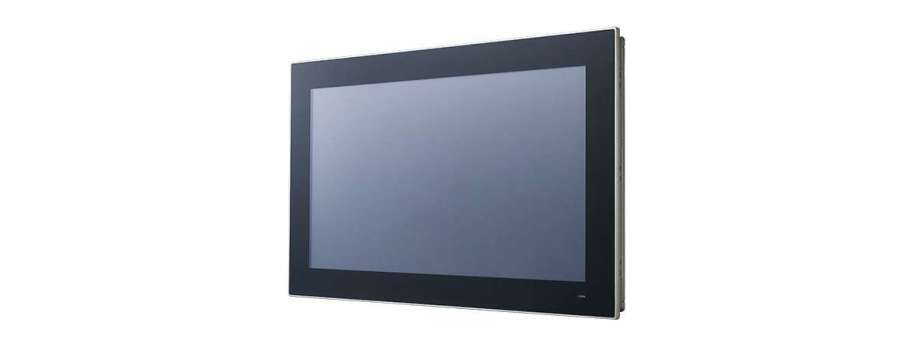

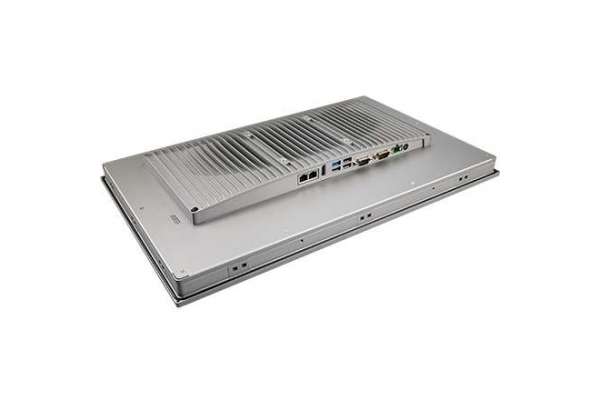

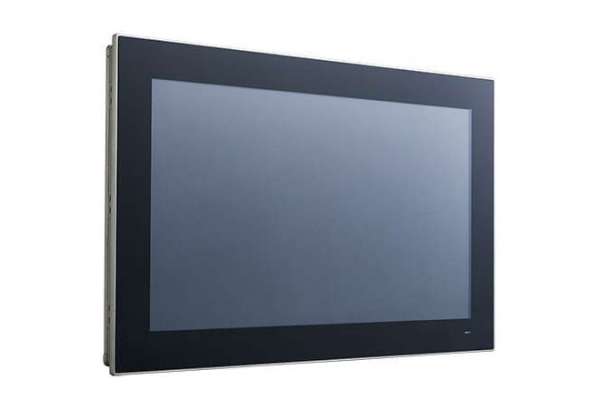

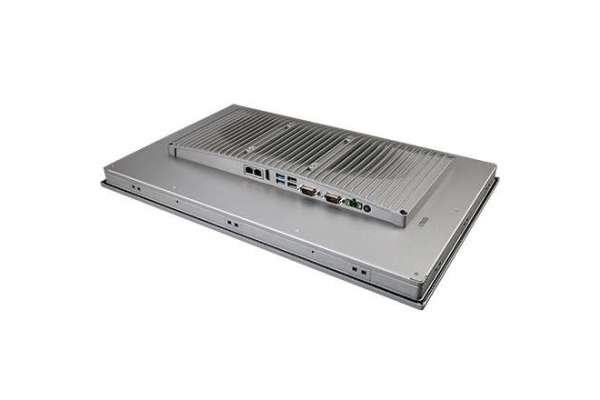

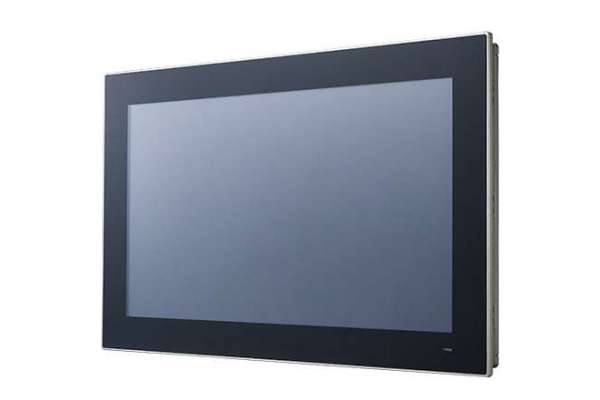

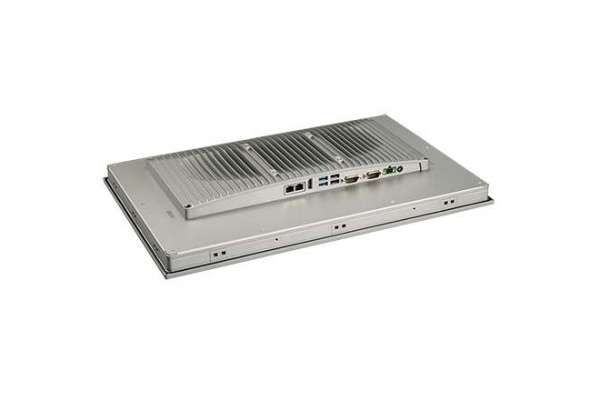

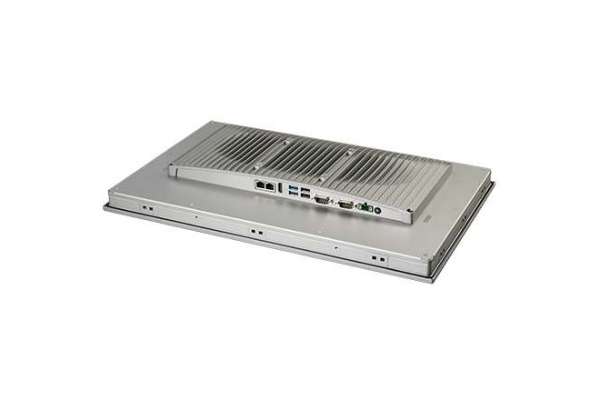

18.5" Fanless Panel PC with Intel® Core™ i5-6300U Processor Advantech PPC-3181SW
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| PPC-3181SW-P65A | Промисловий панельний комп'ютер Advantech PPC-3181SW, Intel Core i5-6300U Fanless 18.5" Panel PC | 135 020,0 | |
| PPC-3181SW-P65AO | Промисловий панельний комп'ютер Advantech PPC-3181SW-P65A w/o audio function | 123 810,0 | |
| PPC-3181SW-P65AU | Промисловий панельний комп'ютер Advantech PPC-3181SW Intel Core i5-6300U Fanless 18.5" Panel PC | 141 298,0 | |
| PPC-3181SW-P63A | Промисловий панельний комп'ютер Advantech PPC-3181SW, Intel Core i3-6100U Fanless 18.5" Panel PC | 112 521,0 | |
| PPC-3181SW-P67A | Промисловий панельний комп'ютер Advantech Intel Core i7-6600U Fanless 18.5" Panel PC | 166 266,0 |
The PPC-3181SW is an all-in-one light panel PC with a wide format 18.5" industrial-grade LCD. Powered by 6th generation Intel® Core™ i processor, PPC-3181SW provides excellent performance, memory, graphics, and peripheral I/O support in a compact, fanless, embedded system. With a high durability design, PPC-3181SW features a true-flat touchscreen with IP65-rated front panel, and die cast aluminum alloy enclosure, making it ideal for diverse applications.
- Industrial-grade 18.5" LCD panel with 50k backlight lifetime
- True-flat touchscreen with multi-touch projected capacitive control
- High-performance, fanless 6th generation Intel® Core™ i processor
- Up to 16 GB DDR4 SDRAM
- Compact, fanless design with aluminum alloy enclosure
- IP65-rated front panel
- Supports dual displays (1 x external HDMI)
- Supports full-size mini PCIe expansion
- Supports USB 3.0
- Supports VESA 100
Additional information
|
Power Supply |
|
|
Power Consumption |
65W |
| Input Voltage |
12 ~ 24 VDC |
|
Viewing Angle (H/V°) |
85 (left), 85 (right), 80 (up), 80 (down) |
| Luminance (cd/m2) |
450 |
| Contrast Ratio |
1000 |
| Display Type |
18.5" TFT LCD (LED backlight) |
| Resolution | 1366 x 768 |
| Backlight Life |
50,000 hr |
|
Environment |
|
|
Relative Humidity |
10 ~ 95% @ 40 °C (non-condensing) |
| EMC |
CE, FCC Class B, BSMI |
| Safety |
CB, CCC, BSMI, UL |
| Operating Temperature |
0 ~ 50 °C (32 ~ 122 °F) for SSD 0 ~ 45 °C (32 ~ 113 °F) for HDD |
| Storage Temperature |
-20 ~ 60 °C (-4 ~ 140 °F) |
| Front Panel Protection |
IP65 compliant |
| Vibration |
Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 |
| Shock |
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27 |
|
Processor System |
|
|
Memory |
1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V) |
| Frequency |
2.4 GHz; 3.0 GHz with turbo boost |
| I/O Ports |
2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS) 2 x USB 3.0, 2 x USB 2.0 1 x HDMI |
| Network (LAN) |
2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM) |
| Storage |
1 x 2.5" SATA bay 1 x mSATA bay |
| Watchdog Timer |
255 timer levels, set up by software |
| CPU |
6th gen Intel® Core™ i5-6300U dual core (i7-6500U/i3-6100U optional) |
| L2 Cache | 3 MB |
| Speaker | 2 x 1W |
| Expansion Slots |
1 x Full-size mini PCIe slot |
|
Touchscreen |
|
|
Light Transmission |
90 % ± 3 % |
| Controller |
USB interface |
| Touch Type |
10-point multi-touch projected capacitive |
|
OS Support |
|
|
OS Support |
Microsoft® Windows 7/8.1/10 (32/64-bit), WES7, Linux |
|
Physical Characteristics |
|
|
Dimensions |
488 x 309 x 61.7 mm (19.2 x 12.1 x 2.4 in) |
| Weight |
5.7 kg (12.56 lb) |
