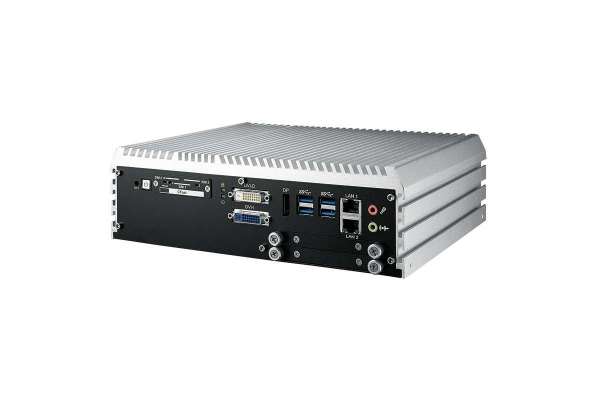

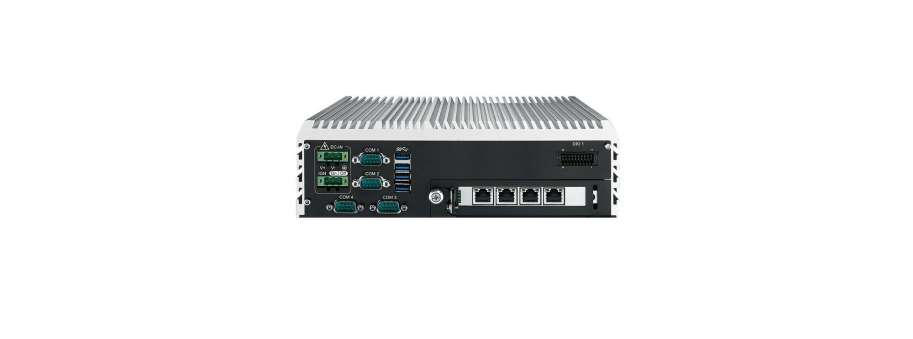

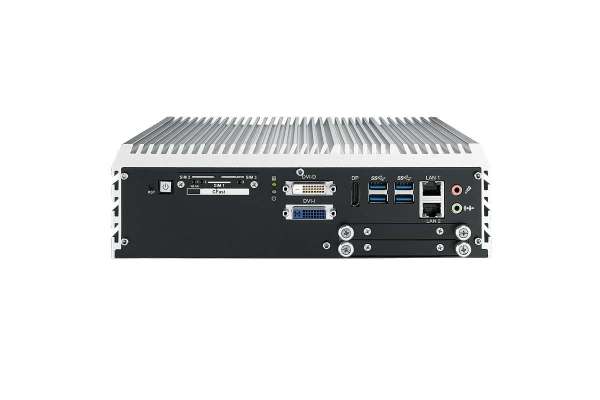

Fanless LAN Switch System with Intel® C236 Chipset, 2 GigE LAN, 4 GigE LAN Switch with PoE+ Vecow-ECS-9160
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ECS-9160 | Промисловий компактний комп'ютер Vecow ECS-9100, 2 GigE LAN, 4 GigE LAN Switch w/PoE+, 2 SSD Tray, 8 USB 3.0, 4 COM, 3 SIM, 16 GPIO | 83 076,0 | |
| ECS-9160P | Промисловий компактний комп'ютер Vecow ECS-9100, 2 GigE LAN, 4 GigE LAN Switch w/LAN Bypass, 2 SSD Tray, 8 USB 3.0, 4 COM, 3 SIM, 16 GPIO | 81 270,0 |
Powered by 7th/6th Generation Intel® Xeon®/Core™ i7/i5/i3 processor (Kaby Lake-S/Skylake-S) engine, fanless -40°C to 75°C operating temperature, all-in-one integrated features, outstanding system performance, 4 GigE switch with IEEE 802.3at PoE+/Bypass, excellent mobile availability, flexible expansion features, smart manageability, 6V to 36V power input with 80V surge protection, ignition power control, intelligent circus protection and rugged reliability, Vecow ECS-9160 Series Fanless LAN Switch System is your excellent solution for performance-driven real-time Industry 4.0 embedded applications.
- LGA 1151 Socket supports Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S) with C236 Chipset
- Fanless, -40°C to 75°C Operating Temperature
- 4 GigE LAN Switch with 4 IEEE 802.3at PoE+
- Supports hardware LAN Bypass mode
- 2 Independent GigE LAN, iAMT 11.0 supported
- 3 Front-access SIM Card Socket for 3G/4G/LTE/WiFi/GPRS/UMTS
- Expansion : 3 Mini PCIe/mSATA, 1 M.2
- Storage : 2 2.5" SSD Tray, 1 CFast, 2 SATA III
- 16 GPIO, 8 USB 3.0, 4 COM
- 6V to 36V DC-in with 80V Surge Protection
- Configurable Ignition Power Control
- DVI-I, DVI-D and DisplayPort display interface, up to 4K displays
Additional information
| System | |
| Processor | Quad Core Intel® Xeon®/Core™ i7/i5/i3 Processor (Kaby Lake-S/Skylake-S) |
| Chipset | Intel® C236 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2400/2133 MHz SO-DIMM, up to 64GB |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 |
| USB |
- 8 USB 3.0 (External) - 1 USB 2.0 (Internal) |
| DIO | 16 GPIO |
| LED | Power, HDD, Wireless, PoE |
| SIM Card | 3 SIM Card Socket (External) |
| Expansion | |
| Mini PCIe | 3 Full-size for PCIe/USB/External SIM Card/mSATA |
| M.2 | 1 M.2 Socket (Key ID : M) |
| Graphics | |
| Graphics Processor | Intel® HD Graphics P630/630/P530/530 |
| Interface |
- DVI-I : Up to 1920 x1200 @ 60 Hz - DVI-D : Up to 1920 x1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz |
| Storage | |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 3 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device |
- 1 CFast Socket, Push-in/Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 11.0 |
| LAN 2 | Intel® I210 GigE LAN |
| LAN Switch | |
| LAN 3 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode |
| LAN 4 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode |
| LAN 5 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode |
| LAN 6 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210, supporting LAN bypass mode |
| Power | |
| Power Input | 6V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats |
| Software Support | |
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
| Mechanical | |
| Dimension (W x L x H) | 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”) |
| Weight | 4.2 kg (9.26 lb) |
| Mounting |
- Wallmount by mounting bracket - DIN Rail Mount - 2U Rackmount (Optional) |
| Environment | |
| Operating Temperature |
35W TDP CPU : - Core™ i7, i5, i3 : -40°C to 75°C (-40°F to 167°F) - Xeon® E3-1268L v5 : -40°C to 70°C (-40°F to 158°F) 65W TDP CPU : Core™ i7, i5, i3 : -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -40°C to 45°C (-40°F to 113°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 75°C |
| Shock |
- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration |
- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | E13, CE, FCC, EN50155, EN50121-3-2 |
