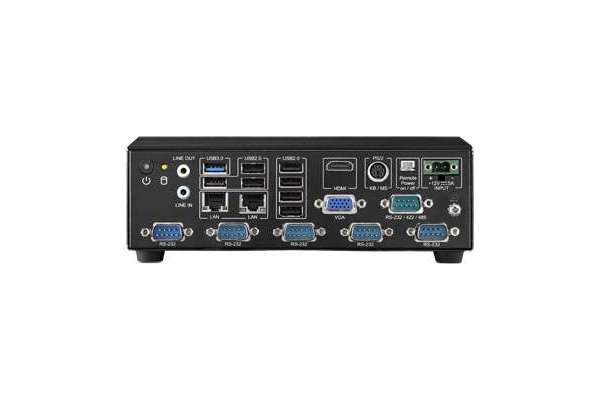

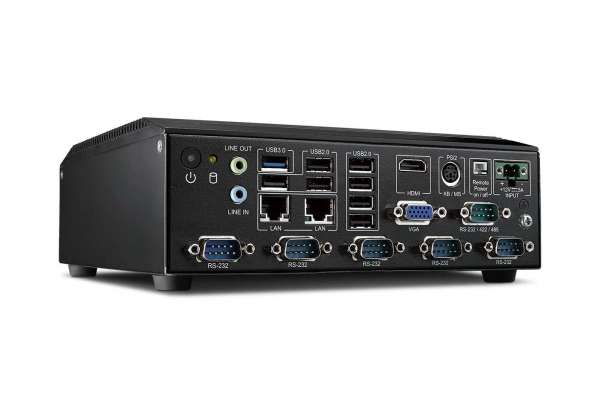

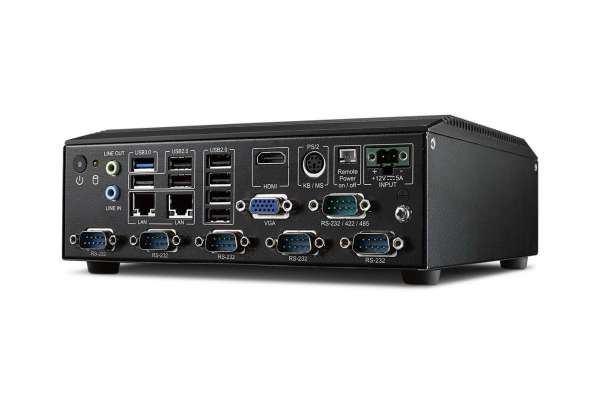

Front Access Fanless Micro Computer with Intel® Celeron® QC J1900/N2807 SoC with VGA/HDMI, 6 COMs, 8 USBs Advantech AiMC-2000
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| AIMC-2000J-00A2 | Промисловий безвентиляторний комп'ютер Advantech AIMC-2000 J1900, 2.0GHz, RTL8119I, Modular IPC | 33 838,0 | |
| AIMC-2000J-01A2 | Промисловий безвентиляторний комп'ютер Advantech AIMC-2000 J1900, 2.0GHz, RTL8119I, w/o Audio, Modular IPC | 30 742,0 |
Features:
- Intel® Baytrail Platform
- Intel® Celeron® Quad Core J1900/N2807 SoC
- Fanless Design
- Compact & Rich I/O Configuration
- One internal 2.5" SATA HDD bay & one mSATA slot for storage
- VGA , HDMI, 2 GbE LAN, 7 USB 2.0, 1 USB 3.0, 5 RS-232,1 RS-232/422/485
- One mini PCIe expansion to support full size module
- Line in , Line out with 6W amplifier
- Energy Savings
- DC 12V power input
Additional information
Certification |
|
|
EMC |
CE, FCC, CCC |
| Safety Certifications |
UL, CB, CCC, BSMI |
|
Disk Drive Bay |
|
|
2.5" Internal |
1 |
Environment |
|
|
Operating Shock |
10G, half sine wave, 11 ms duration |
| Operational Temperature |
0 ~ 40°C (HDD) -20~60°C (mSATA) |
| Non-Operating Vibration |
2 G |
| Non-Operational Temperature |
-40~ 85° C and 60° C @ 95% RH Non-Condensing |
| Operating Vibration |
1Grms (with HDD), 3Grms (with SSD) |
Miscellaneous |
|
|
Control |
Power on/off switch |
| LED Indicators |
HDD |
Physical Characteristics |
|
|
Dimensions (W x H x D) |
200 x 69 x200 mm |
| Weight |
2.5 kg |
|
Display |
|
|
Controller |
Intel HD graphics Integrated |
|
Ethernet |
|
|
Connector |
2 x RJ45 |
| Controller |
LAN1: Realtek RTL8111E, LAN2: Realtek RTL8111E |
| Speed |
10/100/1000 Mbps |
Expansion Interface |
|
|
Mini PCIe |
1 x internal Mini PCIe (Full-Size) |
|
Front I/O Interface |
|
|
Audio |
Line-in, Line-out |
| COM |
6 |
| Display |
1 VGA + 1 HDMI |
| LAN |
2 |
| PS/2 |
1 |
| USB2.0 |
7 |
| USB3.0 |
1 |
Memory |
|
|
Capacity |
Up to 8 GB |
| Socket |
2 x 204-pin SODIMM |
| Technology |
Dual Channel DDR3 1066/1333 MHz (Non ECC) |
Processor System |
|
|
BIOS |
AMI SPI 64 Mbit |
| Frequency |
2.0 GHz |
| CPU |
Intel® Celeron™ J1900 |
| Core Number |
4 |
|
Form Factor |
|
|
Form Factor |
Compact |
