Fanless Box PC with Dual display: VGA + HDMI on Intel® 8th and 9th Gen Core™ i3/i5/i7/i9 LGA1151 Advantech ARK-3531
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-3531-00A1 | Компактний промисловий комп'ютер Advantech ARK-3531 Intel CFL-R H370 2LAN+8USB+8COM, 9-36V | 49 128,5 |
Actual replacement of the product ARK-3510L

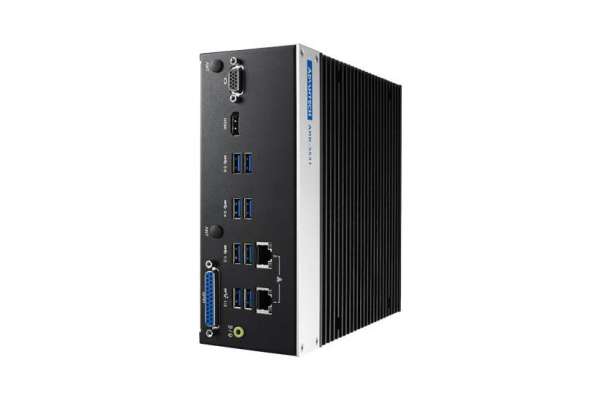

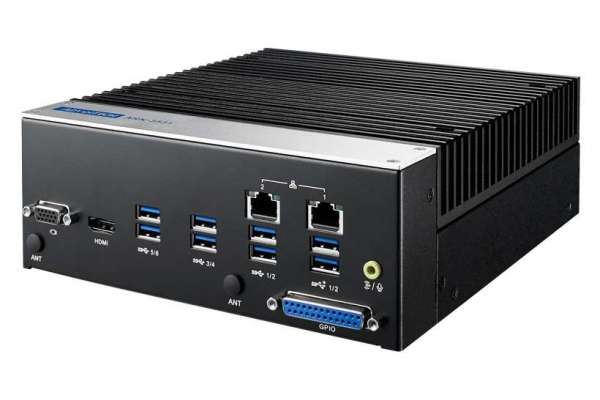

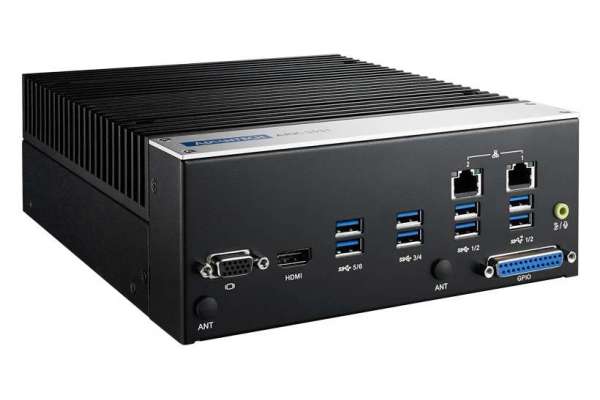

Intel® 8th and 9th Gen Core™ i3/i5/i7/i9 LGA1151 Fanless Box PC
- Supports Intel® 8th and 9th Gen Core™ i3/i5/i7/i9 35W processor
- Dual display: VGA + HDMI
- DDR4 SO-DIMM memory support up to 64 GB
- 9-36VDC wide range power input
- Versatile I/Os including 2 x USB 3.1, 6 x USB 3.0 and 8 x COM ports
- Support 2 internal 2.5" Hard Drive bays (Intel SW RAID 0/1)
- SUSI API, WISE-DeviceOn, McAfee, Acronis bundled
- IP40 rating
Additional information
Processor System |
|||||
| CPU | i9-9900T | i7-9700TE | i5-9500TE | i3-9100TE | G4900T |
| Frequency | 2.1GHz-4.4GHz | 1.8GHz-3.8GHz | 2.2GHz-3.6GHz | 2.2GHz-3.2GHz | 2.9GHz |
| L3 Cache | 16MB | 12MB | 9MB | 6MB | 2MB |
| Core | 8 | 8 | 6 | 4 | 2 |
| TDP | 35W | 35W | 35W | 35W | 35W |
| Chipset | H370 (Q370 support by TPN) | H370 (Q370 support by TPN) | H370 (Q370 support by TPN) | H370 (Q370 support by TPN) | H370 (Q370 support by TPN) |
| BIOS | AMI EFI 128Mbit | AMI EFI 128Mbit | AMI EFI 128Mbit | AMI EFI 128Mbit | AMI EFI 128Mbit |
Memory |
|||||
| Technology | DDR4 2666 MHz | DDR4 2666 MHz | DDR4 2666 MHz | DDR4 2666 MHz | DDR4 2666 MHz |
| Max. Capacity | 64 GB | 64 GB | 64 GB | 64 GB | 64 GB |
| Socket | 2 x 260-pin SO-DIMM | 2 x 260-pin SO-DIMM | 2 x 260-pin SO-DIMM | 2 x 260-pin SO-DIMM | 2 x 260-pin SO-DIMM |
Graphics |
|||||
| Chipset | Intel® UHD Graphics 630 | Intel® UHD Graphics 630 | Intel® UHD Graphics 630 | Intel® UHD Graphics 630 | Intel® UHD Graphics 630 |
| Graphic Engine | Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 | Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 | Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 | Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 | Direct x 12, OpenGL 4.4 HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8. HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9 |
| VGA | 2048x1280@ 60Hz | 2048x1280@ 60Hz | 2048x1280@ 60Hz | 2048x1280@ 60Hz | 2048x1280@ 60Hz |
| HDMI | 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz | 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz | 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz | 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz | 1 HDMI port, HDMI 1.4 for HD video playback, 3840x2160@30Hz |
| Flexible Display (by TPN project) | HDMI+HDMI, VGA+DP, HDMI+DP | HDMI+HDMI, VGA+DP, HDMI+DP | HDMI+HDMI, VGA+DP, HDMI+DP | HDMI+HDMI, VGA+DP, HDMI+DP | HDMI+HDMI, VGA+DP, HDMI+DP |
Ethernet |
|||||
| LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
| LAN2 | 10/100/1000 Mbps Intel I210GbE, support wake on lan | 10/100/1000 Mbps Intel I210GbE, support wake on lan | 10/100/1000 Mbps Intel I210GbE, support wake on lan | 10/100/1000 Mbps Intel I210GbE, support wake on lan | 10/100/1000 Mbps Intel I210GbE, support wake on lan |
| LAN3/LAN4 (by TPN project) | 10/100/1000 Mbps Intel I210GbE, support wake on lan | 10/100/1000 Mbps Intel I210GbE, support wake on lan | 10/100/1000 Mbps Intel I210GbE, support wake on lan | 10/100/1000 Mbps Intel I210GbE, support wake on lan | 10/100/1000 Mbps Intel I210GbE, support wake on lan |
Audio |
|||||
| Interface | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) |
Others |
|||||
| Watch dog Timer | 255-level timer interval, setup by software | 255-level timer interval, setup by software | 255-level timer interval, setup by software | 255-level timer interval, setup by software | 255-level timer interval, setup by software |
| TPM | Onboard TPM 2.0 | Onboard TPM 2.0 | Onboard TPM 2.0 | Onboard TPM 2.0 | Onboard TPM 2.0 |
I/O Interface |
|||||

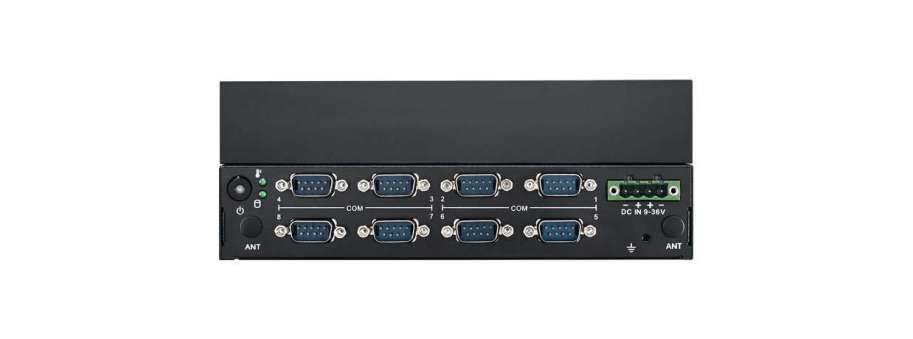

| Serial Port | 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) | 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) | 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) | 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) | 4 x RS-232, 4 x RS-232/422/485 port with auto flow control; COM 1 support 5V/12V power supply (by jumper) |

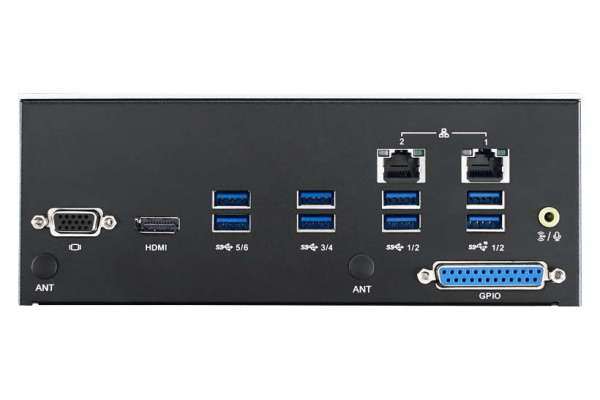

| USB | 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) | 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) | 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) | 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) | 2 x USB 3.1 Gen2 (5V/1.8A), 6 x USB 3.0 (5V/0.9A) |
| GPIO | 16bit DIO | 16bit DIO | 16bit DIO | 16bit DIO | 16bit DIO |
Expansions |
|||||
| Mini PCIe | 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280) | 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280) | 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280) | 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280) | 1 x Full-size MiniPCIe (support mSATA, support SIM holder, Optional AMO-I026 to supports m.2 B+M key 2280) |
| M.2 | 1 x E key 2230 for WiFi | 1 x E key 2230 for WiFi | 1 x E key 2230 for WiFi | 1 x E key 2230 for WiFi | 1 x E key 2230 for WiFi |
Storage |
|||||
| HDD | 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1) | 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1) | 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1) | 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1) | 2 x 2.5" SATAIII HDD Bay with Max Height 9.5mm (Supports Intel SW RAID 0/1) |
| mSATA | 1 x mSATA socket (Share with Mini PCIe) | 1 x mSATA socket (Share with Mini PCIe) | 1 x mSATA socket (Share with Mini PCIe) | 1 x mSATA socket (Share with Mini PCIe) | 1 x mSATA socket (Share with Mini PCIe) |
Software Support |
|||||
| Microsoft Windows | Windows 10 | Windows 10 | Windows 10 | Windows 10 | Windows 10 |
| Linux | By Project Support | By Project Support | By Project Support | By Project Support | By Project Support |
Power Requirements |
|||||
| Power Type | AT/ATX | AT/ATX | AT/ATX | AT/ATX | AT/ATX |
| Power Input Voltage | 9-36V | 9-36V | 9-36V | 9-36V | 9-36V |
| Power Adapter | AC to DC, 150W (Optional) | AC to DC, 150W (Optional) | AC to DC, 150W (Optional) | AC to DC, 150W (Optional) | AC to DC, 150W (Optional) |
Power Consumption (CPU/Memory Only) |
|||||
| Typical | 16.8W | 16.8W | 16.8W | 16.8W | 16.8W |
| Max. | 34.8W | 34.8W | 34.8W | 34.8W | 34.8W |
Mechanical |
|||||
| Construction | Aluminum housing | Aluminum housing | Aluminum housing | Aluminum housing | Aluminum housing |
| Mounting | Desk mounting | Desk mounting | Desk mounting | Desk mounting | Desk mounting |
| Dimensions (W x H x D) | 200 x 75 x 215 mm | 200 x 75 x 215 mm | 200 x 75 x 215 mm | 200 x 75 x 215 mm | 200 x 75 x 215 mm |
| Weight | 3.2Kg | 3.2Kg | 3.2Kg | 3.2Kg | 3.2Kg |
Environment |
|||||
| Operating Temperature | 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow | 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow | 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow | 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow | 35W Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85° C | -40 ~ 85° C | -40 ~ 85° C | -40 ~ 85° C | -40 ~ 85° C |
| Relative Humidity | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) | 95% @ 40° C (non-condensing) |
| Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| EMC | CE/FCC Class B, CCC, BSMI | CE/FCC Class B, CCC, BSMI | CE/FCC Class B, CCC, BSMI | CE/FCC Class B, CCC, BSMI | CE/FCC Class B, CCC, BSMI |
| Safety | CB(62368), UL(62368), CCC, BSMI | CB(62368), UL(62368), CCC, BSMI | CB(62368), UL(62368), CCC, BSMI | CB(62368), UL(62368), CCC, BSMI | CB(62368), UL(62368), CCC, BSMI |
