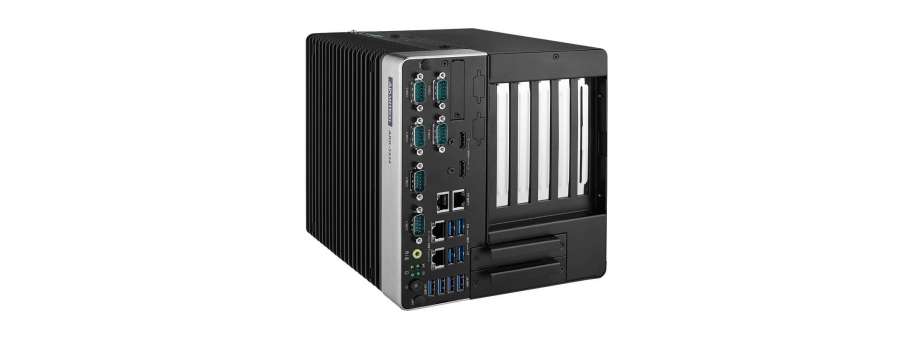

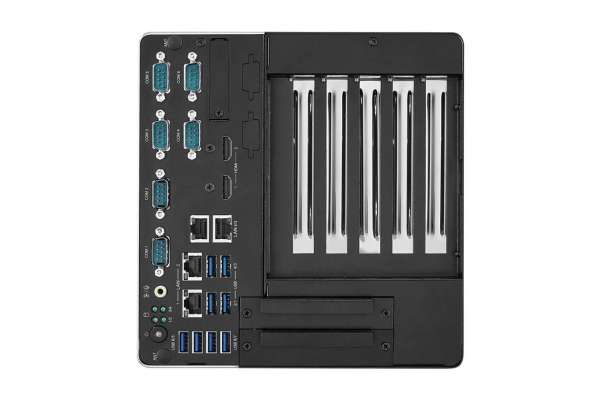

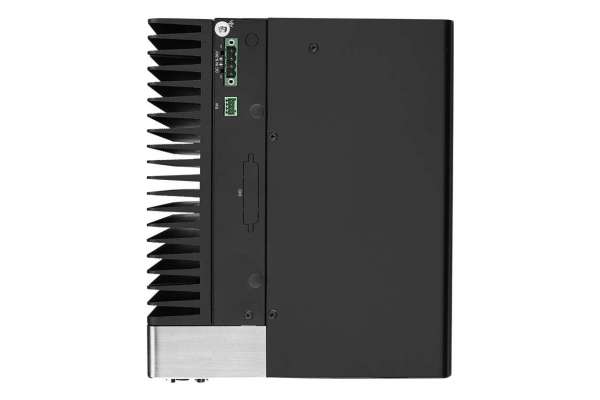

Intel® 12th&13th Gen i3/i5/i7/i9 LGA1700 Expansion Fanless Box PC Advantech ARK-3534D
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ARK-3534D-00A1 | Компактний промисловий комп'ютер Advantech ARK-35 Intel ADL-S R680E PCIex4+PCIex16+2*PCI, 9-36V | 72 958,5 |
- Support Intel® 12th&13th Gen. Core™ i3/i5/i7/i9 processor
- Triple independent display: HDMI + HDMI + Optional Display
- DDR5 SO-DIMM ECC/non-ECC memory support up to 64 GB
- 9-36VDC wide range power input
- Up to 3sets 2.5" hard drive bays, support Intel® SW RAID
- Support up to 4GbE, 8USB, 8COM, 16bit DIO, 2CANBus, TPM2.0
- SUSI API, WISE-DeviceOn, McAfee and Acronis bundled
| CPU | i9-13900E | i7-13700E | i5-13500E | i3-13100E | i9-12900E | i7-12700E | i5-12500E | i3-12100E | G6900E |
| Frequency | 1.3-5.2GHz | 1.3-5.1GHz | 1.5-4.6GHz | 3.3-4.4GHz | 1.7-5.0GHz | 1.6-4.8GHz | 2.9-4.5GHz | 3.2-4.2GHz | 3.0GHz |
| L3 Cache | 36MB | 30MB | 24MB | 12MB | 30MB | 25MB | 18MB | 12MB | 4MB |
| Cores | 24 | 16 | 14 | 4 | 16 | 12 | 6 | 4 | 2 |
| TDP | 65W | 65W | 65W | 60W | 65W | 65W | 65W | 60W | 46W |
Additional information
Processor System |
|
| Chipset | R680E |
| BIOS | AMI EFI 256Mbit |
Memory |
|
| Technology | DDR5 4800 MHz |
| Max. Capacity | 64 GB |
| Socket | 2 x 262-pin ECC/nonECC SO-DIMM |
Graphics |
|
| Chipset | Intel® UHD Graphics 770 |
| Graphic Engine |
|
| HDMI | 2 HDMI port, HDMI 2.0 for HD video playback, 4096x2160@60Hz |
| Optional 3rd Display module | DVI-D / DP / HDMI Display Port |
| Triple Display | HDMI+HDMI + 3rd display module |
Ethernet |
|
| LAN1 | 10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan |
| LAN2/3/4 | 10/100/1000/2500 Mbps Intel i225-LM GbE, support Wake On Lan |
Audio |
|
| Interface | Realtek ALC888S, High Definition Audio, Line-out/Mic-in (switch) |
Others |
|
| Watch dog Timer | 255-level timer interval, setup by software |
| TPM | TPM 2.0 (by optional AMO-I029) |
I/O Interface |
|
| Serial Port | 4 x RS-232/422/485 port with auto flow control, 2 x RS-232 (additional COM7/8 2 x RS-232 by optional cable) |
| USB |
|
| DIO | 16bit DIO (by optional cable) |
Expansions |
|
| CANBus | 2 ports by optional cable |
| M.2 | 1 x M2. 2230 E key and 1 x M.2 2280 B key with SIM holder #1 |
| Add-on Card Slot | 2 Slot PCI + 1 Slot PCIex4 + 1 Slot PCIex16 (If card power power consumption over 30W for add-on cards, please bundled with AMO-3509 kit for power and thermal solutions) |
| Maximum card size | 110mm (H) x 180mm (L) |
Storage |
|
| HDD | 2 x 2.5" SATAIII 15mm height HDD bay support Intel SW RAID (Up to 3 x 2.5" SATAIII HDD bays) |
| NVME | 1 x PCIex2 (Share with M.2 2280 B key) |
Software Support |
|
| Microsoft Windows | Windows 10 |
| Linux | By Project Support |
Power Requirements |
|
| Power Type | AT/ATX |
| Power Input Voltage | 9-36V |
| Power Adapter | AC to DC, 230W (Optional) |
Power Consumption (CPU/Memory Only) |
|
| Typical | 56.1W |
| Max | 92.4W |
Mechanical |
|
| Construction | Aluminum housing |
| Mounting | Desk mounting |
| Dimensions (W x H x D) | 197.2 x 204 x 230 mm |
| Weight | 6.41 Kg |
Environment |
|
| Operating Temperature | Up to 65W processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow with HDD: 0 ~ 40° C with 0.7m/s air flow |
| Storage Temperature | -40 ~ 85° C |
| Relative Humidity | 95% @ 40° C (non-condensing) |
| Vibration During Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis. |
| Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| EMC | CE/FCC Class B, CCC, BSMI |
| Safety | CB, UL, CCC, BSMI |
