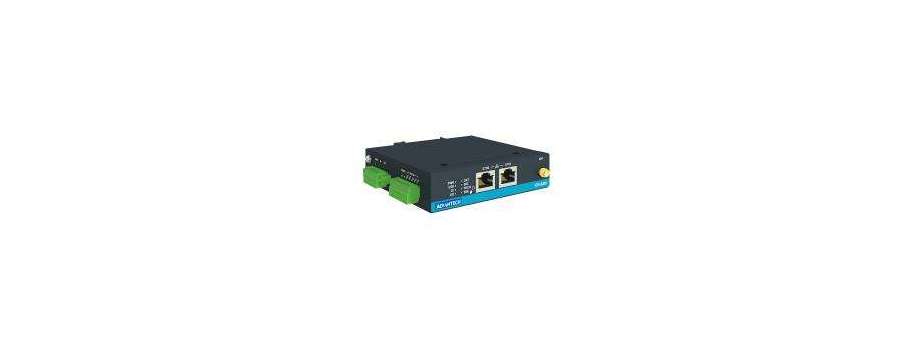

Industrial entry-Level 4G Router with 2× Ethernet 10/100 Mbps LPWA communication Cat-M/Cat-NB/GPRS/EDGE Advantech ICR-2412
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ICR-2412 | Cellular Router, CatM1, GLOBAL, 2x ETH | 18 168,6 |
Industrial cellular router ICR-2412 is designed for wireless communication in the LPWA mobile networks LTE Cat-M/Cat-NB with fallback to the traditional 2G GPRS/EDGE network. GPRS/EDGE 2G standard allows deployment at places where LTE Cat-M/Cat-NB signal coverage is still under development. ICR-2412 is the ideal gateway for global IoT applications because of the large number of cellular frequency bands supported. Among others, the router supports also the European LTE 450 MHz spectrum (bands B31 and B72) that is a key frequency for wireless communication in critical infrastructure e.g. in Energy distribution. The router is equipped with two independently configurable Ethernet ports (LAN or WAN), 1× serial port RS232, 1× RS485, and with digital I/O connectivity (1× DI, 1× DO). The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections, automatic restart in case of connection losses, and a hardware watchdog that monitors the router status. Router is based on ICR-OS operation system. Open Linux platform enable wide possibilities of programming customer SW applications in Python, C/C++. Router supports uploading of RouterApps (User modules) that would extend standard firmware functionalities. Existing app library ready for free download by customer contains already developed software apps to enhance specific router functionality including industrial protocol conversions, support of IoT platforms such as MS Azure, Cumulocity, ThingWorx and a lot more.
- LPWA communication Cat-M/Cat-NB/GPRS/EDGE
- 450 MHz support (B31 & B72)
- 2× SIM for redundancy
- 2× Ethernet 10/100 Mbps
- 1× RS232, 1× RS485
- 1× DI, 1× DO
- Wide operational temperature range
- Wall and DIN mount options
- Linux based OS & SW customization
Additional information
System |
|
| CPU | ARM926EJ-S, 600 MHz |
| Memory | RAM - 128 MB NOR Flash - 64 MB (12 MB for Router Apps, 2 MB for customer data) |
| Watchdog | HW Watchdog |
| RTC | Battery backup RTC |
Interfaces |
|
| Ethernet | 2× Ethernet (1+1), RJ45, 10/100 Mbps |
| Serial Lines |
|
| I / O |
|
| Reset Button | Reboot / Factory reset |
| LED Indicators | System, Signal strength, Data activity, SIM1/SIM2 status, Mobile technology, Input, Output, User, ETH |
Environmental |
|
| Power Supply | 9 – 48 V DC (6-pin terminal block together with I/O) |
| Consuption | Idle 2 W / Average 2.4 W / Maximum 2.9 W |
| Operating Temperature | -40 to +75 °C |
| Storage Temperature | -40 to +85 °C |
| Humidity | 5 to 95 % |
| IP Cover | IP30 |
Physical Characteristics |
|
| Dimensions | 103 mm × 95 mm × 25 mm |
| Enclosure | Metal Case, Grounding Screw |
| Mounting | Wall mount, * Optional DIN Rail mount |
| Weight | 345 g |
Cellular Interface |
|
| SIM Slots | 2× SIM (Micro SIM – 3FF) |
| Antennas | 1× SMA connector (1× ANT) |
| LTE Parameters |
|
| EDGE/GPRS Parameters |
|
Standards & Regulations |
|
| Radio | EN 301 511, EN 301 908-1, EN 301 908-13 |
| EMC | EN 301 489-1, EN 301 489-52, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
| Safety | EN 62 368-1, IEEE 802.3 |
| National | CE, UKCA |
| Mechanical | EN 60529 |
| Climatic | EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-2-30 |
| Environmental | REACH, RoHS3, WEEE |
