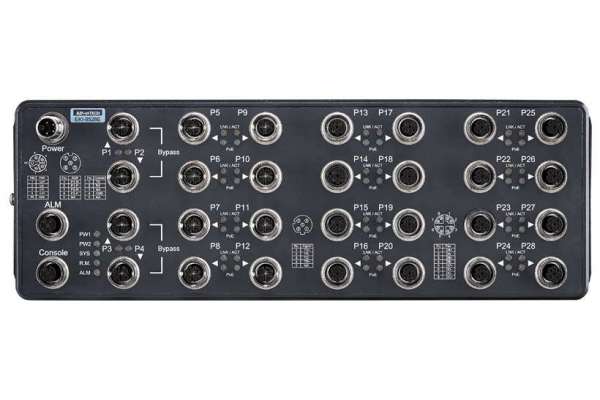

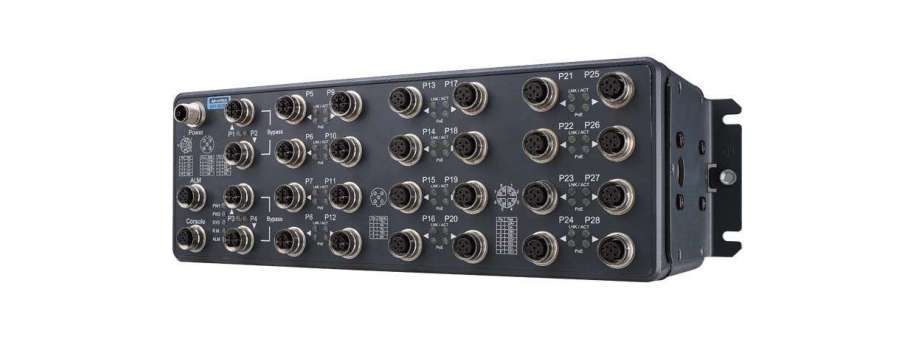

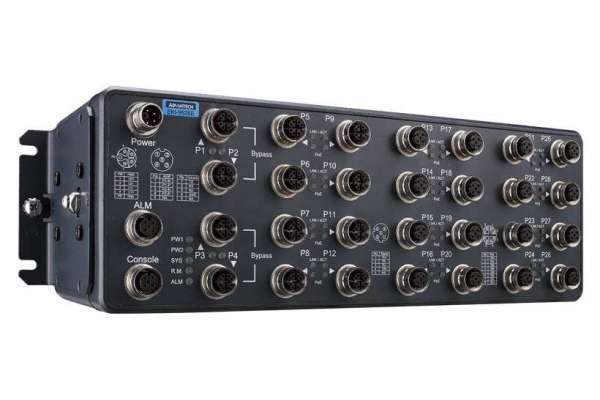

EN50155 Managed PoE Switch with 16xFE+12xGE, 24-110VDC with 24 x PoE Ports Advantech EKI-9528E-12GMPX
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| EKI-9528E-12GMPW-A | 16FE PoE+8GE PoE+4GE BP train switch | 208 656,0 | |
| EKI-9528E-8GMPW-A | 20FE PoE+4GE PoE+4GE BP train switch | 199 906,0 | |
| EKI-9528G-4GMPW-A | 24GE PoE + 4GE BP train switch | 243 164,0 | |
| EKI-9528E-12GMW-A | 16FE+8GE+4GE BP train switch | 175 843,0 | |
| EKI-9528E-8GMW-A | 20FE+4GE+4GE BP train switch | 167 093,0 | |
| EKI-9528G-4GMW-A | 24GE + 4GE BP train switch | 210 352,0 | |
| EKI-9528E-12GMPX-A | 16FE PoE+8GE PoE+4GE train switch | 204 281,0 | |
| EKI-9528E-8GMPX-A | 20FE PoE+4GE PoE+4GE train switch | 195 531,0 | |
| EKI-9528G-4GMPX-A | 24GE PoE + 4GE train switch | 238 789,0 | |
| EKI-9528E-12GMX-A | 16FE+12GE train switch | 171 468,0 | |
| EKI-9528E-8GMX-A | 20FE+8GE train switch | 162 718,0 | |
| EKI-9528G-4GMX-A | 28GE train switch | 205 976,0 |
Advantech’s EKI-9528 series Ethernet switch delivers a ruggedized design with high EMC performance to rolling stock, wayside control, and other railroad applications. This solution leverages M12 connectors for Ethernet, console, relay, and power-input — ensuring excellent connectivity and endurance in harsh environments. EKI-9528 accommodates 12 different users’ options. It provides 28 x ports Full Giga Ethernet or 16 x ports Fast Ethernet + 12 Giga (with 4 x Relay Bypass ports) with IEEE802.3af/at PoE function (PoE model only). PoE models deliver 150W of power to cameras, IP-phones, wireless access points, and other devices. In addition, Advantech’s EKI-9528 series features an IP54 certified ruggedized housing and ample pitch connectors that connect/disconnect cables easily. This solution accommodates deployment in compact spaces and delivers mass Ethernet connection.
- M12 connector with ruggedized IP54 certified housing
- Complies with EN50155 and EN50121-3-2 standards
- 24 x PoE IEEE802.3af/at ports
- Wide nominal power input range: 24 ~ 110VDC
- Operating power input range: 16.8 ~ 137.5VDC
- X-Ring Pro delivers rapid and predictable convergence
- Leverages IXM technology to ease maintenance
- Provides N-Key for quick configuration and backup
- Broad operating temperatures (-40 ~ 70 °C/-40 ~ 158 °F)
- Fast Full Giga Ethernet solution
Additional information
Interface |
|
| Ethernet port* | M12 4pin D-coded for Fast Ethernet (10/100BASE-T) M12 8pin X-coded for Gigabit Ethernet (10/100/1000BASE-T) |
| Console port | M12 5pin A-coded |
| Relay port | M12 5pin A-coded with 2 relay outputs of 1A@24VDC |
| Power connector | M12 K-coded connector |
Physical |
|
| Enclosure | Die-cast zinc front panel and extruded aluminum chassis |
| IP rating | IP 54 |
| Installation | Wall Mount |
| Dimensions | (W x H x D) 300 x 105 x 105 mm/11.8 x 4.1 x 4.1 in *not including bracket |
| Weight | 6.4 kg (14.1 lb) |
LED Display |
|
| System LEDs | PWR1, PWR2, SYS, R.M., and Alarm |
| Port LED | Data, PoE (For PoE model only) |
Environment |
|
| Operating temperature | -40 ~ 70 °C (-40 ~ 158 °F) |
| Storage temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Ambient relative humidity | 5 ~ 95% (non-condensing) |
Power |
|
| Power consumption | 25 Watts |
| Nominal input voltage | 24/28/36/48/72/96/110VDC |
| Operating range | 16.8 ~ 137.5VDC |
| Over current protection | Yes |
| Reverse polarity protection | Yes |
Switch Properties |
|
| DRAM | 64MB |
| Flash | 32MB |
| Max. IGMP group | 256 |
| Max static VLANs | 256 |
| VLAN ID range | 1-1094 |
| MAC table | 8K |
| Jumbo frame | 9KB |
| Packet buffer | 4.1MB |
| Max priority queues | 8 |
Certification |
|
| Safety | EN62368-1 |
| EMC | CE, EN55011/ 55032/ 55024; FCC Part 15 Subpart B class A |
| EMS |
EN61000-4-2(ESD); EN61000-4-3(RS); EN61000-4-4(EFT); EN61000-4-5(Surge); EN61000-4-6(CS) |
| Shock | EN 61373 |
| Vibration | EN 61373 |
| Railway | EN50155, EN50121-2-3, 50121-1 |
| Fire resistant | EN45545-2 |
| Other | EN61000-6-4, EN61000-6-2 |
