Computing Fanless Module with Intel Elkhart Lake Atom and Celeron Advantech TPC-B300

Price and avalability

Partnumber Description Price VAT incl Avalability
TPC-B300-J20A TPC-B300 Box Module Celeron J6412 (10W)  40 728,2
TPC-B300-E20A TPC-B300 Box Module Atom X6425E (12W)  44 719,3

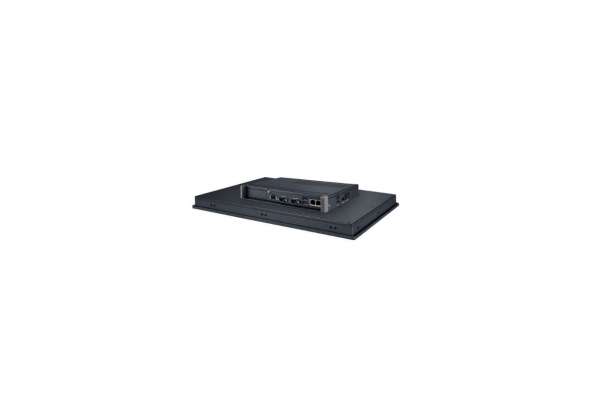

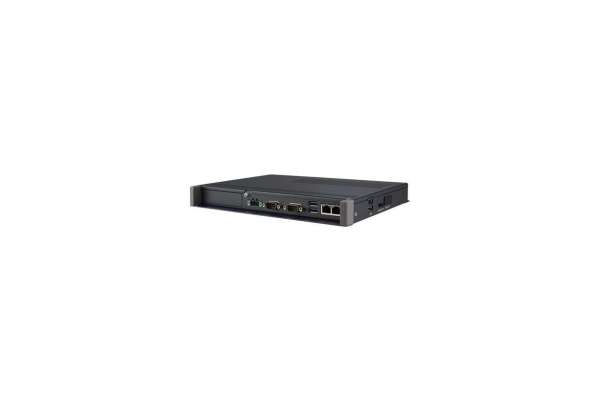

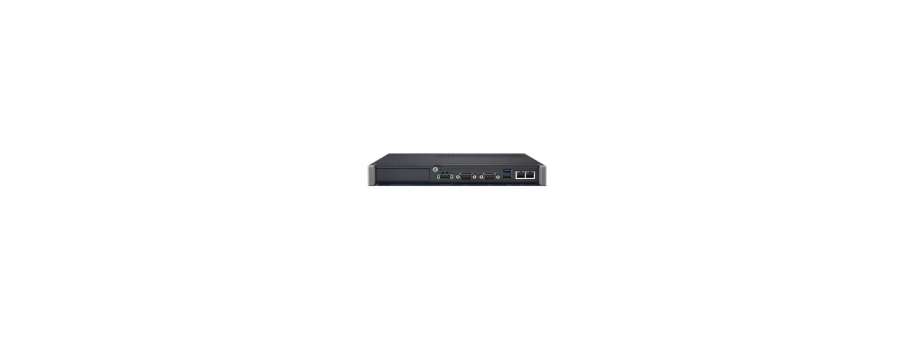

TPC-B300 computing box modules are powered by Intel® Atom™ X6425E/Celeron® J6412 Processors to provide compact and fanless control panel solutions that deliver high-performance computing. With a highly flexible modular design, TPC-B300 allows users to change the panel sizes (12"-23.8").

  • Computing Box powered by Intel® Atom™ X6425E/Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)
  • Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
  • 1 x Full-size mini PCIe for iDoor expansion
  • 1 x M.2 Key-E 2230 for WIFI + BT module
  • 1 x M.2 Key-M 2280 for NVMe SSD
  • 1 x 2.5” SATA SSD expansion
  • 2 x 2.5Gb LAN
  • Supports TPM2.0 hardware security
  • Wide Temp Support. Range -20~60 °C (Atom™ X6425E)

Additional information

General

Certification CE, FCC Class A, CB/UL
Cooling System Fanless design
Dimensions (W x H x D) 269 x 203 x 30 (mm)
Enclosure Metal
Mounting VESA Mount, Desktop, Wall or Panel Mount (FPM-Display and Mounting kit support)
OS Support Windows 10 IoT Enterprise LTSC
Power Input 24 VDC ± 20%
Weight (Net) 2.1 kg (4.6 lbs)

System Hardware

CPU
  • Intel® Elkhart Lake
  • Atom™ x6425E 2.00 GHz, quad core
  • Celeron® J6412 2.00 GHz, quad core
Memory 1 x DDR4 SO-DIMM slot (up to 32GB)
Storage
  • 1 x M.2 M key 2280 (SATA/PCIE)
  • 1 x 2.5" SSD/HDD
LAN 2 x Intel® I226; 2.5GbE
Expansion Slot
  • 1 x Full-size mini PCIe (PCIE/USB2.0) *Support iDoor module / 4G&5G LTE SIM slot
  • 1 x M.2 AE key 2230 (PCIE/USB2.0)

I/O

  • 2 x RS-232/422/485
  • 3 x USB 3.2
  • 1 x USB 2.0
  • 1 x Line out
  • 1 x Display Port (4096x2160@60Hz)
Power Input 24 VDC ± 20%
Security TPM 2.0 (built-in)

Environment

Humidity 95% RH @ 40°C, non-condensing
Ingress Protection IP66 (for optional panel module with "Panel Mount")
Operating Temperature
  • -20°C~60°C (Atom X6425E with SATA SSD)
  • -20°C~55°C (Atom X6425E with NVMe SSD)
  • 0°C~60°C (Celeron J6412 with SATA SSD)
  • 0°C~55°C (Celeron J6412 with NVMe SSD)
Storage Temperature -20°C~70°C
