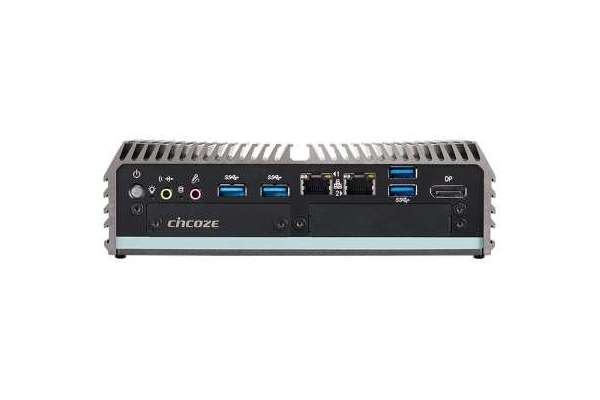

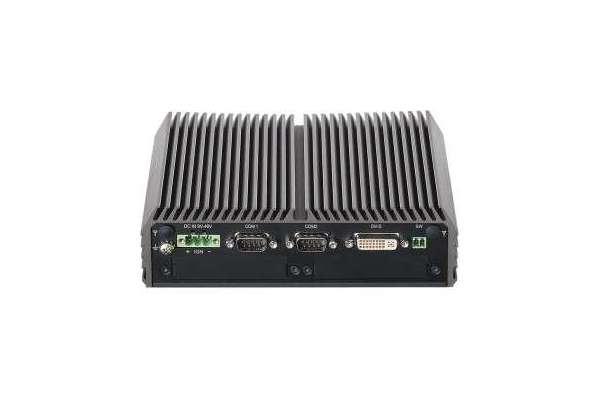

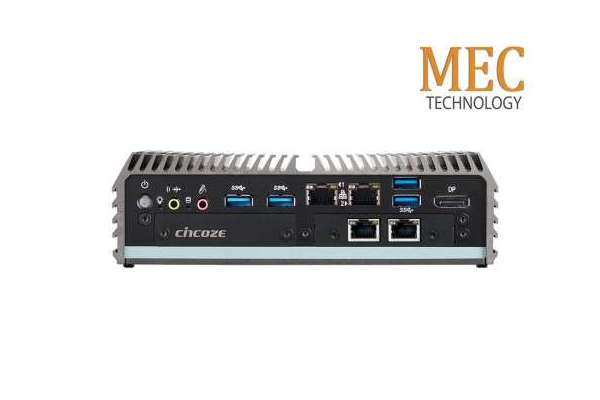

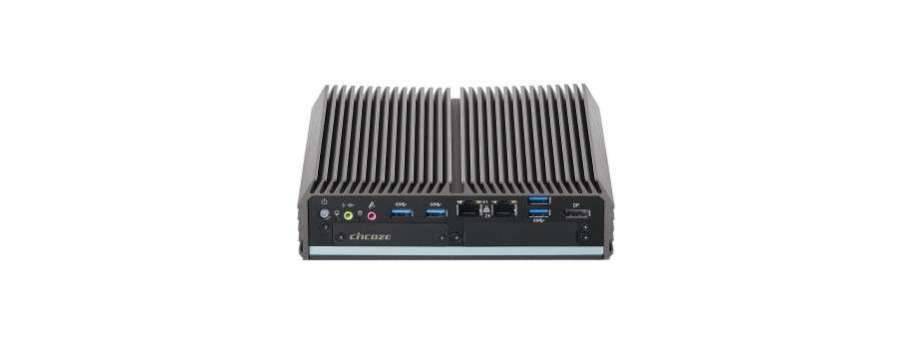

Compact Fanless Embedded Computer Intel® Pentium® N4200 Processor Cincoze DC-1200

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Based on Intel® Pentium® N4200 quad-core processor, the DC-1200 is a fanless embedded computer oering an incredible size-performance ratio for the most challenging environments. Despite its compact size, the DC-1200 incorporates extensive connectivities including serial ports, USB 3.0, GbE LAN, full-size Mini-PCIe slot, dual SIM sockets, DVI-D, and DisplayPort. The system also provides 2.5" SATA drive bay and mSATA socket for extensive storage requirements. Furthermore, it is much easier to utilize Cincoze’ ready-to-use CMI& CFM modules for extension of digital I/O, serial ports, power ignition sensing, Power over Ethernet (PoE) even the third output of video for a variety of applications. Featuring with rigorous industrial protections, wide temperature range, and wide range DC power input, the DC-1200 offers a powerful, expandable computing platform to ensure long-lasting performance and reduce maintenance costs.

  • Onboard Intel® Pentium® N4200 Processor
  • Supports Triple Independent Display

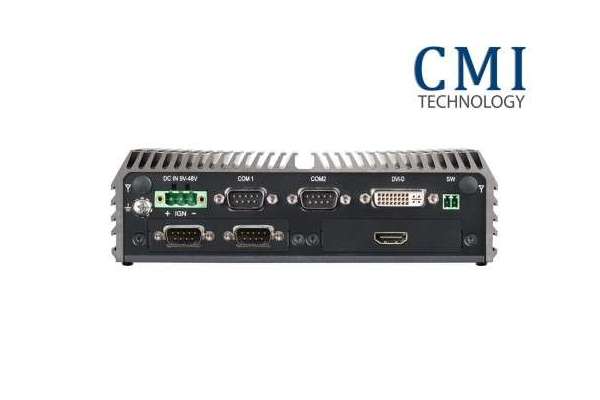

  • Supports CMI Interface for I/O Expandability
  • Supports PoE+ and Power Ignition Function (with optional CFM modules)
  • 1x 2.5” SATA Drive Bay, 1x mSATA Socket
  • 2x Full Size Mini-PCIe Socket, 2x SIM Card Socket
  • Compact Size (185 x 131 x 56.5 mm)
  • Wide Operating Temperature -40°C to 70°C
  • E-Mark (E13, No. 10R-0515075), LVD EN62368-1

Additional information

Processor Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
BIOS AMI BIOS, 8MB SPI Flash ROM built on board
Memory
  • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket
  • Supports up to 8GB (un-buered and non-ECC)
Graphics
  • Integrated Intel® HD Graphics 505
  • Supports Triple Independent Display (DVI-D, DisplayPort and one output from optional CMI module)
Audio Codec Realtek® ALC888-GR
External I/O Interface
  • 1x DVI-D (1920 x 1080 @60Hz)
  • 1x DsiplayPort (4K x 2K @60Hz)
  • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210
  • 4x USB 3.0 (Type A)
  • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
  • 1x Line-out & 1x Mic-in, Phone Jack 3.5mm
  • 1x ATX Power On/O Button
  • 1x Reset Button
  • 1x AT/ATX Mode Switch
  • 1x Clear CMOS Switch
  • 1x Remote Power On/O Connector, 2-pin Terminal Block
  • 1x Ignition DIP Switch (12V/24V, need to work with CFM module
Storage
  • 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
  • 1x 2.5” HDD/SSD Drive Bay (SATA 3.0)
Expansion
  • 2x Full-size Mini-PCIe Socket
  • 2x Control Function Module (CFM) Interface
  • 2x Combined Multiple I/O (CMI) Interface
  • 2x SIM Card Socket for Signal Redundancy
  • 2x Antenna Hole
Other Functions
  • Watchdog Timer: Software Programmable Supports 256 Levels System Reset
  • SuperCap Integrated for CMOS Battery Maintenance-free Operation
  • Supports Instant Reboot Technology (0.2 sec)
Power Requirement
  • Supports AT/ATX Power Type
  • Power Input Voltage 9~48VDC
  • 1x 3-pin Terminal Block
  • Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional)
Physical
  • Dimensions (WxDxH, mm): 185 x 131 x 56.5 mm
  • Weight: 1.42 kg
  • Construction: Extruded Aluminum with Heavy Duty Metal
  • Mounting: Wall / VESA / Din Rail (Optional: Side + Din Rail Mounting Kit)
  • Unibody Chassis
  • Fanless Design
  • Jumper-less Design
  • Cable-less Design
Protection
  • Reverse Power Input Protection
  • Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover
  • Over Current Protection: 15A
  • Surge Protection: 2 kV
Operating System
  • Windows® 10
  • Linux: Supports by project
Environment
  • Operating Temperature: -40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
  • Storage Temperature: -40°C to 85°C
  • Relative Humidity: 95%RH @ 70°C (non-Condensing)
  • Shock: Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27
  • Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64
  • MTBF: 479,119 Hours
Certification
  • EMC: CE, FCC Class A, E-Mark (E13, No. 10R-0515075)
  • Safety: LVD (EN62368-1)
