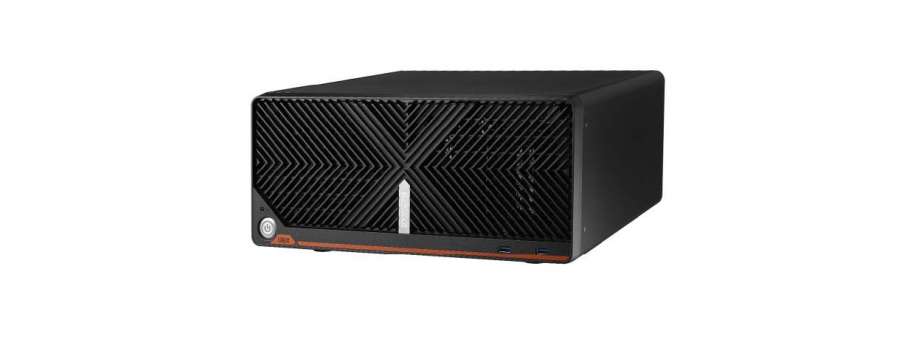

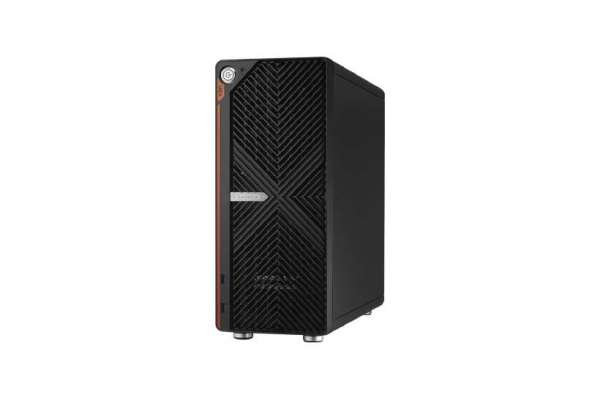

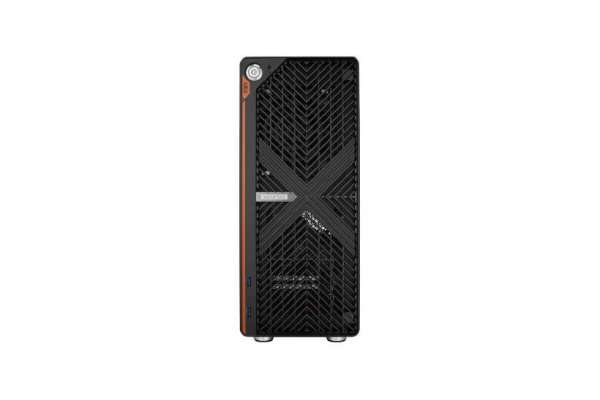

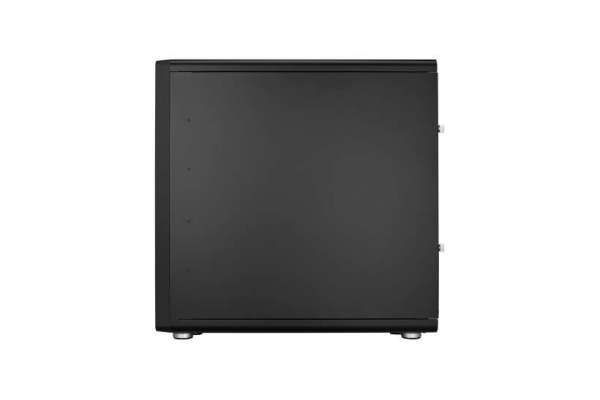

Edge Mini Server System Advantech UBX-510

Edge Mini Server System with Intel® Xeon® W-12xx or 10-13th Gen. Core™ i7/i5/i3 Series Processor Advantech UBX-510

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
UBX-510SZ-BBR00	Intel chipsest W480E Barebone with 500W PSU	67 323,2
UBX-510SL-BBR00	Intel chipsest W680 Barebone with 500W PSU	69 697,9

• Compact size microserver
• Unleashing performance with 13th gen Intel Core W Xeon processors and Windows server OS support
• Efficient thermal solutions tailored for pre-certified PCIe GPU cards in video analytics
• Plentiful I/O ports for various applications

Additional information

Model	UBX-510SZ	UBX-510SL
Processor System
CPU	Intel® Xeon® W-12xx and 10th Gen. Core™ i7/i5/i3 series processors (LGA1200 Socket)	13th/12th Intel® Gen. Core™ i7/i5/i3 series processors (LGA1700 Socket)
Chipset	Intel W480E	Intel W680
Memory
Total Slots	4 (dual channel)	4 (dual channel)
Capacity	Maximum 128 GB	Maximum 128 GB
Type	DDR4 ECC/non-ECC 2933/2666/2400 MHz UDIMM (288-pin)*	DDR5 ECC*/non-ECC 4400**/4000/3600 MT/s UDIMM (288-pin)
Size	4 GB, 8 GB, 16 GB, 32 GB	8 GB, 16 GB, 32 GB
Storage
Drive Bay	Max. 4 x 3.5" internal (or Max. 6 x 2.5" internal with optional brackets and 1 x 3.5" internal)	Max. 4 x 3.5" internal (or Max. 6 x 2.5" internal with optional brackets and 1 x 3.5" internal)
M.2	1 x M.2 2280 (PCIe/SATA)	1 x M.2 2280 (PCIe)
Graphics
Controller	Intel® HD Graphics**	Intel® HD Graphics
VRAM	1 GB maximum shared memory with 2 GB and above system memory installed	1 GB maximum shared memory with 2 GB and above system memory installed

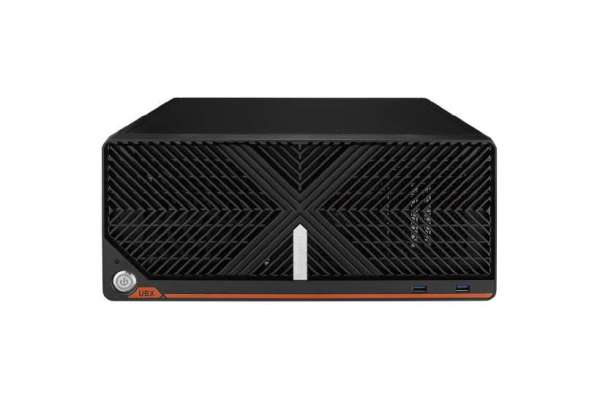

Front I/O	2 x USB 3.2 Gen1 Power button / LED indicator	2 x USB 3.2 Gen1 Power button / LED indicatorv

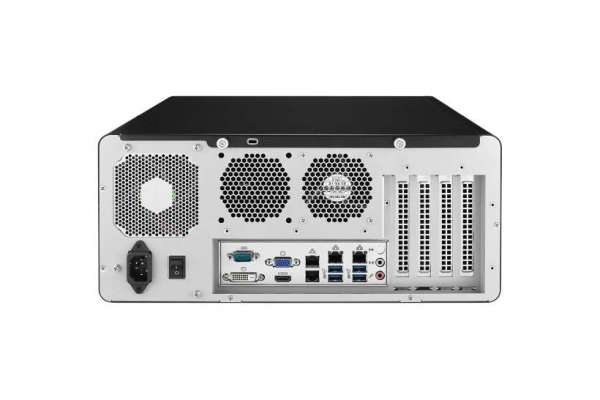

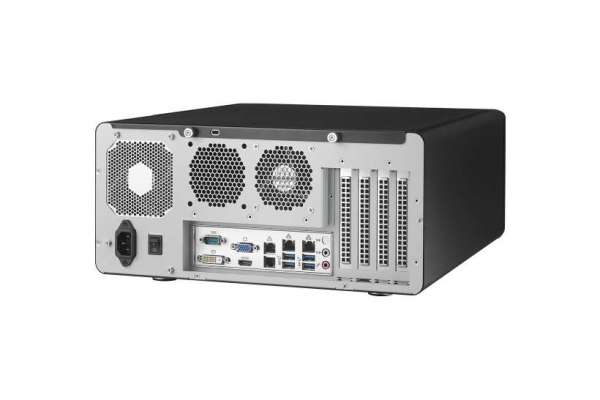

Rear I/O
USB	4 x USB 3.2 Gen2 Type-A	4 x USB 3.2 Gen2 Type-A
Video Display	1 x HDMI 1 x VGA 1 x DVI-D	1 x HDMI 1 x VGA 1 x DVI-D
COM	1 x DB9	1 x DB9
LAN	4 x RJ-45 GbE	4 x RJ-45 GbE
Audio	Mic-in, Line-out	Mic-in, Line-out
PCIe Expansion	1 x PCIe Gen3 x16 slot 2 x PCIe Gen3 x4 slot	1 x PCIe Gen5 x16 slot 2 x PCIe Gen4 x4 slot
On Board Connectors	5 x FAN connector, 5 x SATA 3.0, SMBUS, 2 x serial ports, 1 x chassis intruder, audio, 1 x USB 3.2 Gen 1 (2 ports), 3 x USB 2.0 (6 ports), 1 x USB Type-A	5 x FAN connector, 5 x SATA 3.0, SMBUS, 2 x serial ports, 1 x chassis intruder, audio, 1 x USB 3.2 Gen 1 (2 ports), 2 x USB 2.0 (4 ports), 1 x USB 2.0 Type-A
Power Supply Unit	500 W 80+bronze PSU	500 W 80+bronze PSU
Environment
Operation Temperature	0 ~ 40°C	0 ~ 40°C
Storage Temerature	-20 ~ 60°C	-20 ~ 60°C
Vibration	0.5Grms	0.5Grms
Shock	10G (with 11ms duration, half sine wave)	10G (with 11ms duration, half sine wave)
Humidity	95% @ 40°C, non-condensing	95% @ 40°C, non-condensing
OS Support	Windows Server 2019/2022, Windows 10/11	Windows Server 2022, Windows 10/11
Dimensions (W x H x D)	160 x 370 x 380 mm	160 x 370 x 380 mm
Weight (kg)	Net weight : 6 / Gross weight :7	Net weight : 6 / Gross weight : 7
Certifications	CE, FCC, UL, CCC, CB	CE, FCC, UL, CCC, CB
Others	Kensington lock, Equipotential terminal	Kensington lock, Equipotential terminal
