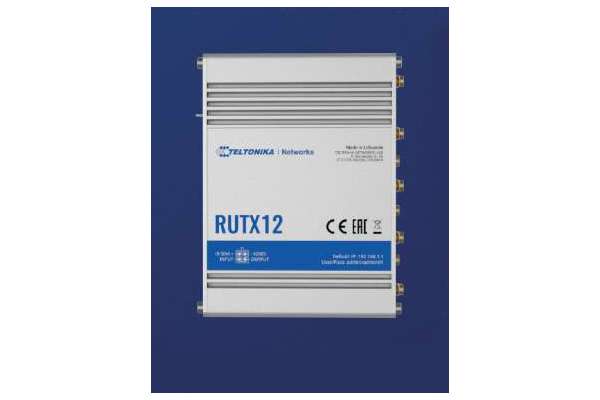

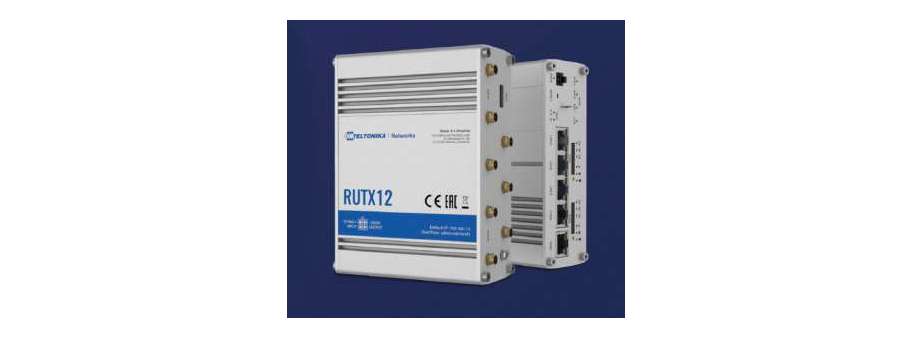

Dual LTE Cellular router Teltonika RUTX12
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| RUTX12000000 | Teltonika RUTX12 - LTE маршрутизатор на 2 SIM, незалежні радіомодулі, із Wi-Fi 2,4 та 5 ГГц, 4 порти Gigabit Ethernet, 1 порт WAN/LAN, GPS, в комплекті антени із кабелем та блок живлення. | 24 404,6 | |
| Teltonika RMS | Програма віддаленого керування обладнанням «Teltonika RMS» (ліцензія на один місяць для одного пристрою). | 189,6 | Доступно |
| 088-00270 | Комплект кріплення на DIN-рейку PR5MEC11 (для Teltonika RUT) | 213,9 | |
| 058R-00229 | Кабель живлення 4-pin із гвинтовою клемою | 568,7 | Доступно |
| PR1KCO28 | Зовнішня combo MIMO MOBILE/GNSS/WIFI SMA антена (003R-00253) | 2 944,0 |
RUTX12 is the most powerful Dual LTE Cat 6 router in our portfolio.
Two simultaneously operational LTE Cat 6 modems provide speeds up to 600 Mbps with load balancing feature.
5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, and USB interfaces and dual SIM make this device irreplaceable in applications where losing connection is not an option.
Packed with advanced security features like VPN, IPsec, PPTP, L2TP, Stunnel and GNSS tracking
- Cellular speeds up to 600Mbps with dual simultaneous LTE CAT 6 connections
- Instant failover switching
- Wave-2 802.11ac Dual Band WIFI and Bluetooth LE
- Global Navigation Satellite System for location services and time synchronization
- Allows to use multiple WAN sources to increase throughput
- Compatible with Teltonika Remote Management System
Additional information
Mobile |
|
| Mobile module | 2 x 4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps |
| SIM/mobile module switch | 2 SIM cards, one for each mobile module, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned) |
| Status | Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, Mobile module in use |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to TTP, SMS to SMS, SMS auto replay, scheduled SMS (planned), SMPP (planned) |
| Black/White list | Operator black/white list |
| Multiple PDN (planed) | Possibility to use different PDNs for multiple network access and services |
| Band management | Band lock, Used band status display |
| APN | Auto APN |
| Bridge mode | Direct connection (bridge) between mobile ISP and device on LAN |
Wireless |
|
| Wireless mode | 802.11b/g/n/ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| WiFi security | WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| ESSID | ESSID stealth mode |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
Ethernet |
|
| WAN | WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
Bluetooth |
|
| Bluetooth 4.0 | Bluetooth low energy (LE) for short range communication |
Network |
|
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
| NetSnapper (optional) | Mobile connection management, data compression VPN client (not available in standard FW) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL) |
| VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
| Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
| QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
| DDNS | Supported >25 service providers, others can be configured manually |
| Network backup | VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| SSHFS (optional) | Possibility to mount remote file system via SSH protocol (not available in standard FW) |
Security |
|
| Authetication | Pre-shared key, digital certificates, X.509 certificates |
| Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port based and tag based VLAN separation |
| Mobile quota control | Custom data limits for both SIM cards |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
Open |
|
| OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec | IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
| GRE | GRE tunnel |
| PPTP, L2TP | Client/Server instances can run simultaneously |
| Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN | Method of building scalable IPsec VPNs |
| SSTP | SSTP client instance support |
Modbus |
|
| Modbus TCP slave | ID filtering: Respond to one ID in range [1;255] or any Allow remote access: Allow access through WAN Custom registers: Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality |
| Modbus TCP master | Supported functions: 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
| MQTT gateway | Gateway Allows sending commands and receiving data from Modbus Master trough MQTT broker |
| Modbus data to server | Protocols HTTP(S), MQTT, Azure MQTT (planned) |
Monitoring & management |
|
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| CALL | Reboot, Status, Mobile data on/off, Output on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP trap |
| JSON-RPC | Management API over HTTP/HTTPS |
| Modbus | Modbus TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
IoT platforms |
|
| Clouds of things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
| ThingWorx | Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
| Azure IoT Hub | Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
| System characteristics | |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| FLASH memory | 256 MB Flash |
Firmware / configuration |
|
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW/configuration from server |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
Firmware customization |
|
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
Location tracking |
|
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| Server software | Supported server software: TAVL, RMS |
| Mobile Network Geolocation | Get approximate device location on RMS based on mobile cell tower position (without using GPS) |
| Geofencing | Configurable multiple geofence zones |
Usb |
|
| Data rate | USB 2.0 |
| Applications | Samba share, custom scripts (planned) |
| External devices | Possibility to connect external HDD, flash drive, additional modem, printer (planned) |
| Storage formats | FAT, FAT32, NTFS |
Input/output |
|
| Input | 1x Digital Input |
| Output | 1x Digital Output |
| Events | SMS, Email, RMS |
Power |
|
| Connector | 4 pin industrial DC power socket |
| Input voltage range | 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE. Possibility to power up through LAN1 port, not compatible with IEEE802.3af and 802.3at standards |
| Power consumption | Idle: <4 W, Max: <22 W |
Physical interfaces |
|
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/Os | 1 Digital Input, 1 Digital Output on 4 pin power connector |
| Status LEDs | 6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2.4G and 5G WiFi LEDs |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
| Power | 4 pin DC connector |
| Antennas | 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS |
| USB | USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
Physical specification |
|
| Casing material | Full aluminium housing |
| Dimensions | 95 x 132 x 44 mm (L x W x H) |
| Weight | 540 g |
| Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
| Operating environment | |
| Operating temperature | -40 C to 75 C |
| Operating humidity | 10 % to 90 % non-condensing |
