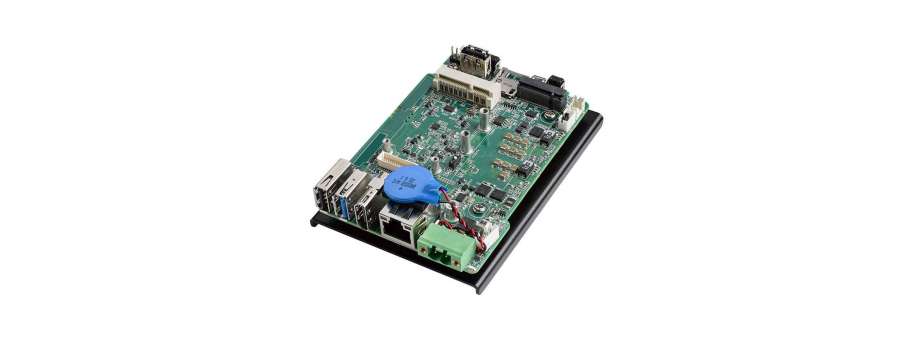

NVIDIA® Jetson Nano™ Developer Kit deep learning trained models Advantech MIC-710AIL-DVA1
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| MIC-710AIL-DVA1 | Комплект розробника Advantech MIC-710AIL_Developer kit NVIDIA® Jetson Nano™ embedded | 19 269,5 | |
| MIC-710AIL-DVA2 | Комплект розробника Advantech MIC-710AIL_Developer kit NVIDIA® Jetson Nano™ embedded, no SD card | 19 269,5 |
- NVIDIA® Jetson Nano™ embedded
- 1 x M.2 2280 NVMe for storage
- 1 x Mini PCIe for expansion
- Linux OS with BSP (board support package)
- Supports deep learning trained models
Additional information
Processor System |
|
| CPU | Quad Core ARM Cortex A57 (Max. operating frequency: 1.43GHz) |
| GPU | Maxwell GPU, 128 CUDA core, performance up to 472 GFLOPS (FP16) (Max. Frequency: 921MHz) |
| Memory | 4GB LPDDR4 |
| Flash | 16G of eMMC |
Ethernet |
|
| Interface | RJ-45 |
| Controller | On-module embedded |
| Speed | 1 x Gigabit Ethernet (10/100/1000 Mbps) |
I/O |
|
| Display | HDMI (Max. resolution 3840x2160 @ 60Hz) |
| USB |
|
| OTG USB (External) | 1 x Micro USB |
| DI/DO | - |
| COM | RS-232 (By pin header) |
| SIM card | 1 x Nano SIM |
Expansion |
|
| MiniPCIe | 1 x Full size MiniPCIe* (PCIex1 + USB 2.0) |
Storage |
|
| M.2 | 1 x M.2 2280 NVMe* (PCIex1 M Key) |
| SD card | 1 x Micro SD |
Power |
|
| Power supply | Power adapter: 12-24V, 4A-2A (adapter is optional) |
| Power type | Terminal block 2 Pin |
Mechanical |
|
| Dimensions (W x D x H) | 116 x 82 x 30 mm; 4.5 x 3.2 x 1.18 in |
| Weight | 150 g; .33 lb |
| Operating System | Linux - Ubuntu 18.04 with JetPack |
