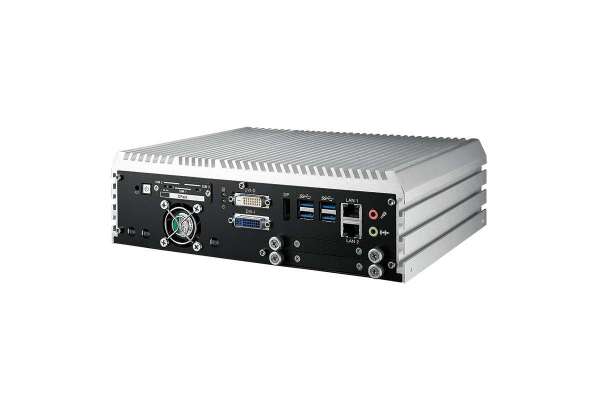

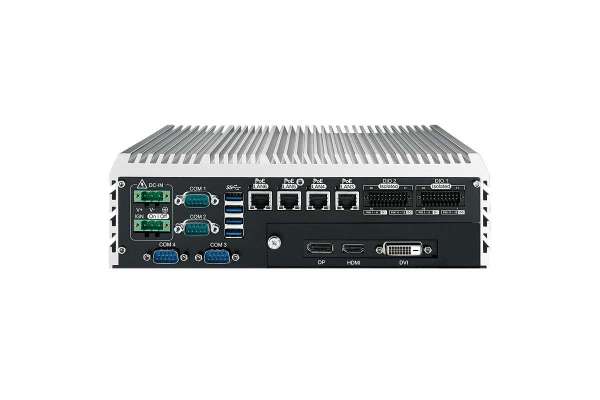

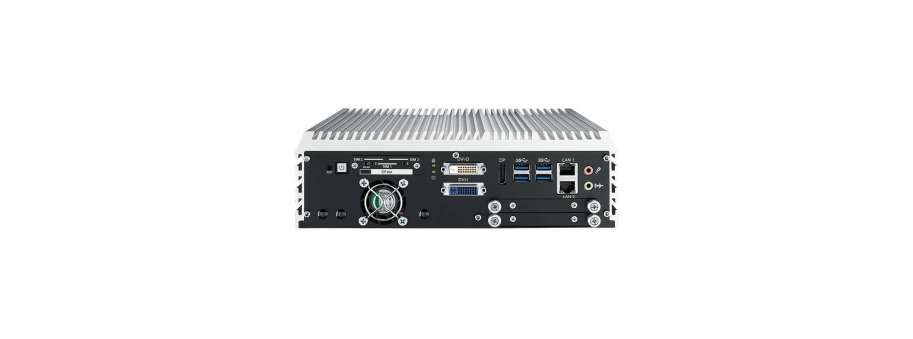

Computing System ECS-9240 GTX1050 by Intel® Xeon®/Core™ i7 (Kaby Lake-S) processor running with NVIDIA GeForce® GTX 1050 graphics engine Vecow ECS-9240
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| ECS-9240-GTX1050T | Промисловий компактний комп'ютер Vecow ECS-9240-GTX1050T (ECS-9200, NVIDIA GeForce® GTX 1050 Ti, 6 GigE LAN w/4 PoE+, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M.2, 1 M2DOM, 3 SIM, 32 Isolated DIO) | 104 296,0 | |
| ECS-9240-GTX1050 | Промисловий компактний комп'ютер Vecow ECS-9240-GTX1050 (ECS-9200, NVIDIA GeForce® GTX 1050, 6 GigE LAN w/4 PoE+, 2 SSD Tray, 8 USB 3.0, 4 COM, 1 M.2, 1 M2DOM, 3 SIM, 32 Isolated DIO) | 121 454,0 |
Powered by Intel® Xeon®/Core™ i7 (Kaby Lake-S) processor running with NVIDIA GeForce® GTX 1050 graphics engine, advanced NVIDIA Pascal™ GPU architecture supporting CUDA applications & 8K resolution, up to 6 independent HD displays, -20°C to 60°C operating temperature, all-in-one integrated features, multiple I/O connection, outstanding system performance, mobile availability, smart manageability, wide range power input, surge protection, ignition power control, isolated DIO, EN50155 and industrial-grade reliability, Vecow ECS-9200/9100 GTX1050 Series GPU Computing System is your great solution for Machine Vision, Embedded Workstation, Traffic Vision, Telemedicine, Intelligent Control, Deep Learning, Artificial Intelligence, Voice Reorganization and any graphics performance driven Industry 4.0/IIoT applications.
- LGA 1151 Socket supports workstation-grade Intel® Xeon®/Core™ i7 Processor (Kaby Lake/Skylake) with C236 chipset
- NVIDIA GeForce® GTX 1050 Graphics engine supports NVIDIA Pascal™ GPU architecture, up to 8K resolution
- Multiple DVI, DisplayPort and HDMI display interfaces, up to 6 independent HD displays
- 2 DDR4 2133MHz Memory, up to 32GB (ECC/Non-ECC)
- 6 Independent GigE LAN with 4 IEEE 802.3at PoE+, iAMT 11.0 supported
- 3 SIM Card Socket for WiFi/3G/4G/LTE/GPRS/UMTS
- Storage : 2 2.5" SSD Tray, 1 CFast, 2 SATA III
- Expansion : 1 M.2 Socket, 3 Mini PCIe/mSATA
- 32 Isolated DIO, 8 External USB 3.0, 4 COM
- 10V to 36V DC power input with 80V Surge Protection
- Configurable Ignition Power Control, Smart Battery Protection
- -20°C to 60°C Operating Temperature
Additional information
| System | |
| Processor | Quad Core Intel® Xeon®/Core™ i7 Processor (Kaby Lake-S/Skylake-S) |
| Chipset | Intel® C236 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2400/2133 MHz SO-DIMM, up to 64GB (ECC/Non-ECC) |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8KV) |
| USB |
- 8 USB 3.0 (External) - 1 USB 2.0 (Internal) |
| Isolated DIO | 32 Isolated DIO : 16 DI, 16 DO |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 3 SIM Card Socket (External) |
| Expansion | |
| Mini PCIe | 3 Full-size for PCIe/USB/External SIM Card/mSATA |
| M.2 | 1 M.2 Socket (Key ID : M) |
| Graphics | |
| Graphics Processor |
- Intel® HD Graphics P630/630/P530/530 - NVIDIA GeForce® GTX 1050 Ti/GTX 1050 |
| Interface |
6 Display interfaces : - 3 DVI : Up to 1920 x 1200 @ 60Hz - 1 DisplayPort : Up to 7680 x 3840 @ 60Hz - 1 DisplayPort : Up to 4096 x 2304 @ 60Hz - 1 HDMI : Up to 4096 x 216 0 @ 60Hz |
| Storage | |
| SATA | 2 SATA III support S/W RAID 0, 1 |
| mSATA | 3 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device |
- 1 CFast Socket, Push-in/Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219 GigE LAN supports iAMT 11.0 |
| LAN 2 | Intel® I210 GigE LAN |
| PoE | |
| LAN 3 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control |
| LAN 4 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control |
| LAN 5 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control |
| LAN 6 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 with Power On/Off Control |
| Power | |
| Power Input | 10V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats |
| Software Support | |
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
| Mechanical | |
| Dimension (W x L x H) | 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”) |
| Weight | 4.3 kg (9.48 lb) |
| Mounting |
- Wallmount by mounting bracket - DIN Rail Mount (Optional) - 2U Rackmount (Optional) |
| Environment | |
| Operating Temperature |
35W TDP CPU : - Core™ i7 : -20°C to 60°C (-4°F to 140°F) - Xeon® E3-1268L v5 : -20°C to 60°C (-4°F to 140°F) 65W TDP CPU : Core™ i7 : -20°C to 55°C (-4°F to 131°F) 80W TDP CPU : Xeon® E3-1275 v6, E3-1275 v5, E3-1225 v5 : -20°C to 45°C (-4°F to 113°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 60°C |
| Shock |
- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration |
- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | E13, CE, FCC, EN50155, EN50121-3-2 |
