Computing Box Module TPC-B610

Modular TPC - Computing Box Module with Intel® 10th Gen. Core™ i CPU Socket (LGA1200) Advantech TPC-B610

Price and avalability

Partnumber	Description	Price VAT incl	Avalability
TPC-B610H-A00A	Модульний комп'ютер Advantech TPC-B610H, H420E, LGA1200P, PCIex16	60 342,5
TPC-B610W-A00A	Modular TPC Box, W480E, LGA1200P, PCIex16/x4	65 750,4

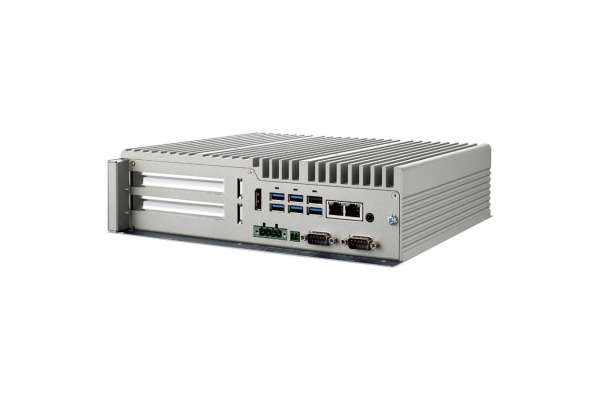

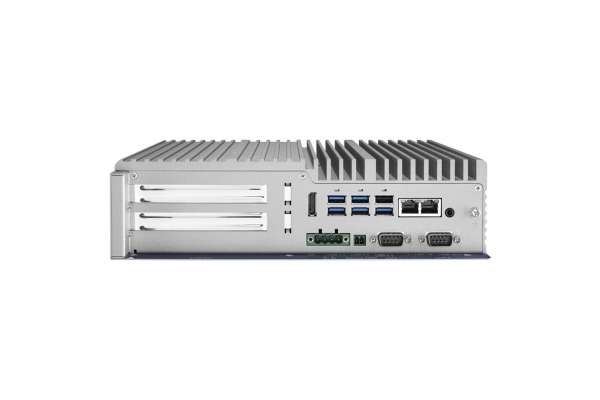

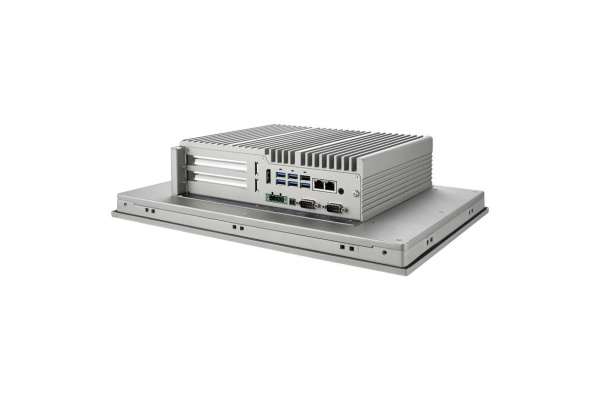

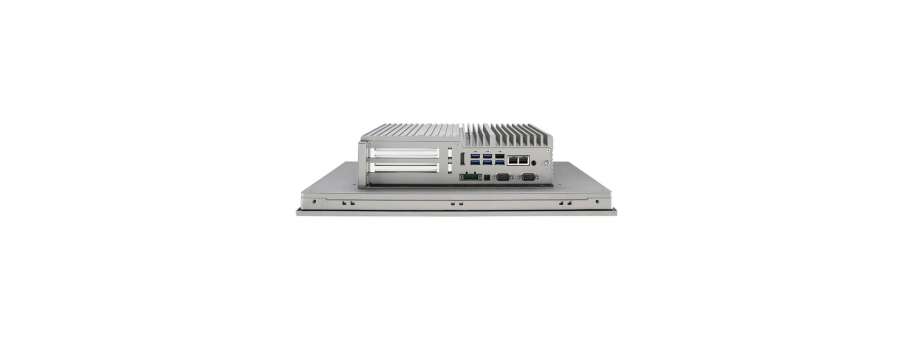

Advantech's TPC-B610 is the highest performance Panel PC solution to date for your future-proof Industry 4.0 application. This Modular Computing Box, with its iconic fanless design, is powered by 10th Gen. Intel Core i Socket (LGA1200), a total of 64GB DDR4, comprehensive I/Os including 6 x USBs, greatest expansion via PCIe x16 and bountiful Storage through M.2 SATA/NVME and 2 x 2.5" HDD/SSD slots, living up to your high-end processing and calculation demands. With an easy pairing with Panel Module, a premium Panel PC system with IP66-grade, ranging from 15" to 23.8" up to FHD resolution, is born to meet your corporate expectation. *For other Modular Series TPC/FPM family members, please find 'TPC-B500', 'TPC-B200'and 'FPM-B700' on Advantech's official website.

• High Performance Computing Box powered by Intel® 10th Gen. Core™ i CPU Socket (LGA1200) with fanless design
• 6 x Panel Modules (IP66) ranging from 15" to 23.8" in selection
• Dual Channel Memory slots (DDR4) support up to 64GB in total
• Comprehensive I/Os, including 6 x USB, 2 x COM, 2 x RJ45...etc
• Supports Expansion via 1 x PCIe x16, ,1 x PCI or PCIe x 4, 1 x mPCIe, 2 x M.2 (NVMe, SATA, 5G)
• Supports Storage via 2 x 2.5" HDD/SSD (RAID 0/1), 2 x M.2 (2242/2280)
• Supports Fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
• Supports Diverse system I/O, DIO, PoE...etc. via iDoor technology
• Supports TPM 2.0 hardware security

Additional information

General
BIOS	AMI UEFI
Certification	BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System	Fanless design
Dimensions (W x H x D)	269 x 224 x 70 (mm)
Enclosure	Die cast aluminum alloy
Mounting	VESA Mount, Desktop, Wall or Panel Mount
OS Support	Win10 LTSC, Linux
Security	TPM 2.0 (built-in)
Power Consumption	Typ. 74W; Max. 187W (without Panel Module)
Power Input	24 VDC ± 20%
Watchdog Timer	15-255 sec (system)
Weight (Net)	4.5 kg (9.92 lbs)
System Hardware
CPU	Intel® 10th Gen. Core™ i Socket CPU (LGA1200)****
Memory	Dual channel DDR4 SO-DIMM, ECC supported.** (Each channel supports up to 32G, 2933 MHz)
LAN	2 x 10/100/1000BASE-T (LAN A: i219, LAN B: i210***)
Expansion Slot	1 x PCIe x16 1 x PCI** 1 x PCIe x4** 1 x Full-size mini PCIe 1 x M.2 B key 3025 (5G) USB3 1 x SIM card slot
Storage Slot*	1 x M.2 M key 2280 (SATA or NVMe PCIex4)** 1 x M.2 B key 2242 (SATA) 2 x 2.5" SSD/ HDD (SATA, Max. 7mm)**
I/O	1 x RS-232/422/485 (COM 1) 1 x RS-232 (COM 2) 5 x USB 3.2 (Gen 1) 1 x USB 2.0 1 x Displayport 1.2 1 x Audio line out/Mic in
Environment
Humidity	95% RH @ 40°C, non-condensing
Ingress Protection	IP66 (for optional panel module with "Panel Mount")
Operating Temperature	35W CPU: -10~50°C (14~122°F) (w/ 0.7 m/s airflow) 65W CPU: -10~40°C (14~104°F) (w/ 0.7 m/s airflow)
Storage Temperature	-20~70°C (-4~158°F)
Vibration Protection	With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
