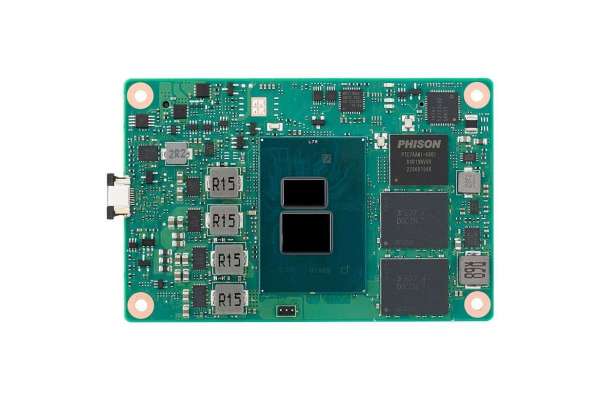

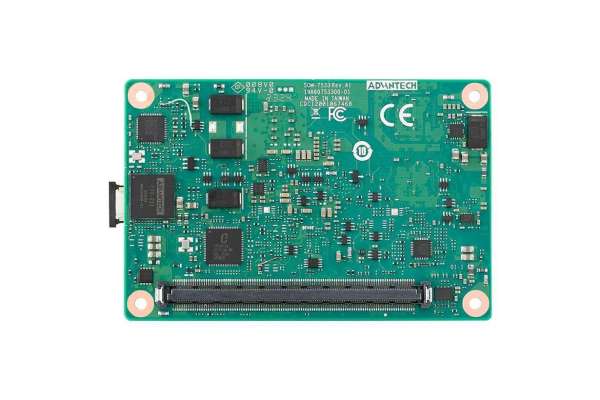

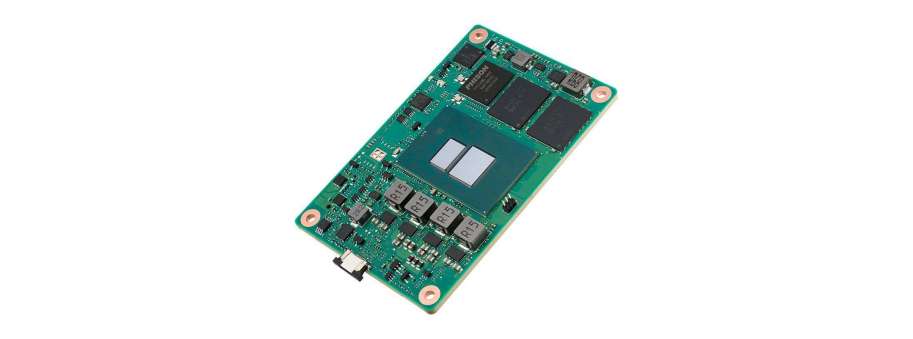

Intel® Core™ i3, N series and Atom® x7000 Series Processors (Alder Lake-N/Amston Lake) COM Express® Mini Type 10 Module Advantech SOM-7533/R

Price and avalability

Partnumber Description Price VAT incl Avalability
SOM-7533DCCC-S8A1 I3-N305 15W 8C LPDDR5 16G eMMC 64G COMe Mini  45 834,1
SOM-7533CCBC-U0A1 N97 12W 4C LPDDR5 8G eMMC 32G COMe Mini  26 092,4
SOM-7533DCBC-S0A1 N200 9W 4C LPDDR5 16G eMMC 32G COMe Mini  33 489,2
SOM-7533BCAC-S0A1 N50 6W 2C LPDDR5 4G eMMC 16G COMe Mini  23 584,0
SOM-7533CCBC-S5A1 x7425E 12W 4C LPDDR5 8G eMMC 32G COMe Mini  29 770,7
SOM-7533RDCBX-S3A1 x7835RE 12W 8C LPDDR5 16G eMMC 32G COMe Mini  63 858,7
SOM-7533RCCBX-S5A1 x7433RE 9W 4C LPDDR5 8G eMMC 32G COMe Mini  43 749,0
SOM-7533RBC0X-S0A1 x7211RE 6W 2C LPDDR5 4G COMe Mini  36 566,9
  • COM Express® R3.1 Mini Module Type 10 Pinout
  • Intel® Core-i®/Pentium®/Celeron® and Atom® x7000 Series Processors
  • Single-CH LPDDR5 4800MT/s up to 16GB, support IBECC
  • 2.5GbE support TSN
  • Multiple I/O expansion: PCIe gen3, USB3.2 Gen2, SATA3.0
  • On board eMMC up to 64GB (Optional)
  • Supports iManager, Embedded Software APIs and Wise-DeviceOn

Processor System

CPU N50 N97 N200 i3-N305 x7425E x7835RE x7433RE x7211RE
Base Frequency 1.0 GHz 2.0 GHz 1.0 GHz 1.0/1.8 GHz 1.5 GHz 1.3 GHz 1.5 GHz 1.0 GHz
Max Single Core Turbo Frequency 3.4 GHz 3.6 GHz 3.7 GHz 3.8 GHz 3.4 GHz 3.6 GHz 3.4 GHz 3.2 GHz
Cores 2 4 4 8 4 8 4 2
LLC 6 MB 6 MB 6 MB 6 MB 6 MB 6 MB 6 MB 6 MB
CPU TDP 6W 12W 6W 9/15W 12W 12W 9W 6W
IBECC Yes Yes Yes Yes Yes Yes Yes Yes
BIOS AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit AMI UEFI 256Mbit

Graphics

Controller Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics Intel® UHD Graphics
EU 16 24 32 32 24 32 32 16
Base. Frequency 600 MHz 850 MHz 450 MHz 1.0 GHz 800 MHz 800 MHz 600 MHz 400 MHz
Max. Frequency 750 MHz 1.2 GHz 750 MHz 1.25 GHz 1.0 GHz 1 GHz 800 MHz 800 MHz

Additional information

Form Factor

Form Factor COM Express Mini
Pin-out Type COM Express R3.1 Type 10 compatible

Memory

Technology LPDDR5
Speed 4800 MT/s
Max. Capacity Up to 16GB
Channel/Socket Single Channel / Memory down
ECC Support IBECC Supported by all CPU SKUs

Graphics

3D/HW Acceleration
  • Open GL 4.6, DirectX 12.1 Vulkan 1.2 (Windows)
  • Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux)

Display

LCD (LVDS/eDP) 1port LVDS single channel: 1366 x 768 @60Hz/eDP 1920 x 1080 @60Hz (Up to eDP 4096 x 2304 by specific SKU)
DDI (HDMI/DisplayPort)

1 DDI Port Support Configurable HDMI/DisplayPort

-HDMI 2.0b: 4096 x 2034 @ 60Hz

-DisplayPort 1.4: 4096 x 2034 @ 60Hz

Multiple Display Double Simultaneous Independent Display

Expansion

PCI Express x1 (Gen3) 4 PCIe x1 by default, 2 PCIe x2 by option; Support Configurable 1 PCIe x4 by SATA option
Audio Interface HD Audio
LPC Yes

Serial Bus

SMBus Yes
I2C Bus Yes

Ethernet

Gigabit Intel I226 controller ; Speed: 10M / 100M / 1000M / 2.5G speeds, Support TSN by specific SKU

I/O

SATA3.0 2 Port (6 Gbps)
USB3.2 (Gen2) 2 Ports (10 Gbps)
USB2.0 8 Ports (480 Mbps)
SPI Bus Yes. For BIOS EEPROM
GPIO 8-bit
Onboard Storage eMMC up to 64GB (Optional)
Watchdog 65536 level, 0 ~ 65535 sec
COM Port 2 Ports (4-Wire), 2 Ports (2-Wire)
TPM TPM2.0
CAN Bus 2 Ports

Power

Type ATX: Vin, VSB; AT: Vin
Supply Voltage Vin: 4.75V ~ 20V; VSB: 4.75V ~ 5.25V; RTC Battery: 2.0V ~ 3.3V
Power Consumption (Max.) TBD
Power Consumption (Idle) TBD

Environment

Operating Temperature
  • Operating Standard: 0 ~ 60 °C (32 ~ 140 °F),
  • Extend: -40 ~ 85 °C (-40 ~ 185 °F) with 0.7m/s air flow.
  • Storage: -40 ~ 85 °C (-40 ~ 185 °F)
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Humidity
  • Operating: 40 °C@95% relative humidity, non-condensing
  • Storage: 60 °C@95%relative humidity, non-condensing
Vibration Resistance 3.5 Grms

Mechanical

Dimensions 84 mm x 55 m
