2xCOM 2xLAN Intel Atom LAN VGA

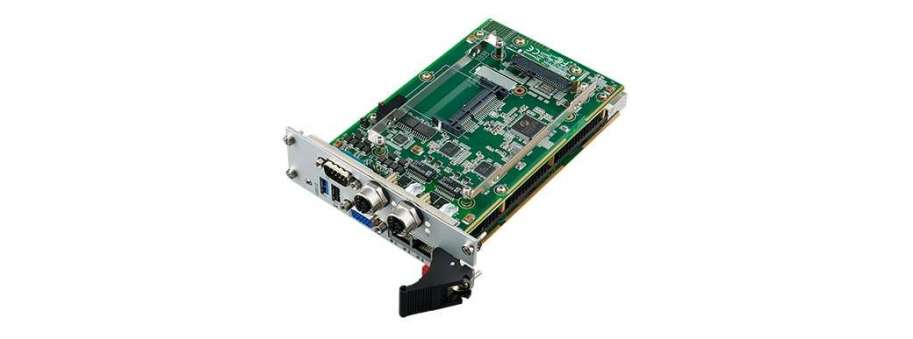

3U CompactPCI® processor blade, is featured with a dual-core E3827 and quad-core E3845 ATOM SoC processor Advantech MIC-3329

Price and avalability

Partnumber Description Price VAT incl Avalability
MIC-3329C1-D1E Процесорна плата CPCI 3U Advantech MIC-3329 W/ E3845 4G RAM DUAL SLOT ROHS  83 199,9
MIC-3329R1-D1E Плата портов ввода-вывода для MIC-3329 RIO-1 W/ 2LAN&2COM PORTS, DUAL  32 288,0
MIC-3329C1-D2E Процесорна плата CPCI 3U Advantech MIC-3329 E3845 w./ HDD&Cfast,2xM12 dual SL B101  106 513,0
MIC-3329C3-D2E Процесорна плата CPCI 3U Advantech MIC-3329 E3845 4G RAM dual slot RoHS  92 935,5

Advantech MIC-3329 Series, using Intel® latest 22 nm Atom™ technology (code name: Baytrail) to provide significant performance and power efficiency.

• Supports latest 22nm Intel® Atom™ Low power Quad Core E3845/Dual Core E3827 SoC processor
• Supports up to 4GB DDR3L-1333 soldered ECC memory
• Optional extension module on 8HP and RIO for VGA, LAN, USB, PS/2, Audio, COM ports
• Supports fanless application with optimized heatsink design
• Design to meet EN50121-4 and EN50155 for railway application
• PICMG2.0 R3.0, PICMG2.1 R.0 Compliant

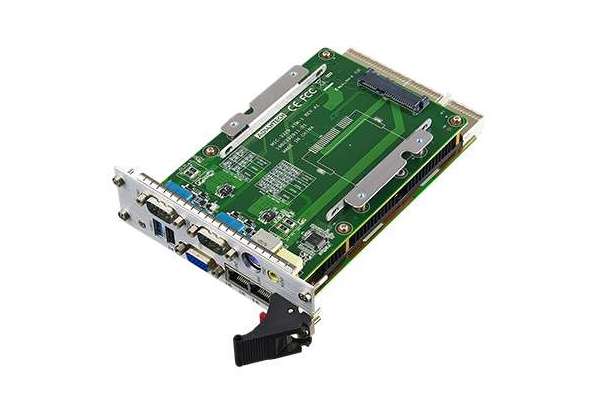

MIC-3329 series, as a 3U CompactPCI® processor blade, is featured with a dual-core E3827 and quad-core E3845 ATOM SoC processors, up to 4GB soldered DDR3L-1066/1333 ECC memory. It is available in single and dual slots width form factor, to offer various I/O functionalities by XTM (8HP) & Rear IO extensions. Front panel I/O on the single slot (4HP) provides 2 x RJ45 GbE ports (Switchable with RIO 4HP),1 x VGA port (Switchable with RIO 4HP), 1 x USB2.0 port and 1 x USB3.0 port. Front panel I/O on the second layer (XTM) provides 2 x COM ports (RS232/422/485), 1 x PS/2 KB/MS and 1 x Audio ports. There are three types of storage device available such as on board 8GB SSD flash on 4HP (optional) or a Cfast socket on RIO 4HP, Cfast socket or 2.5" on board SATA drive on the front second layer.

MIC-3329 provides an ideal solution for transportation, railway and factory automation application. By using robust design on board layout & thermal, it is available to meet or exceed EN50155 and EN50121-4; With a very low TDP selection of processor such as 8W/10W, its low power consumption and industrial SoC features make MIC-3329 perfect fit for all fanless system applications.

Additional information

Processor System

CPU Intel® Atom™ Processor E3826/E3827/E3845
Max Speed Up to 2MB L2 Cache, 1.91 GHz
BIOS 2 x AMI 8 MByte SPI flash

Memory

Technology Single Channel DDR3L 1066/1333 MHz with ECC
Max. Capacity Up to 4GB on board

Compact PCI Interface

J1 Connectors 32bit/33MHz PCI local bus
J2 Connector RTM
Mode System Master/Drone (Stand alone)

Ethernet

Controller Intel® WGI210 SLJXR Gigabit Ethernet Controller
Interface PCIe 1.0 x 1, 10/100/1000 Base TX Ethernet
I/O Connector 2 x RJ45 to 4HP front (Switchable with RIO 4HP); 2xM12 X-Code, 2xM12 D-Code on 8HP front

Graphics

Chipset Integrated in processor
I/O Connector 1 x VGA to 4HP front (Switchable with RIO 4HP)
Resolution 1 x VGA 2560 x 1600, 60Hz

Storage

Mode SATA-II
Channels
  • Option 1: 1 x SATA connector and 1x Cfast connector on 8HP
  • Option 2: 1 x SATA connector on 8HP and 1 x Cfast socket on RTM (Switchable with NAND flash, upon request)
  • Option 3: 2 x M.2 SATA on 8HP

Front I/O

USB 1 x US2.0 type A, 1 x USB3.0 type A
VGA 1 x VGA (Switchable with RIO)
LAN 2 x 10/100/1000Mbps on RJ45 (Switchable with RIO)
Front Panel LEDs x 1 blue/yellow for Hot Swap/HDD, x 1 green for Power, and x 1 green for Master/Drone mode
8HP (XTM)

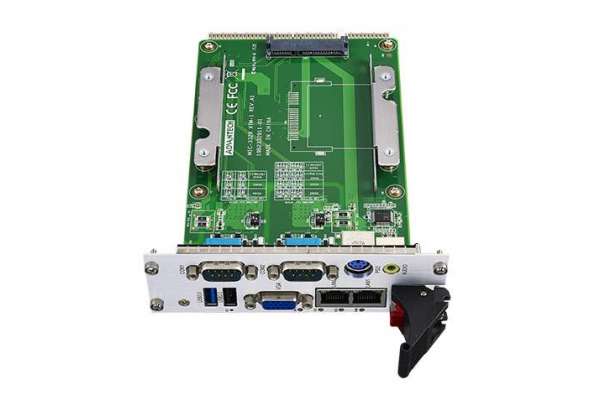

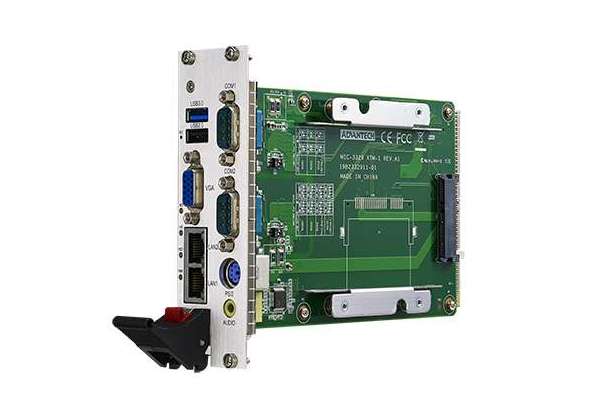

  • Option 1: 2 x DB9 COM; 1 x PS/2; 1 x Audio Line in/out

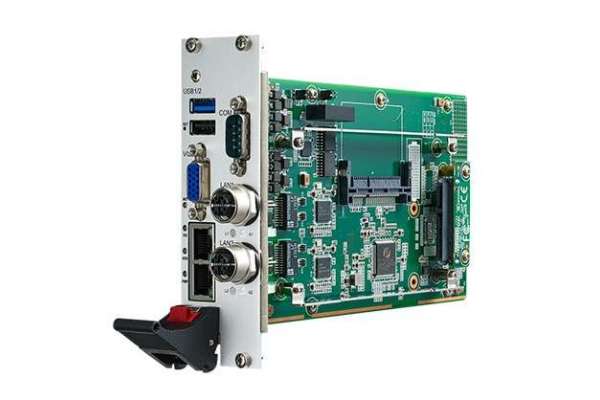

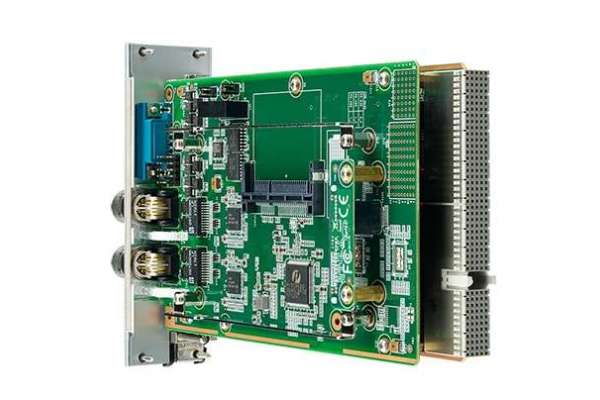

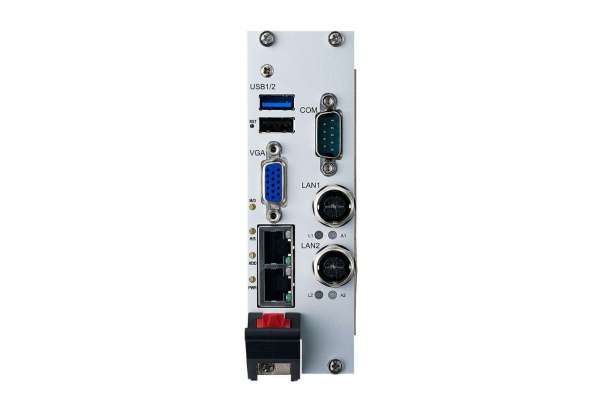

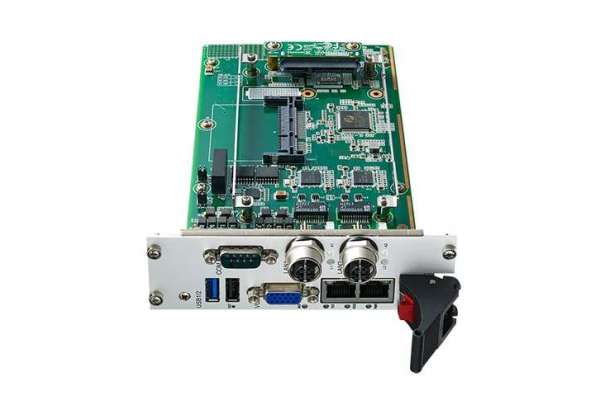

  • Option 2: 1 x DB9 COM; 2 x M12 X-coded GbE
  • Option 3: 2 x M12 X-code, 2 x M12 D-code
Buttons System reset button

To RTM

USB 2 x US2.0 type A,
VGA 1 x VGA (Switchable with front)
LAN 2 x 10/100/1000Mbps on RJ45 (Switchable with front)
8HP (XTM) 2 x COM port on DB9 (RS232/422/485)

BIOS

Boot Options SATA, USB, network (PXE)

Watchdog Timer

Output Local reset
Interval Programmable 1s ~ 255s

Operating System

Compatibility Windows7, Windows 10, Linux, CentOS6.6, VxWorks 6.9 & 7.0

Physical

Dimension & Weight 3U/ 4HP&8HP: 100mm x 160 mm

Environment

Temperature

Operating: -40 ~ 70 °C (-40 ~ 158 °F) Fanless

Non-operating: -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating: 95 % @ 40 °C, non-condensing

Non-operating: 95 % @ 60 °C, non-condensing

Vibration

Operating: 2Grms (X,Y,Z 1H/axis, w/o HDD)

Non-operating: 2G

Shock 30 G, 11ms, each axis three times

Regulatory

Conformance

FCC Class A, CE, RoHS

EN50121-4, EN50155

Compliance

Standards PICMG2.0 R3.0, PICMG2.1 R2.0
