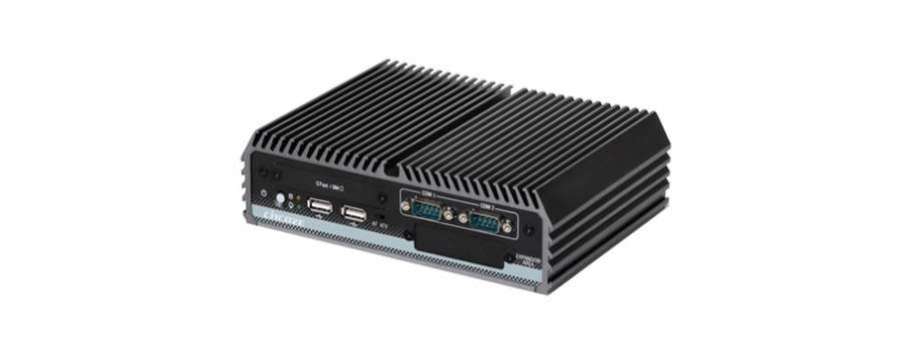

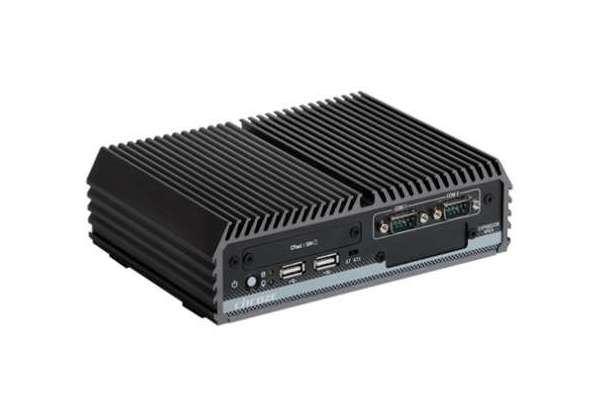

Compact Size Fanless Computer and 2x Mini-PCIe Expansion DC-1100 Intel® Atom™ E3845 Quad Core Cincoze DC-1100

Manufacturer: Cincoze
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
DC-1100-R10 Компактний комп'ютер Cincoze DC-1100-R10, Intel® Atom™ E3845 Quad Core™ Compact Size Fanless Computer and 2x Mini-PCIe Expansions  38 326,6

DC-1100 is a high performance compact size 185mm (W) x 131mm (D) x 54mm (H) system designed with onboard Intel® Atom™ E3845 Quad Core 1.91GHz processor, rich I/O, an unique expansion capability, and supoorts wide range (9~48V) DC power input. It supports the latest USB 3.0 technology. With features including completely cable-less designed, special heat dissipation, anti-vibration, and industrial components selection, DC-1100 is a ruggedized system that can operate in a harsh environment. A build in voltage protection, reliable DC power input, and reverse power protection make DC-1100 a safety system for industrial applications.

  • Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
  • 1x DDR3L SO-DIMM Max. Up to 8 GB
  • Dual Independent Display from 1x DVI-I and 1x DisplayPort
  • 2x Intel® GbE Port Support Wake-on-LAN and PXE
  • 1x USB 3.0 & 3x USB2.0
  • 4x RS-232/422/485 Port with 5V/12V Power
  • 4x Isolated DI, 4x Isolated DO
  • 1x 2.5” SATA SSD/HDD Bay
  • 1x CFast Card and 1x SIM Card Socket
  • 9~48VDC Power Input Support AT/ATX Mode
  • 2x Mini-PCIe Slot for Wi-Fi, GSM or I/O Expansion
  • Universal I/O Bracket for Mini-PCIe Expansion
  • E-Mark (E13, No.10R-0514062) Certified

Additional information

Processor System Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz with AMI 64Mbit SPI BIOS.
Memory 1x 204-Pin DDR3L 1066 / 1333MHz SO-DIMM (un-buffered and non-ECC), max. up to 8 GB
Display

Dual Display

  • 1x DVI-I and 1x DisplayPort
  • 1x DVI-D and 1x VGA (with optional split cable)
  • 1x DisplayPort and 1x VGA (with DVI-I to VGA adapter)
Expansion
  • 2x Full-size Mini PCIe Socket for Wi-Fi / GSM / Expansion Module
  • 1x Universal I/O Bracket
Ethernet 2x Intel® I210 GbE LAN Port, Support Wake-on-LAN and PXE
Audio
  • Codec: Realtek ALC888S
  • 1x Mic-in and 1x Speak-out
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Storage
  • 1x 2.5" SATA SSD/HDD Bay
  • 1x External CFast Socket
  • 1x External SIM Card Socket
I/O Ports
  • 1x USB 3.0 Port
  • 3x USB 2.0 Port
  • 4x DB9 for COM1~4, (Support RS-232/422/485 with Auto Flow Control)
  • 2x Antenna Hole
  • 1x Power Switch
  • 1x AT/ATX Switch
Digital Input & Output
  • 4x Digital Input (Source Type) - Input Voltage (Dry Contact): Logic 0: Close to GND Logic 1: Open - Input Voltage: Logic 0: 3V max. Logic 1: 5V min. (DI to COM-)
  • 4x Digital Output - Supply Voltage: 9~30VDC - Sink Current: 200 mA Max. Per Channel
Power
  • Support AT, ATX Mode
  • 1x 3-pin Terminal Block Connector with Power Input 9~48VDC
  • 1x Optional AC/DC 12V/5A, 60W Power Adapter
Environment
  • Operating Temperature: .-25°C to 70°C (With extended temperature peripherals; Ambient with Air Flow by IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
  • Storage Temperature: -30°C to 85°C
  • Relative Humidity: 10%~95% (Non-Condensing)
  • Shock: 50 Grms (With SSD According to IEC 60068-2-27, Half Sine, 11ms Duration)
  • Vibration: Random: 5 Grms (With SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis)
Physical
  • Dimension (WxDxH): 185 x 131 x 56.5 mm
  • Weight: 1.58 kg
  • Construction: Extruded Aluminum with Heavy Duty Metal
  • Mounting: Wall, Optional Side / VESA / DIN-Rail Mounting
Operating System
  • Windows® 10
  • Windows® 8.1
  • Windows® 7
  • Linux: Supports by Project
Certification
  • CE
  • FCC Class A
  • E-Mark (E13, No.10R-0514062) Certified
