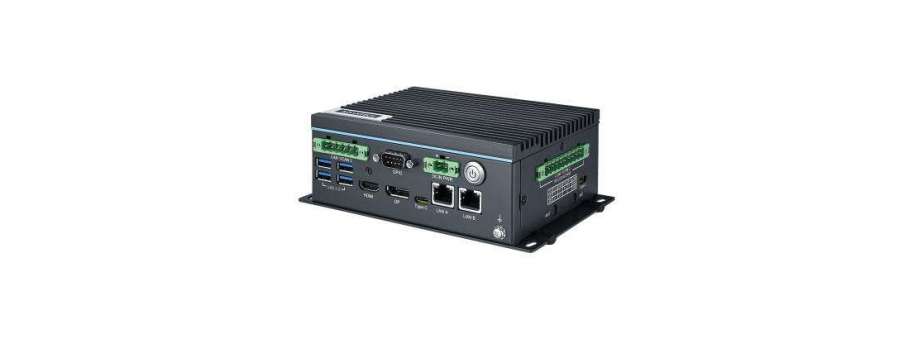

IoT Edge Computer with Intel® Core™ i Processor 12-13th Gen Intel® Core™ Advantech UNO-238 V2

Manufacturer: Advantech
Facebook Twitter Linkedin Mail

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-238-C3N1AE Компактний промисловий комп'ютер Advantech UNO-238,i3-1215UE,4xUSB 3.2 DP+HDMI,2xCOM,GPIO/CANBus  60 348,5
UNO-238-C5N1AE Компактний промисловий комп'ютер Advantech UNO-238,i5-1245UE,4xUSB 3.2 DP+HDMI,2xCOM,GPIO/CANBus  80 846,5
UNO-238-C7N1AE Компактний промисловий комп'ютер Advantech UNO-238,i7-1265UE,4xUSB 3.2 DP+HDMI,2xCOM,GPIO/CANBus  97 664,1
  • 12th Gen Intel® Core™ i Processor (up to 10 cores), 13th Gen Intel® U300E processor
  • Dual Channel DDR5-4800 up to 64GB
  • M.2 E-Key, B-Key, M-Key (supports NVMe) expansion for storage/wireless
  • Equipped with CANBus for reliable communication
  • DC-in terminal block for wiring flexibility
  • Supports multiple displays for ThinManager solution
  • Supports software APIs, DeviceOn

Additional information

General
Certification CE, FCC Class A, UL, CCC, BSMI
Dimensions (W x D x H) 150 x 107 x 60 mm (5.91 x 4.22 x 2.36 in)
Form Factor Small
Enclosure Aluminum housing
Mount Options Stand, DIN-rail (optional)
Weight (Net) 1.8 kg (3.9 lb)
Power Requirement 12-24VDC
Power Consumption 30-60W
OS Support Windows 10 2021 LTSC, Windows 11 LTSC, AdvLinux (Ubuntu 22.04)

System Hardware
BIOS AMI EFI (256 Mbit)
Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec)
TPM TPM 2.0
Processor
  • Intel® i7-1265UE (10 cores), 1.7 GHz (up to 4.7 GHz)
  • Intel® i5-1245UE (10 cores), 1.5 GHz (up to 4.4 GHz)
  • Intel® i3-1215UE (6 cores), 1.2 GHz (up to 4.4 GHz)
  • Intel® U300E, up to 4.30 GHz
Memory 2 slots for DDR5 4800 (up to 64 GB max.)
Graphics Engine Intel® Iris Xe® Graphics
Ethernet
  • LAN A: Intel® i226-LM, 10/100/1000/2500Mbps
  • LAN B: Intel® i219-LM, 10/100/1000Mbps
LED Indicators Power only

Storage
  • 1 x M.2 B-Key 2242 (PCIe x1/SATA, USB 2.0)
  • 1 x M.2 M-Key 2280 (PCIe x4, Gen 4 NVMe)
Expansion
  • 1 x M.2 B-Key 3042/3052 for LTE module (PCIe x1/SATA, USB 2.0)
  • 1 x M.2 E-Key 2230 for Wifi module (PCIe x1, USB 2.0)
SIM Slot Yes (1 x Nano size shared with M.2 B-key 3042)

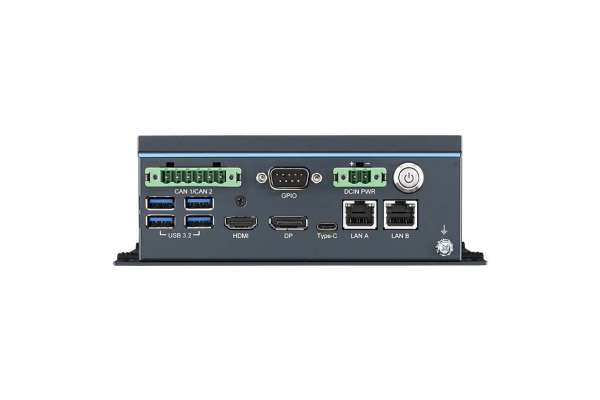

I/O
Serial Ports 2 x RS-232/422/485 (50 to 115.2 Kbps)
CANBus 2 x CAN2.0 (Combo)
LAN 2 x RJ-45
USB
  • - 4 x USB 3.2 (Gen2 10Gbps)
  • - 2 x USB Type-C (USB4 with USB Type-C, Bandwidth min 20Gbbps, max 40Gbps, with USB3.2, Display & PCIe)
Displays
  • 1 x HDMI 2.0 (up to 4096 x 2160 @60 Hz)
  • 1 x DP 1.4a (up to 4096 x 2304 @60 Hz)
Power Connector 1 x Terminal block
Others 1 x GPIO (Default 8DI)

Environment
Operating Temperature
  • 0 ~ 50 °C with 0.7 m/s airflow
  • -20 ~ 60 °C with 0.7 m/s airflow (With extended temperature peripherals, please refer to the optional memory list on page 3)
Storage Temperature -40 ~ 85 °C / -40 ~ 185 °F
Relative Humidity
  • Operating, 95% RH @ 40°C, non-condensing
  • Non-operating, 95%RH @ 60°C, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Protection Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis
