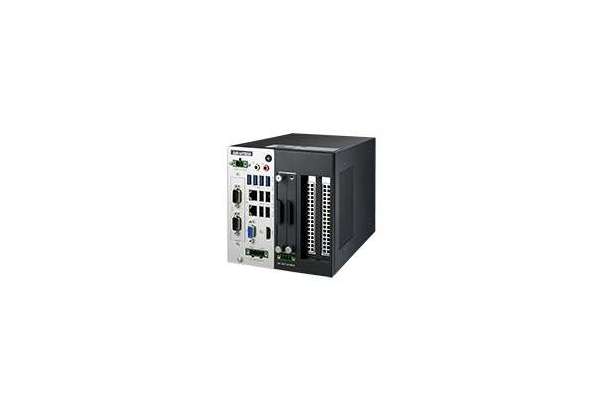

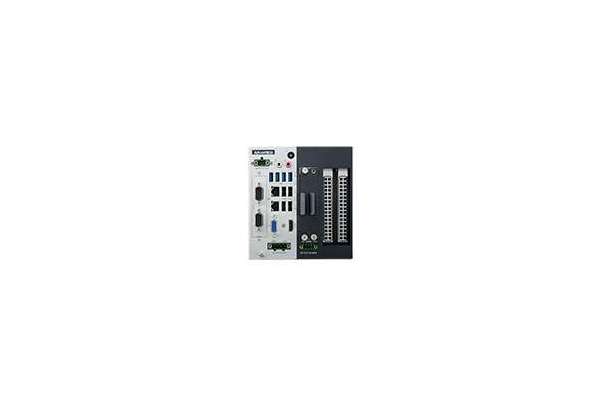

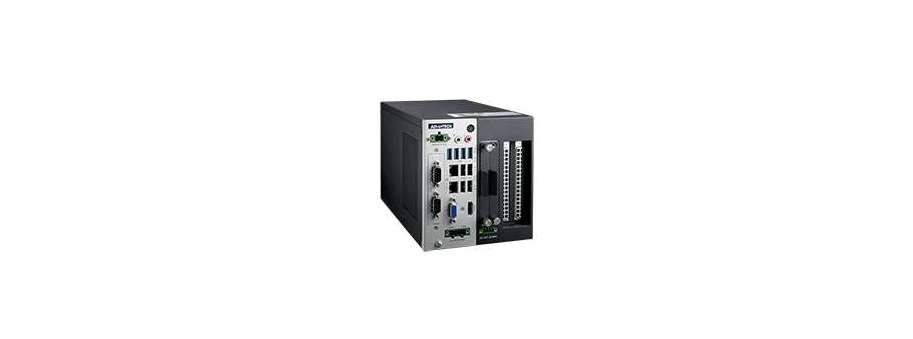

Compact Industrial Computer System with 6th/7th Gen Intel® Core™ i CPU Socket (LGA 1151) Advantech IPC-220
Price and avalability
| Partnumber | Description | Price VAT incl | Avalability |
|---|---|---|---|
| IPC-220-00A1 | IPC-220 Chassis BP_PCIex16, PCIex4 | 24 333,4 | |
| IPC-220-20A1 | 2PCIe, Compact IPC Chassis | 23 910,1 | |
| IPC-240-00A1 | IPC-240 Chassis BP_PCIex16, 2xPCIex4, PCIex1 | 25 312,7 | |
| IPC-240-01A1 | IPC-240 Chassis BP_PCIex16, PCIex4, 2xPCI | 26 121,8 | |
| IPC-240-20A1 | 4PCIe, Compact IPC Chassis | 24 792,3 | |
| IPC-240-21A1 | 2 PCIe/2 PCI, Compact IPC Chassis | 25 332,3 | |

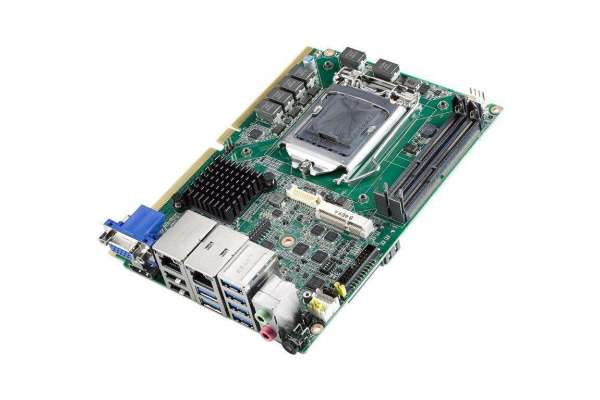

| PCE-2029-00A1 | PCE-2029, H110, VGA+HDMI, 4xUSB3.0 + 4xUSB2.0 | 25 380,4 | |
| PCE-2029-01A1 | H110, Compact IPC MB, w/o Audio | 23 887,4 | |
| PCE-2029-02A1 | PCE-2029,H110,VGA+HDMI,4xUSB3.0 + 4xUSB2.0,i211 | 29 032,6 | |
| PCE-2129-00A1 | PCE-2129,Q170,VGA+HDMI,6xUSB3.0+2xUSB2.0 | 31 216,9 | |
| PCE-2129-01A1 | Q170, Compact IPC MB, w/o Audio | 31 216,9 | |
| PCE-2129-02A1 | PCE-2129,Q170, VGA+HDMI, 6xUSB3.0+2xUSB2.0, i211 | 39 957,4 |
Compact Industrial Computer System with 6th/7th Gen Intel® Core™ i CPU Socket (LGA 1151)
- Intel® 6th/7th Gen Core™ i CPU socket-type (LGA1151) with Intel® Q170/H110 chipset
- 3 x independent displays (third display output via optional cable)
- 2 x GigaLAN and 6 x USB 3.0
- 2 x RS-232/422/485 and 2 x RS232 serial ports
- 2 x 2.5" HDD/SSD, and 1 x mSATA
- 19 ~ 24 VDC input power range
- Support Power Out 12V/5V - 2A
- Supports Advantech i-Door
- Versatile LED for system status and alarm
- Supports Advantech SUSIAccess and embedded software APIs
- Chassis IPC-220 compatible with motherboard PCE-2029 and PCE-2129
Additional information
| Part Number | IPC-220-00A1 | PCE-2029-00A1 |
Expansion Slot |
||
| Mini-PCIE | 1 x PCIe x 16, 1 x PCIe x 4 | 1 x miniPCIe/mSATA |
Front I/O Interface |
||
| USB2.0 | - | 4 + 2(internal) |
| USB3.0 | - | 4 |
| Audio Jack | - | 1xLine-out; 1x Mic-in |
| Serial Port | - | 2xRS-232/422/485; 2xRS-232 |
Environment |
||
| Operating Shock | With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration | - |
| Operating Vibration | 1Grms (with HDD), 3Grms (with SSD) | - |
Ethernet |
||
| Interface | - | 10/100/1000 Mbps |
| Controller | - | LAN1: Intel I219V, LAN2 : Intel I210AT |
Graphics |
||
| Graphic Interface | - | HDMI + VGA |
| Chipset Integrated | - | Intel HD Graphic 530/510, support DirectX12 |
Miscellaneous |
||
| Control | - | Power Switch |
Physical Characteristics |
||
| Dimensions (W x H x D) | 140 x 150 x 231 (mm) | - |
| Weight | 3.0kg(6.61lbs) | - |
Power |
||
| Power Input | - | 19~24VDC |
| Power Type | - | ATX/AT |
Storage |
||
| CFast | - | - |
| HDD | 2 x 2.5" SSD/HDD Easy-Swap Bay | - |
WatchDog Timer |
||
| Interval | - | Programmable 1 ~ 255 sec/min |
| Output | - | System Reset |
Memory |
||
| Max. Capacity | - | 32GB (16GB per DIMM) |
| Socket | - | 2 x 260-pin SO-DIMM |
| Technology | - | DDR4 2133/2400 MHz (without ECC) |
Processor System |
||
| CPU | - | Intel Core i3/i5/i7(LGA1151) |
| Chipset | - | Intel H110 |
| Core Number | - |
4 / 2 core |
| BIOS | - | AMI 128 Mbit SPI Flash |
| Frequency | - | Based on Intel CPU spec |
| L3 Cache | - | 8 MB/6 MB/4 MB/3 MB/ |
Cooling |
||

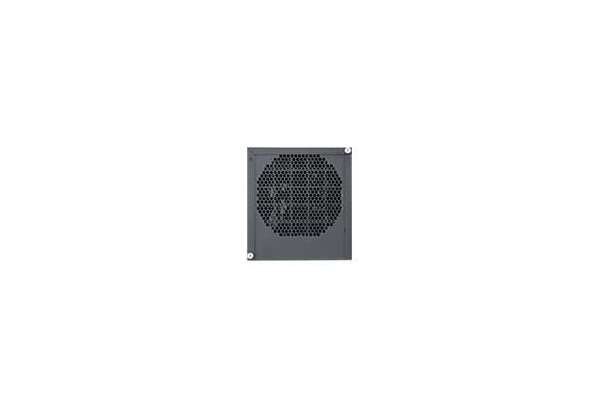

| Air Filter | Yes | - |
