2xLAN Din-Rail Mount Extended T range HDMI Input 12V DC Input 24V DC Input Wide range Intel Atom LAN Passive Cooling

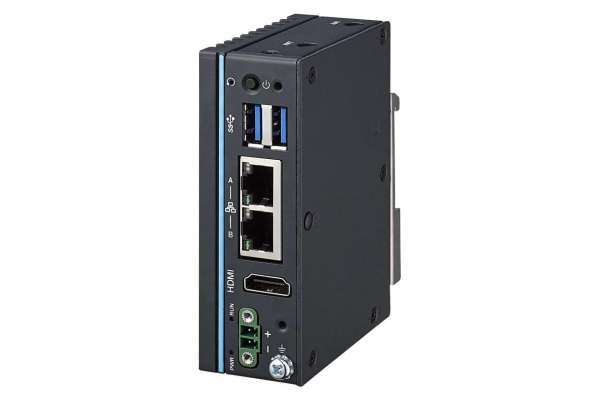

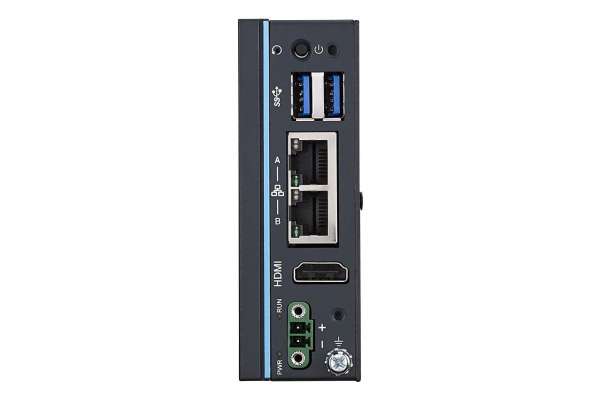

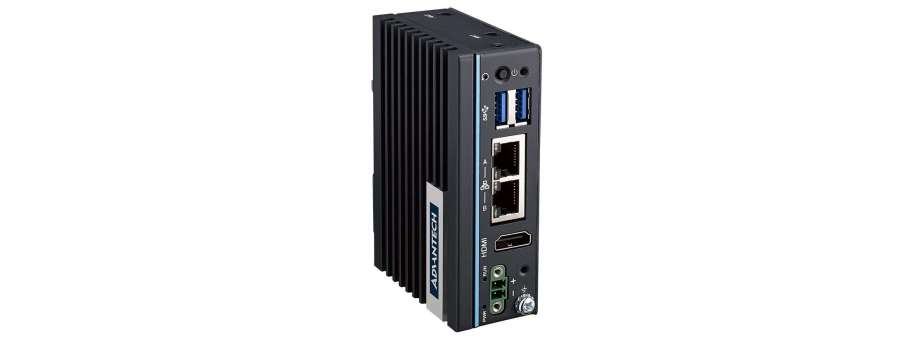

Compact, Fanless Edge PC with Intel® Atom® Processor, 64GB eMMC, 2 x LAN, 2 x USB, and 1 x HDMI Advantech UNO-127

Price and avalability

Partnumber Description Price VAT incl Avalability
UNO-127-E22BA Компактний промисловий комп'ютер Advantech UNO-127 Intel ATOM X6413E, 1.5GHz, 4G DDR4, 2LAN, 1HDMI  29 873,2
UNO-127-E23BA Компактний промисловий комп'ютер Advantech UNO-127 Intel ATOM X6413E, 1.5GHz, 8G DDR4, 2LAN, 2USB  34 383,8

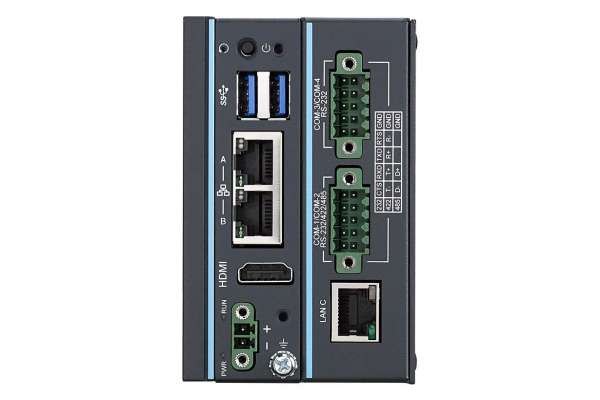

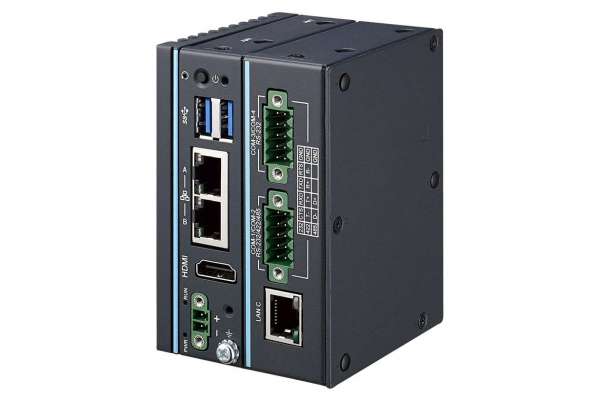

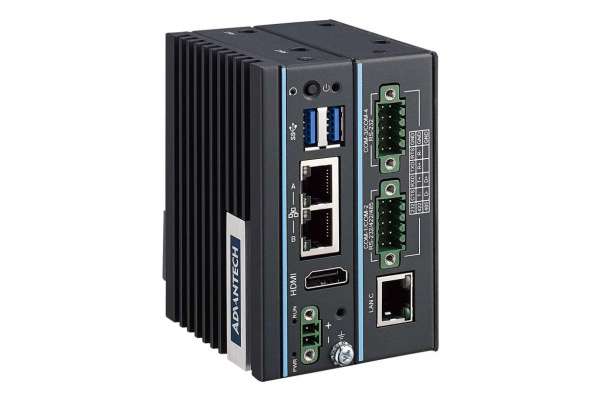

Advantech’s UNO-100 series of integrated DIN-rail controllers feature a modular design for flexible configuration according to specific usage requirements. The UNO-127 model is equipped with an Intel® Atom® x6413E processor, 4 GB or 8 GB DDR4 RAM, 64 GB eMMC storage, 2 x LAN, 2 x USB, and 1 x HDMI, as well as 1 x full-size mini PCIe for expansion. IEC 61010-1 certified for industrial use, UNO-127 can also be equipped with an optional second-stack extension kit that supports additional 4 x COM ports and 1 x M.2 B key for extending the system I/O and wireless connectivity capabilities

  • Intel® Atom® quad-core x6413E processor
  • 4 GB/8 GB DDR4 onboard memory
  • Compact, robust, fanless, cable-free design with high stability
  • Optimized I/O with 2 x GbE, 2 x USB, 1 x HDMI
  • Full-size mPCIe port onboard for flexible expansion
  • Built-in TPM2.0 for hardware-based security
  • Isolated grounding system
  • IEC 61010 certified for industrial applications

Additional information

General

Certification CE, FCC, UL, CCC, BSMI
Dimensions (W x D x H) 33.5 x 70 x 100 mm/1.3 x 2.8 x 3.9 in
Form Factor Pocket sized
Enclosure Aluminum
Mount Options DIN-rail
Net Weight 0.5 kg/1.1 lb
Power Requirement 10 ~ 30VDC
Power Consumption 15.8W (typical), 35W (max.)
Operating System Windows 10 LTSC, Windows 11, Ubuntu 20.04, Ubuntu Core 20
Software Compatibility Canonical Ubuntu Core 20 certification WISE-DeviceOn WISE IoT Edge

System Hardware

BIOS AMI EFI X64
Watchdog Timer Programmable timer with 255 intervals (1 ~ 255 sec)
Processor Intel® Atom® x6413E quad-core, 1.5 GHz
Memory 4 GB/8 GB DDR4 2666 MHz onboard
Graphics Engine Intel® UHD Graphics
Ethernet 2 x Intel i210IT
LED Indicators Power, Run (programmable), LAN (Active, Status)
Storage 64 GB eMMC onboard (up to 256 GB upon request); optional mSATA shared with mPCIe slot
Expansion 1 x Full-size mPCIe slot (SATA/PCIe/USB2.0 signal)
Hardware Security TPM2.0 (Library Reversion 1.38)

I/O Interfaces

LAN 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
USB 2 x USB 3.2 (Gen 1)
Display Output 1 x HDMI (1920 x 1080 @60Hz)
Power Connector 1 x 2-pin terminal block

Environment

Operating Temperature -20 ~ 60 °C/-4 ~ 140 °F @ 5 ~ 85% RH with 0.7 m/s
Storage Temperature -40 ~ 85 °C/-40 ~ 185 °F
Relative Humidity 10 ~ 95% RH @ 40 °C/104 °F, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Vibration Resistance Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA)
IP Rating IP30
